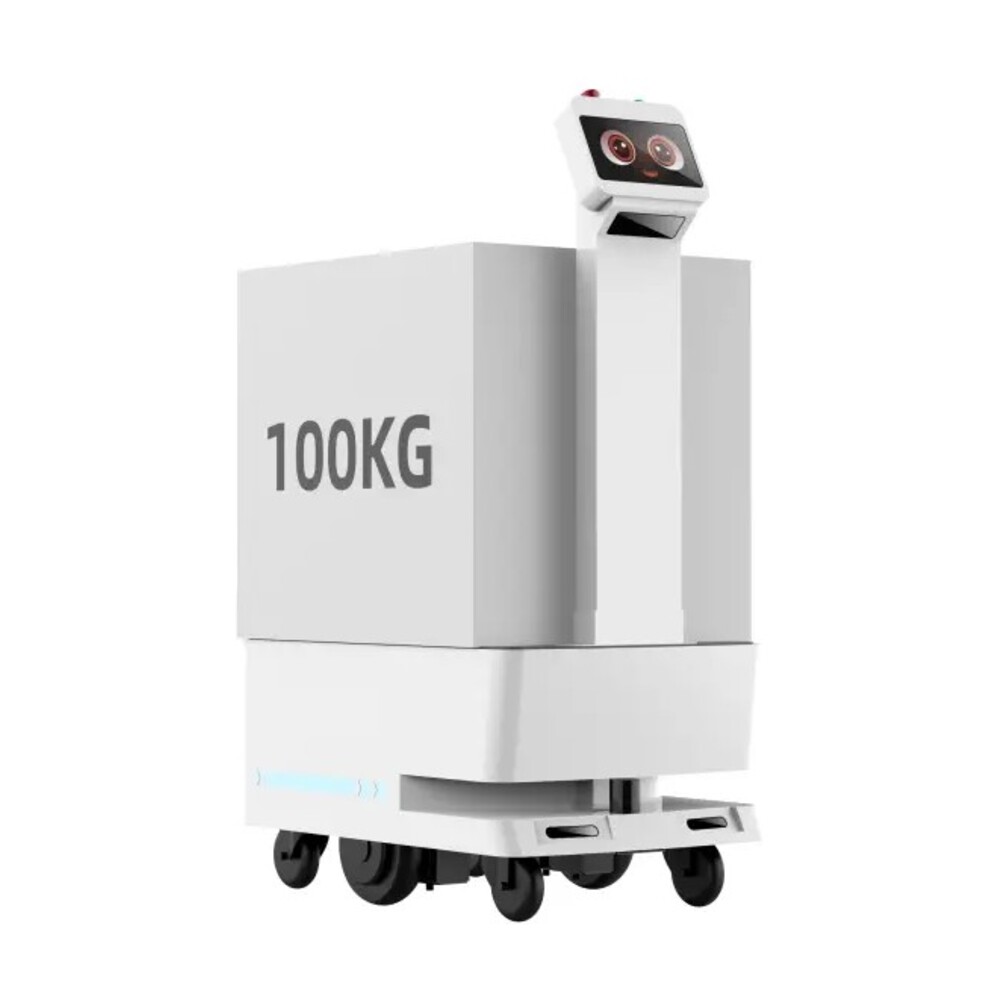

ATEAGO S4P ROBOTIKS Logistics Delivery Robot with 100KG Load Capacity for Transporting

ATEAGO ROBOTIKS S4P ROS AI Robot Carrier 100 KG Payload AGV Logistics Robot Chassis Industrial Transport Robot Base Mobile Delivery Robot Porter Warehouse Dispatching Robot AMR

ATEAGO ROBOTIKS S4P ROS AI Robot Carrier 100 KG Payload AGV Logistics Robot Chassis Industrial Transport Robot Base Mobile Delivery Robot Porter Warehouse Dispatching Robot AMR is equipped with multiple functions such as visual positioning, indoor navigation, and intelligent obstacle avoidance. It is composed of core hardware, including lidar sensors, depth cameras and modular positioning and navigation systems. It is further enhanced by the use of Laser SLAM and V SLAM.

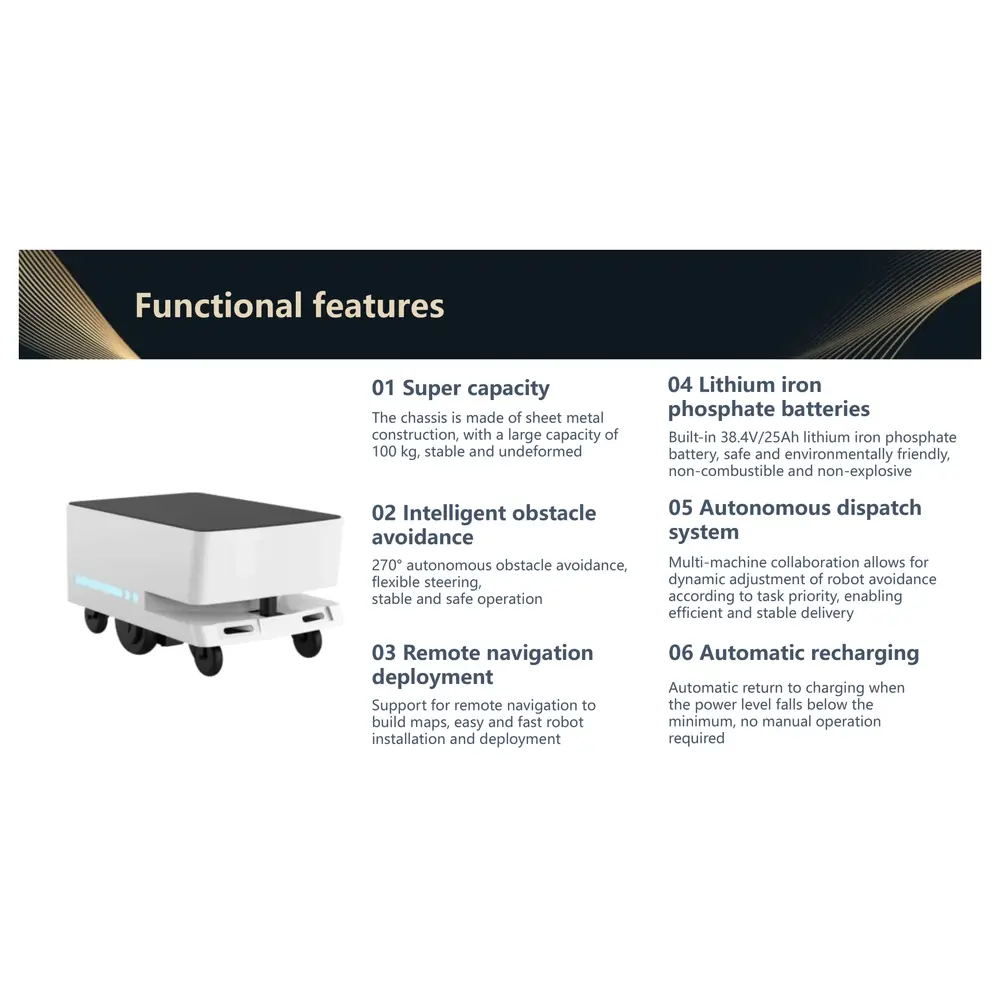

Super capacity

The chassis is made of sheet metal construction, with a large capacity of 100 kg, stable and undeformed

Intelligent obstacle avoidance

270 degrees autonomous obstacle avoidance, flexible steering, stable and safe operation

Remote navigation deployment

Support for remote navigation to build maps, easy and fast robot installation and deployment

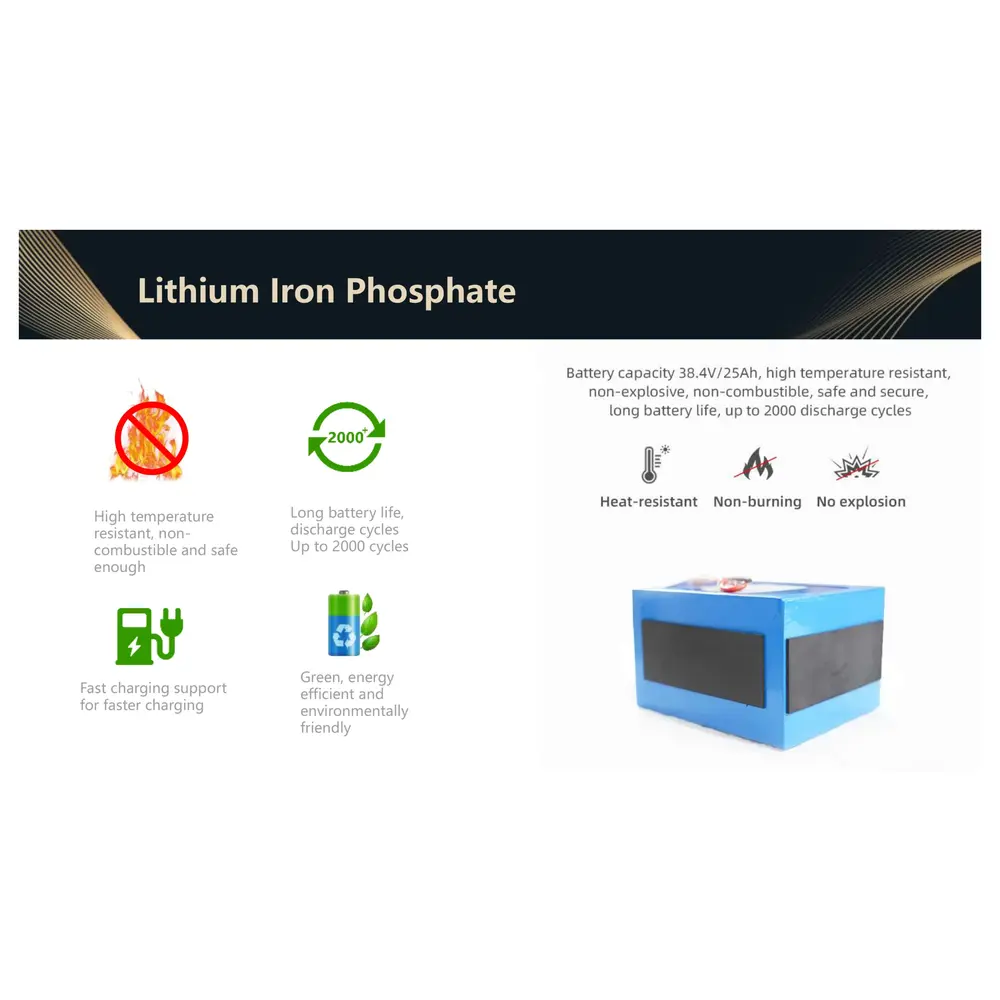

Lithium iron phosphate batteries

Built-in 38.4V/25Ah lithium iron phosphate battery, safe and environmentally friendly, non-combustible and non-explosive

Autonomous dispatch system

Multi-machine collaboration allows for dynamic adjustment of robot avoidance according to task priority, enabling efficient and stable delivery

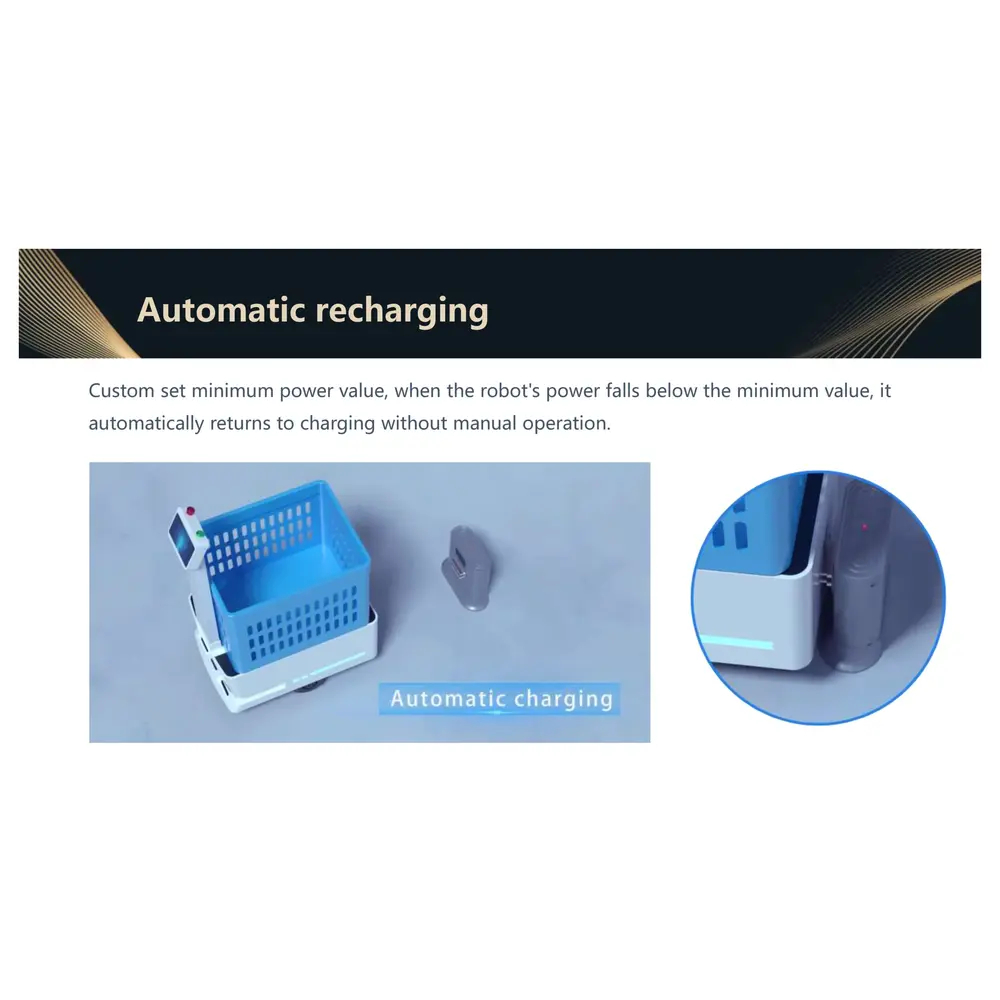

Automatic recharging

Automatic return to charging when the power level falls below the minimum, no manual operation required.

Autonomous lift rides

Supports most lifts on the market, build maps for multiple floors, take the lift independently, controls access control and automatically switch maps to complete cross-floor delivery tasks. (Optional function)

Multi-machine collaboration

The built-in scheduling system, with multi-machine collaboration, can dynamically adjust robot avoidance according to task priority to achieve efficient and safe, stable and reliable delivery efficiency.

Active obstacle avoidance

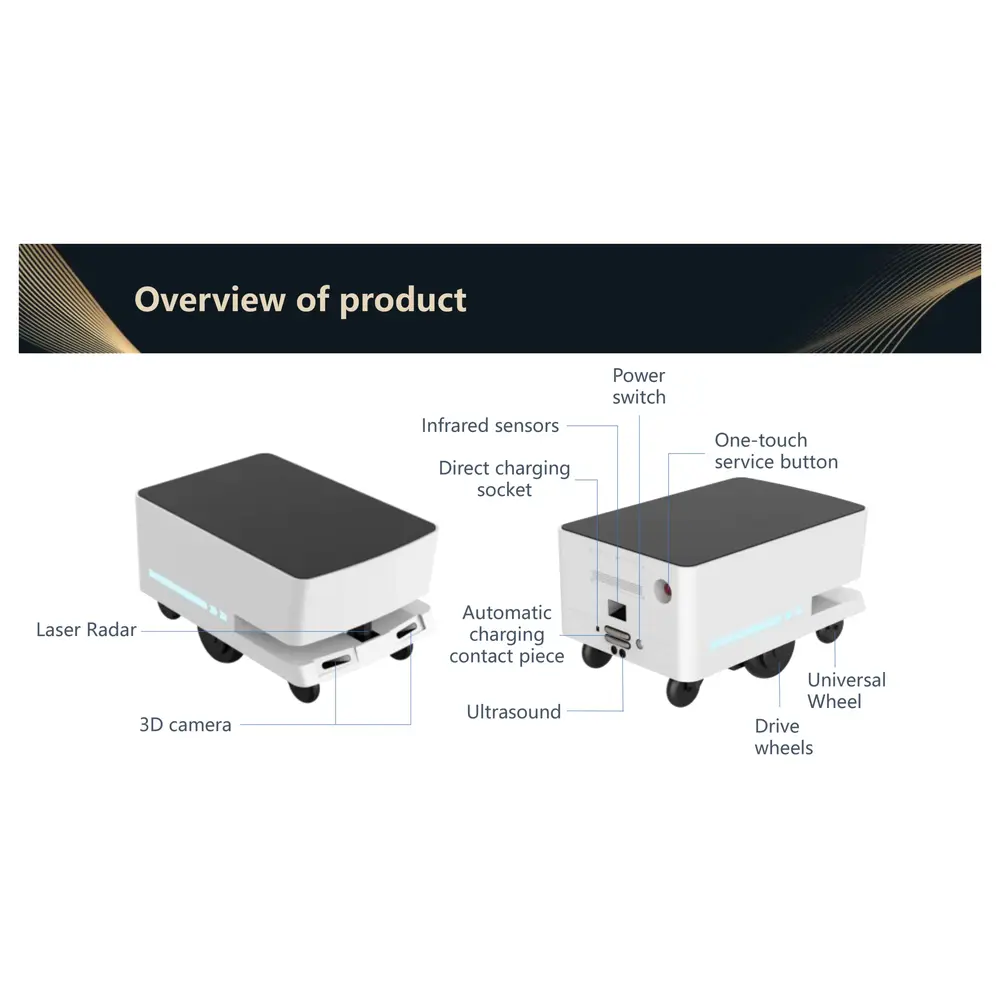

Equipped with ATEAGO self-developed SLAM synchronous positioning map building system, high-precision navigation and positioning, Laser radar, dual 3D cameras, all-round perception of the surrounding environment, efficient and stable operation.

Single line Laser

Detection distance 25m, laser wavelength 905nm, working area 270 degrees

Dual 3D cameras

Vertical angle 63 degrees, horizontal angle 79 degrees

Extensive interfaces and scalability

The SDK is open to all users, providing a rich API interface with great scalability, and for customers with certain development capabilities, customized development can be achieved according to the needs of scenario applications, meeting the diverse needs of the market for mobile robot chassis.

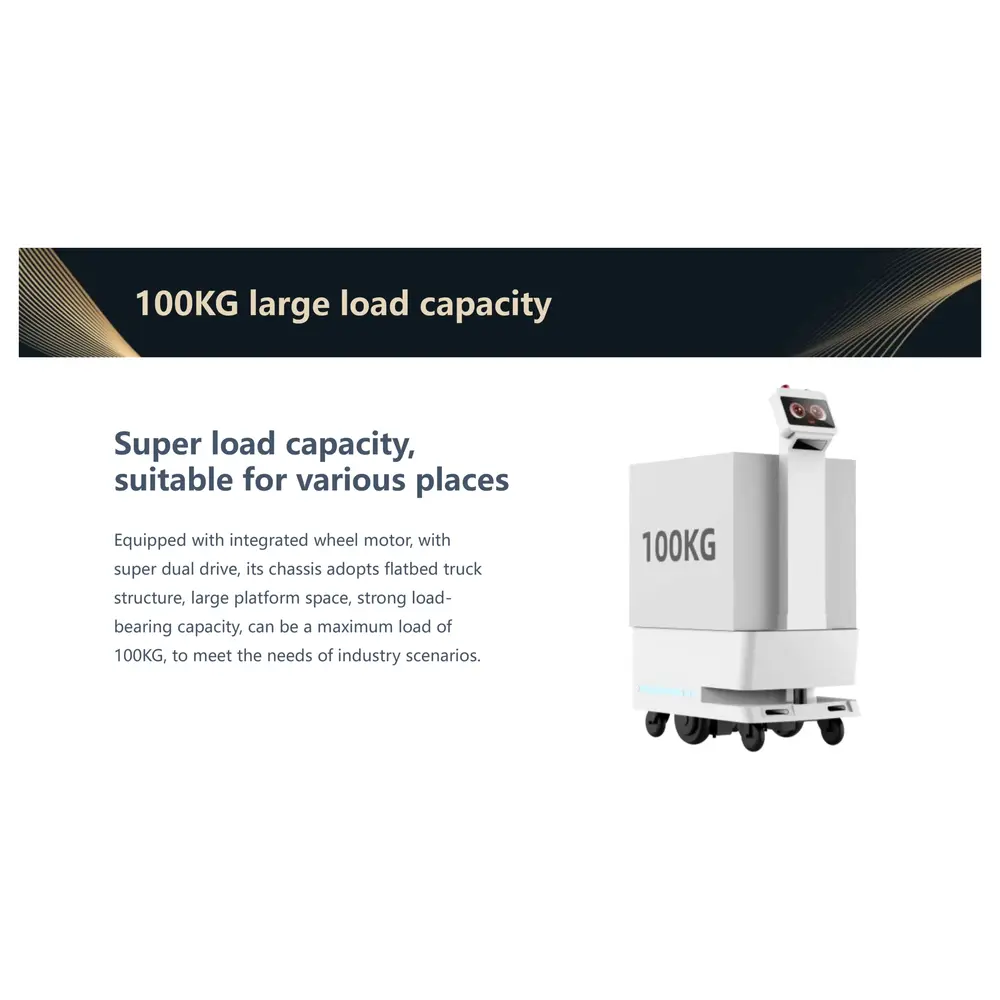

Super load capacity suitable for various places

Equipped with integrated wheel motor, with super dual drive, its chassis adopts flatbed truck structure, large platform space, strong load-bearing capacity, can be a maximum load of 100KG, to meet the needs of industry scenarios.
