- Series: 800
- Color: Panel Ready
- Width: 22"
- Height: 69 3/4"
- Depth: 21 1/2"
- Type: Built-In
- Style: Bottom Freezer
- Wi-Fi: Yes
- Total Capacity (cu. ft.): 8.3
- Counter-Depth: Yes
- Hinge Side: Right Hinge
- Energy Star: Yes
- Voltage: 120
- Amps: 10
- Cutout Width: 22 1/16"
- Cutout Height: 70"
- Cutout Depth: 22 1/16"
Bosch B09IB91NSP 800 Series 24 inch Smart Built-In Bottom Freezer Refrigerator with 8.3 cu. ft. Total Capacity, VitaFreshPro Drawer and LED Lighting in Panel Ready
Availability: In Stock
Availability: In Stock
Availability: In Stock
- Series: 800
- Color: Panel Ready
- Width: 22"
- Height: 69 3/4"
- Depth: 21 1/2"
- Type: Built-In
- Style: Bottom Freezer
- Wi-Fi: Yes
- Total Capacity (cu. ft.): 8.3
- Counter-Depth: Yes
- Hinge Side: Right Hinge
- Energy Star: Yes
- Voltage: 120
- Amps: 10
- Cutout Width: 22 1/16"
- Cutout Height: 70"
- Cutout Depth: 22 1/16"
24″ Built-In Custom Panel Bottom Freezer
The 24″ Custom Panel Bottom Freezer, with Home Connect, provides smart solutions and the optimal freshness environment for small kitchen spaces.

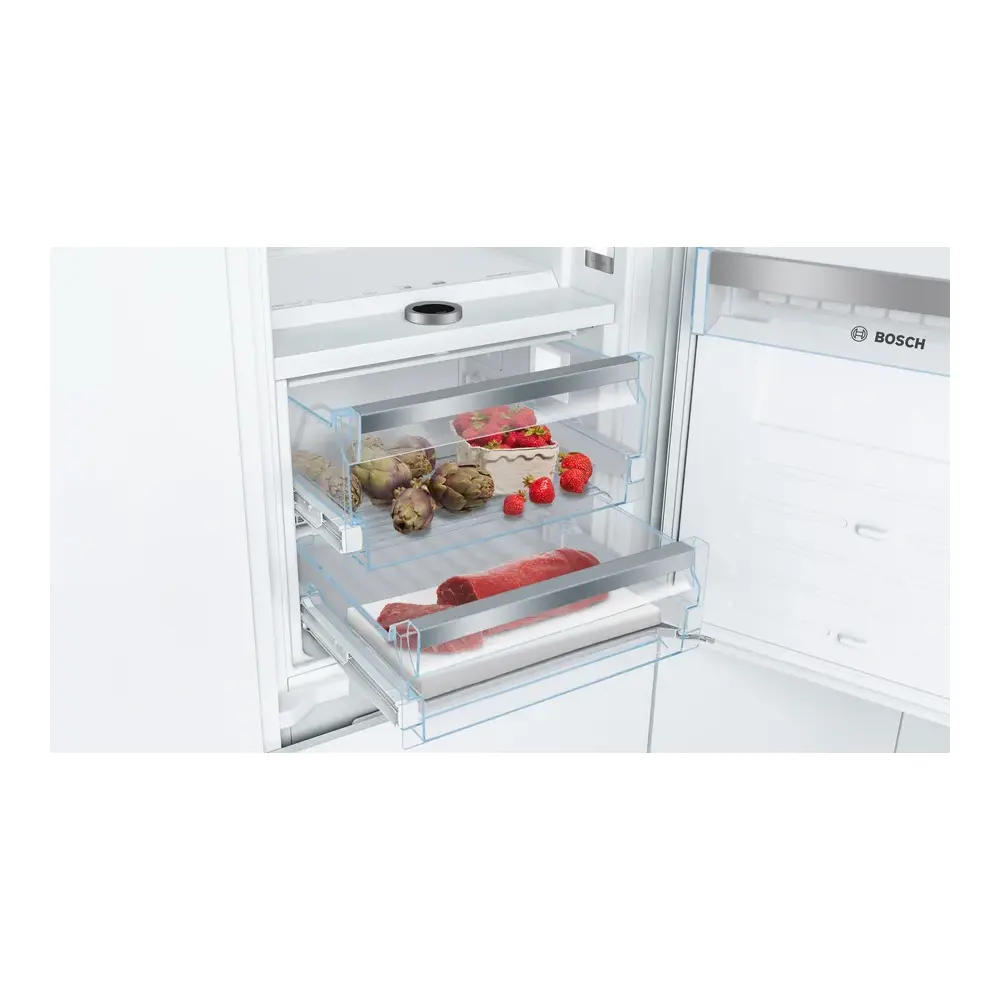

Store your food in ideal conditions with VitaFreshPro™
An industry first, VitaFreshPro™ automatically balances BOTH temperature and humidity levels based on the food setting. From produce to meats to cheeses, pre-programmed settings calibrate the optimal environment, removing the guesswork from food storage.
ENERGY STAR® qualified
ENERGY STAR® qualified for energy efficiency.
A convenient Door Ajar Notification
Receive a notification on your phone should you accidentally leave your refrigerator door open for an extended time.
Your friendly fridge reminder.
Accidentally leaving your fridge open is not only annoying, but very costly. Home Connect helps you avoid unnecessarily high energy bills and spoiling the contents of your fridge. If you wish, push notifications can be sent from your fridge directly to your mobile device, conveniently letting you know if the fridge door has been left open. Finally, a fridge that looks after both you and your food perfectly.
LED Lighting
Clearly illuminates the contents of your unit in style.
Specifications | |
| Brand | Bosch |
| Series | 800 |
Appearance | |
| Color | Panel Ready |
| Color Family | Panel Ready |
| Glass Door | No |
| Hinge Side | Right Hinge |
| Size | Apartment |
| Number of Doors | 2 |

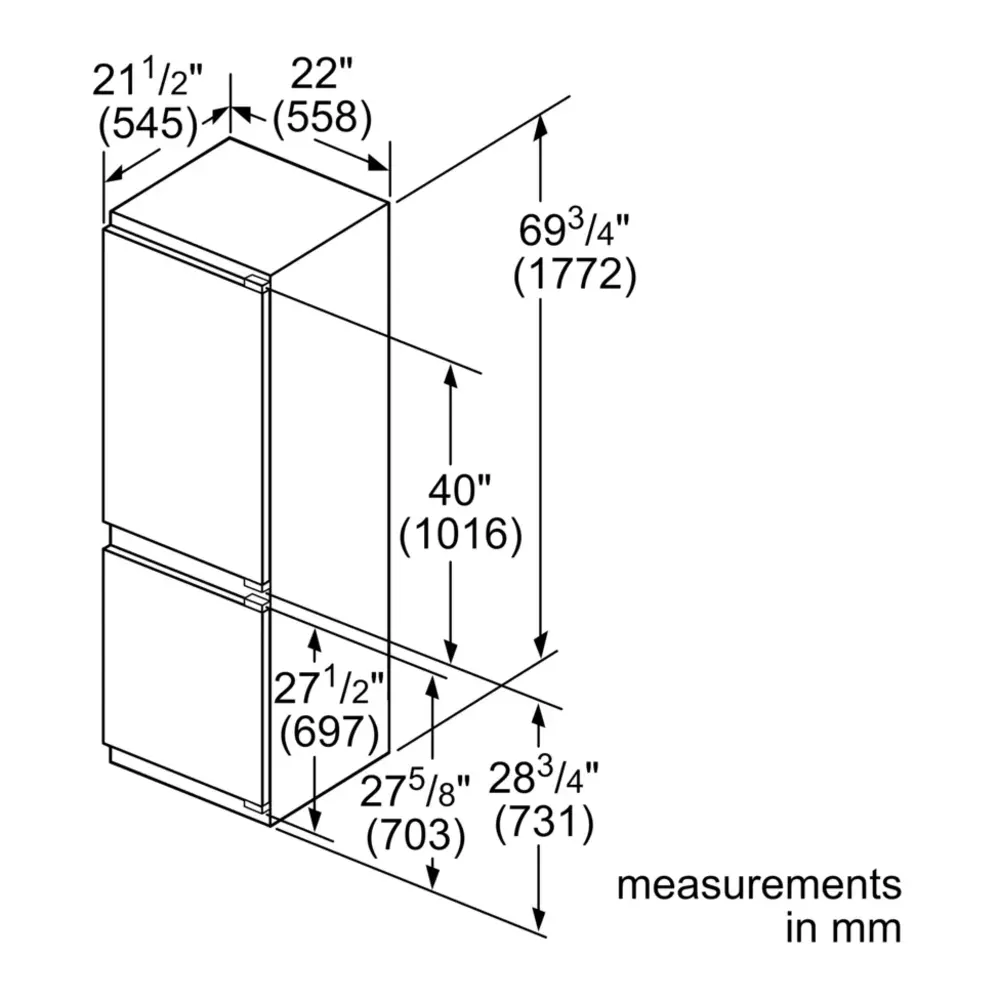

Dimensions | |
| Exterior Width | 24" |
| Width | 22" |
| Depth | 21 1/2" |
| Height | 69 3/4" |
| Counter-Depth | Yes |
| Cutout Width | 22 1/16" |
| Cutout Height | 70" |
| Cutout Depth | 22 1/16" |
Style | |
| Style | Bottom Freezer |
| Type | Built-In |
Capacity | |
| Total Capacity (cu. ft.) | 8.3 |
Smart Features | |
| Smart Appliance | Yes |
| Wi-Fi | Yes |
| Works with Brand Specific App | Yes |
Technical Details | |
| Voltage | 120 |
| Amps | 10 |
| Flush Installation | Yes |
Certifications | |
| ADA Compliant | No |
| Energy Star | Yes |
Features | |
| Ice Maker | No |
| Water Dispenser | No |
| Ice Dispenser | No |
| Type of Shelves | Glass |
| Number of Shelves | 2 |
| Split Shelves | No |
| LED Lighting | Yes |
| Freezer Shelves | None |
| Door Alarm | Yes |
| Defrost Type | Automatic |
| Interior Color | White |
| Freezer Type | Drawers |
| Convertible Freezer/Refrigerator | No |
| Accepts Custom Panels | Yes |
| Approved for Outdoor Use | No |
| Door Lock | No |
| Crisper | Yes |
| Remote Diagnostics | Yes |
| Remote Monitoring | Yes |
| Reversible Door | Yes |
| Brand | Bosch |
|---|---|
| Series | 800 |
|
Appearance |
|
| Color | Panel Ready |
| Color Family | Panel Ready |
| Glass Door | No |
| Hinge Side | Right Hinge |
| Size | Apartment |
| Number of Doors | 2 |
|
Dimensions |
|
| Exterior Width | 24" |
| Width | 22" |
| Depth | 21 1/2" |
| Height | 69 3/4" |
| Counter-Depth | Yes |
| Cutout Width | 22 1/16" |
| Cutout Height | 70" |
| Cutout Depth | 22 1/16" |
|
Style |
|
| Style | Bottom Freezer |
| Type | Built-In |
|
Capacity |
|
| Total Capacity (cu. ft.) | 8.3 |
|
Smart Features |
|
| Smart Appliance | Yes |
| Wi-Fi | Yes |
| Works with Brand Specific App | Yes |
|
Technical Details |
|
| Voltage | 120 |
| Amps | 10 |
| Flush Installation | Yes |
|
Certifications |
|
| ADA Compliant | No |
| Energy Star | Yes |
|
Features |
|
| Ice Maker | No |
| Water Dispenser | No |
| Ice Dispenser | No |
| Type of Shelves | Glass |
| Number of Shelves | 2 |
| Split Shelves | No |
| LED Lighting | Yes |
| Freezer Shelves | None |
| Door Alarm | Yes |
| Defrost Type | Automatic |
| Interior Color | White |
| Freezer Type | Drawers |
| Convertible Freezer/Refrigerator | No |
| Accepts Custom Panels | Yes |
| Approved for Outdoor Use | No |
| Door Lock | No |
| Crisper | Yes |
| Remote Diagnostics | Yes |
| Remote Monitoring | Yes |
| Reversible Door | Yes |
