- Series: 500
- Color: Black
- Width: 31"
- Height: 4"
- Depth: 21 1/4"
- Type: Cooktop
- Fuel Type: Electric
- Burner/Element Type: Radiant Element
- Number of Burners/Elements: 4
- Highest Element Output: 2500 Watts
- ADA Compliant: Yes
- Voltage: 240
- Amps: 30

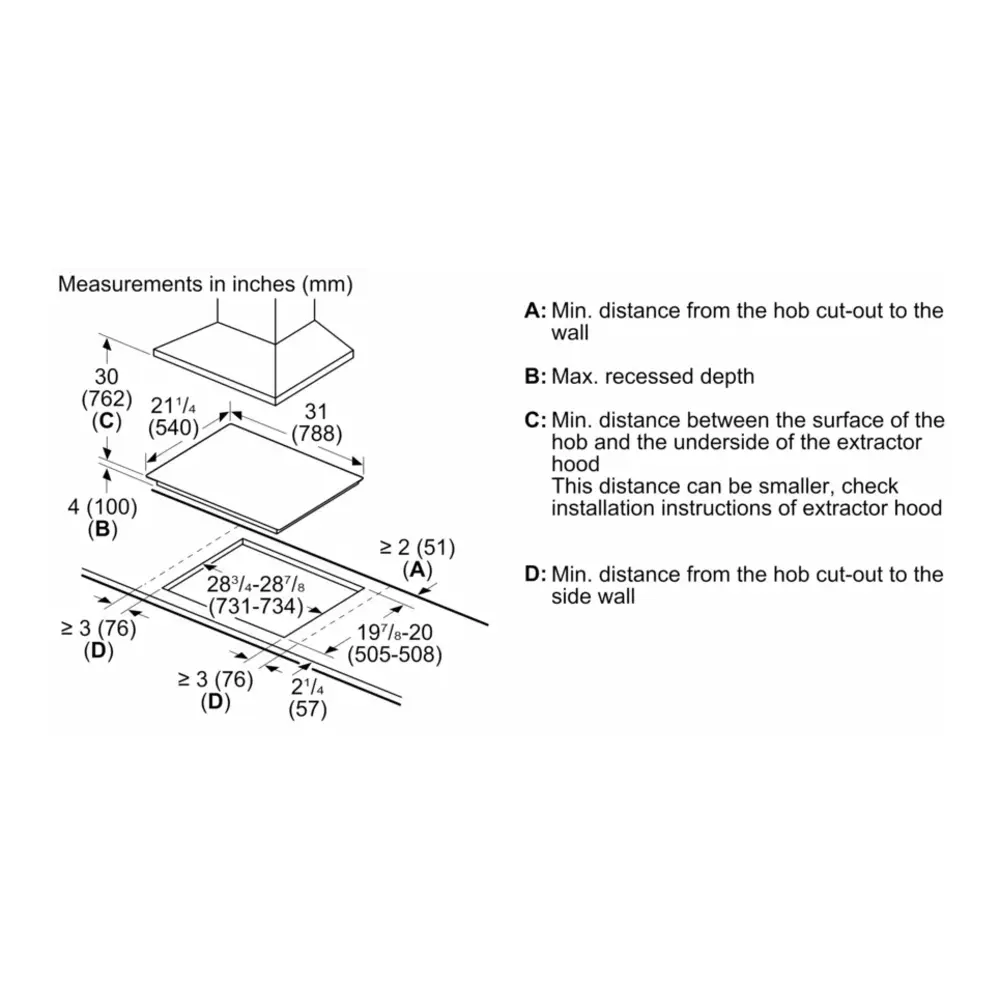

- Cutout Width: 28 7/8"
- Cutout Height: 4"
- Cutout Depth: 20"

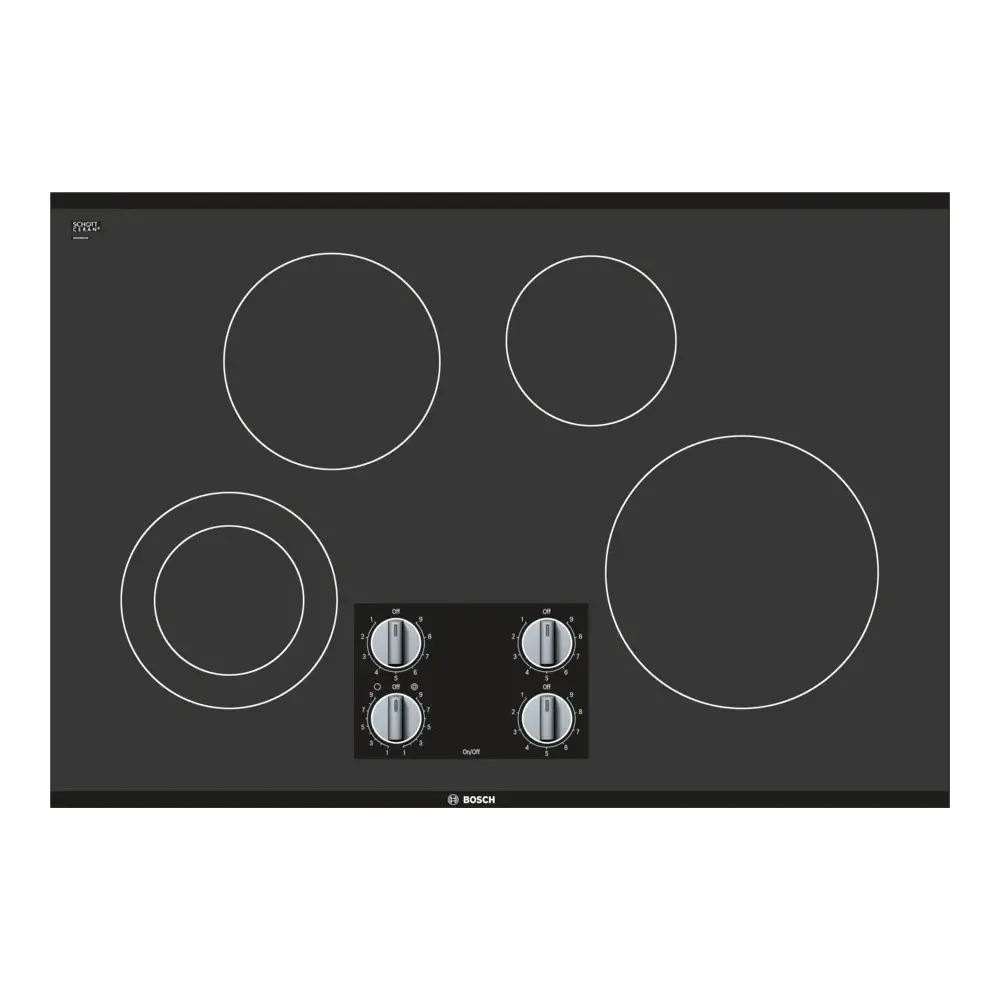

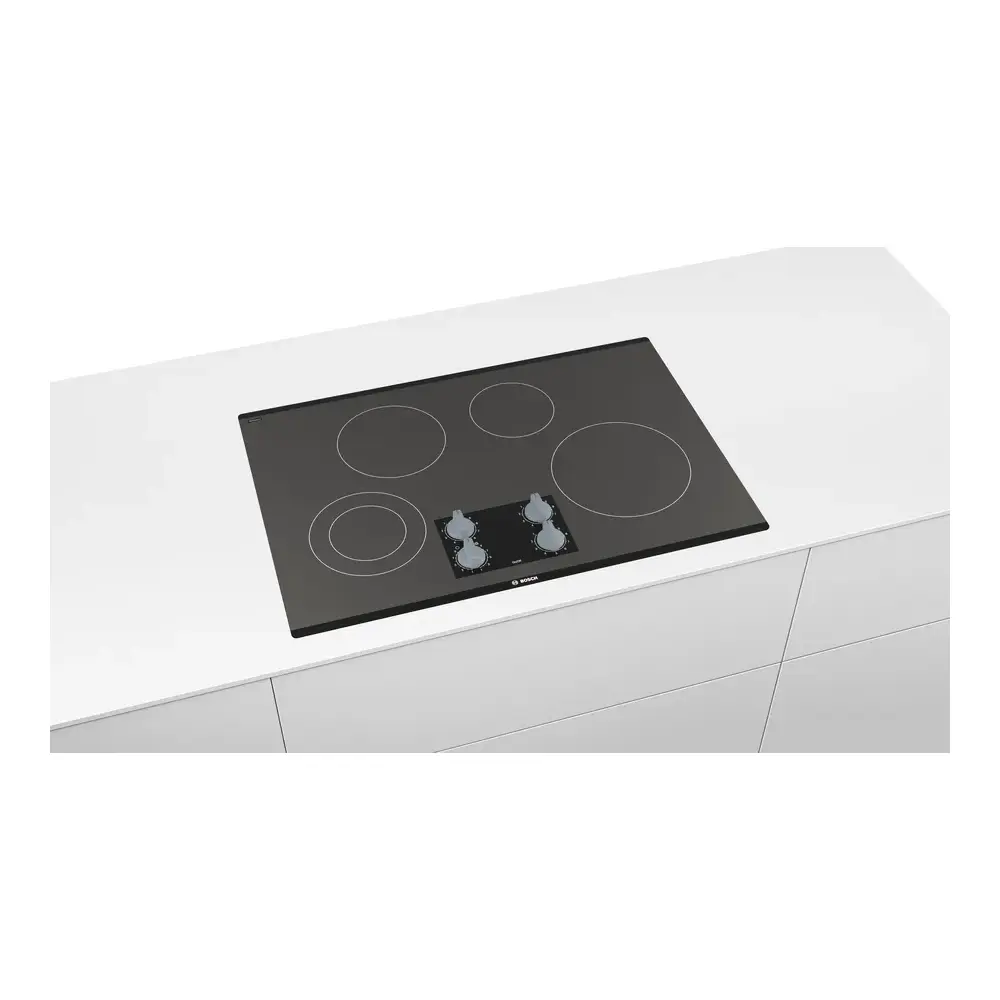

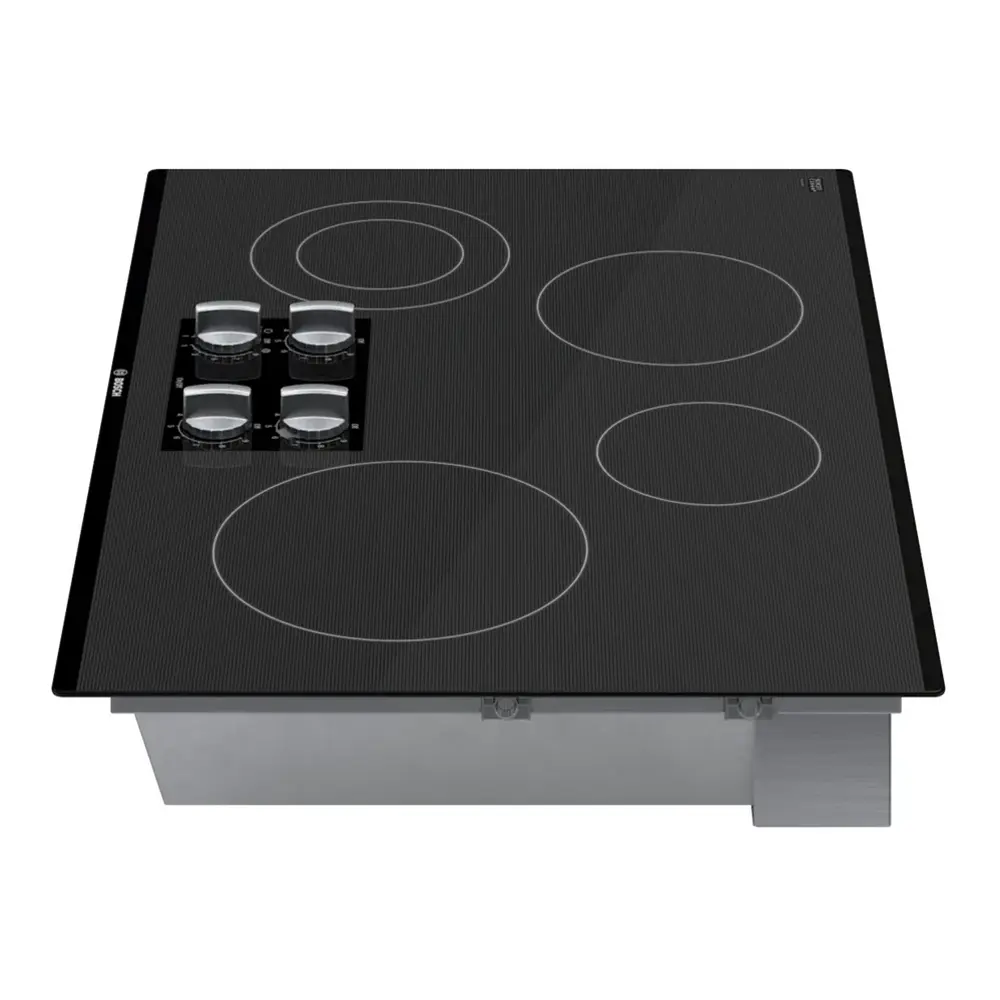

Bosch NEM5066UC 500 Series 30 inch Electric Cooktop with Heat Indicator, 4 Elements, Temperature Controls for Precision, ADA Compliant and Smoothtop Design in Black
Availability: In Stock (Low)
Availability: In Stock (Low)
Availability: In Stock (Low)
- Series: 500
- Color: Black
- Width: 31"
- Height: 4"
- Depth: 21 1/4"
- Type: Cooktop
- Fuel Type: Electric
- Burner/Element Type: Radiant Element
- Number of Burners/Elements: 4
- Highest Element Output: 2500 Watts
- ADA Compliant: Yes
- Voltage: 240
- Amps: 30
- Cutout Width: 28 7/8"
- Cutout Height: 4"
- Cutout Depth: 20"
Features:
Select your ideal temperature
The precise temperature selection results in consistent, perfect results whether you’re searing a steak, grilling salmon or veggies, or delicately melting chocolate.
Know when the surface is hot
For added safety, the control panel also has a heat indicator to let you know which sections are still hot after you finish cooking. Once the surface reaches a safe temperature, the indicator turns off.
Accomodate different pan sizes
The Dual Cooking Element offers different sized elements to accomodate different sized pots and pans.
Design

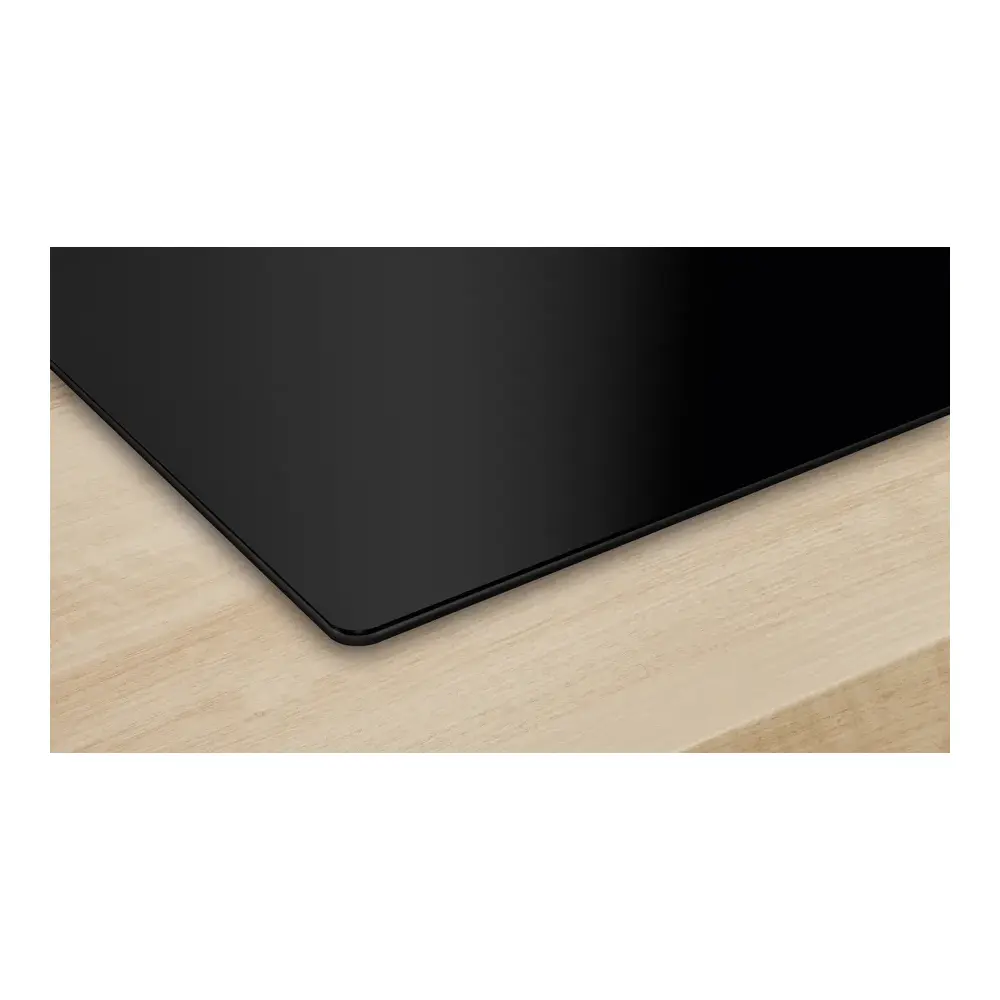

- Black-glass Seemless Design
- Cooktop Design Coordinates with Bosch Ovens and Ventilation
Performance
- Infinite Temperature Controls for Precision Cooking
- Powerful 2,500W Right-Front Burner for Faster Boil Times
Safety
- Two-level Heat Indicator – Warns if Cooktop is Warm or Hot
- Dual Elements Offer the Capability to use Multiple Pan Sizes
Additional Features
- Precise Temperature Control For Better Cooking Results
- Ceramic-Glass Surface Makes Cooking and Cleaning Especially Easy
- Residual Heat Indicator – Warns if Cooktop is Warm or Hot
- Push-to-Turn Control Knobs
Element Configuration
- Power of Front Left Heating Element : 1,700 W / 700 W
- Power of Back Left Heating Element : 1,800 W
- Power of Back Right Heating Element : 1,200 W
- Power of Front Right Heating Element : 2,500 W
Element Size
- Dimension of Front Left Heating Element : 7″ / 5″
- Dimension of Back Left Heating Element : 7″
- Dimension of Back Right Heating Element : 6″
- Dimension of Front Right Heating Element : 9″
Warranty
1 Year of Parts and Labor
Specifications | |
| Brand | Bosch |
| Series | 500 |
Appearance | |
| Color | Black |
| Color Family | Black |
Dimensions | |
| Exterior Width | 30" |
| Width | 31" |
| Depth | 21 1/4" |
| Height | 4" |
| Cutout Width | 28 7/8" |
| Cutout Height | 4" |
| Cutout Depth | 20" |
Fuel Type | |
| Fuel Type | Electric |
Style | |
| Type | Cooktop |
| Control Location | Front |
Cooking Surface | |
| Burner/Element Type | Radiant Element |
| Number of Burners/Elements | 4 |
| Grill | No |
| Griddle | No |
| French Top | No |
| Highest Element Output | 2500 Watts |
| Burner/Element Output N1 | 1700 Watts |
| Burner/Element Output N2 | 1800 Watts |
| Burner/Element Output N3 | 1200 Watts |
| Burner/Element Output N4 | 2500 Watts |
| Hot Surface Indicator Light | Yes |
Technical Details | |
| Voltage | 240 |
| Amps | 30 |
| Frequency | 60 Hz. |
Certifications | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
Features | |
| Sabbath Mode | No |
| Control Type | Knobs |
| Portable | No |
| Timer | No |
| Light | Yes |
| Brand | Bosch |
|---|---|
| Series | 500 |
|
Appearance |
|
| Color | Black |
| Color Family | Black |
|
Dimensions |
|
| Exterior Width | 30" |
| Width | 31" |
| Depth | 21 1/4" |
| Height | 4" |
| Cutout Width | 28 7/8" |
| Cutout Height | 4" |
| Cutout Depth | 20" |
|
Fuel Type |
|
| Fuel Type | Electric |
|
Style |
|
| Type | Cooktop |
| Control Location | Front |
|
Cooking Surface |
|
| Burner/Element Type | Radiant Element |
| Number of Burners/Elements | 4 |
| Grill | No |
| Griddle | No |
| French Top | No |
| Highest Element Output | 2500 Watts |
| Burner/Element Output N1 | 1700 Watts |
| Burner/Element Output N2 | 1800 Watts |
| Burner/Element Output N3 | 1200 Watts |
| Burner/Element Output N4 | 2500 Watts |
| Hot Surface Indicator Light | Yes |
|
Technical Details |
|
| Voltage | 240 |
| Amps | 30 |
| Frequency | 60 Hz. |
|
Certifications |
|
| ADA Compliant | Yes |
| CSA Listed | Yes |
|
Features |
|
| Sabbath Mode | No |
| Control Type | Knobs |
| Portable | No |
| Timer | No |
| Light | Yes |
