- Series: 500
- Color: Stainless Steel
- Width: 37"
- Height: 4 1/2"
- Depth: 21 1/4"
- Type: Cooktop
- Fuel Type: Gas
- Gas Type: Natural Gas
- Burner/Element Type: Sealed Burner
- Number of Burners/Elements: 5
- Highest Burner Output: 16000 BTU
- ADA Compliant: Yes
- Voltage: 120
- Amps: 15

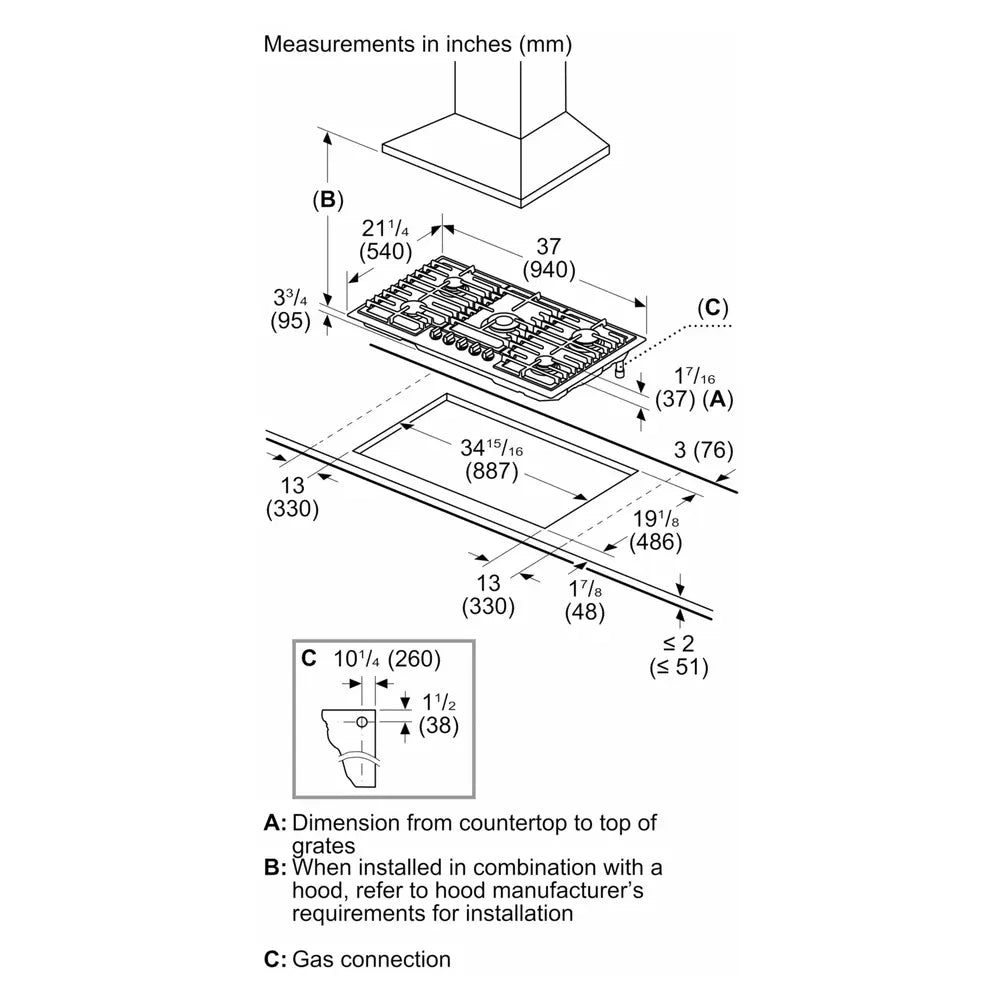

- Cutout Width: 34 15/16"
- Cutout Height: 2"
- Cutout Depth: 19 1/8"
Bosch NGM5659UC 36 inch 500 Series Gas Cooktop with 5 Sealed Burners, OptiSim Burner, Red LED Light and Continuous Cast Iron Grates in Stainless Steel
Availability: In Stock (Low)
Availability: In Stock (Low)
Availability: In Stock (Low)
- Series: 500
- Color: Stainless Steel
- Width: 37"
- Height: 4 1/2"
- Depth: 21 1/4"
- Type: Cooktop
- Fuel Type: Gas
- Gas Type: Natural Gas
- Burner/Element Type: Sealed Burner
- Number of Burners/Elements: 5
- Highest Burner Output: 16000 BTU
- ADA Compliant: Yes
- Voltage: 120
- Amps: 15
- Cutout Width: 34 15/16"
- Cutout Height: 2"
- Cutout Depth: 19 1/8"
Features:
500 Series 36″ Gas Cooktop
The 500 Series stainless steel gas cooktop with continuous cast iron grates and OptiSimĀ® burner.
Fit multiple pans and cook with 5 burners
5 powerful high-efficiency gas burners allow you to cook multiple dishes with a full range of BTU performance.

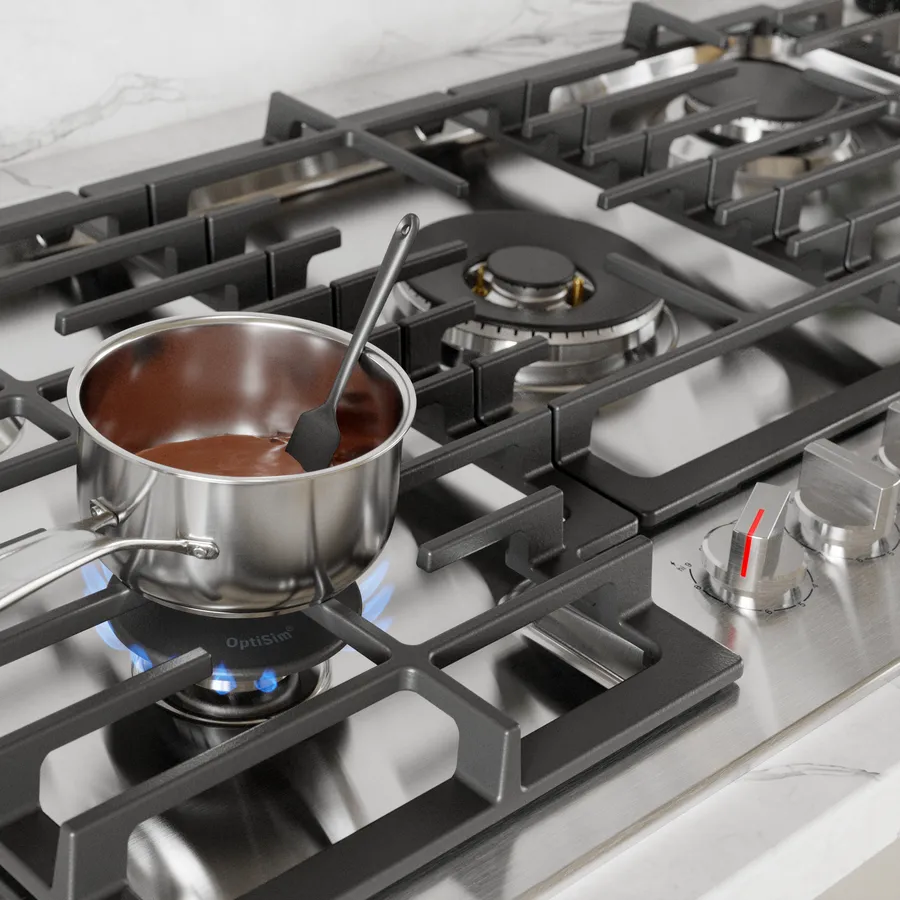

Simmer delicate sauces with the OptiSimĀ® Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
Easy to clean, low-profile design
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever
Slide your pans from burner to burner
The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.

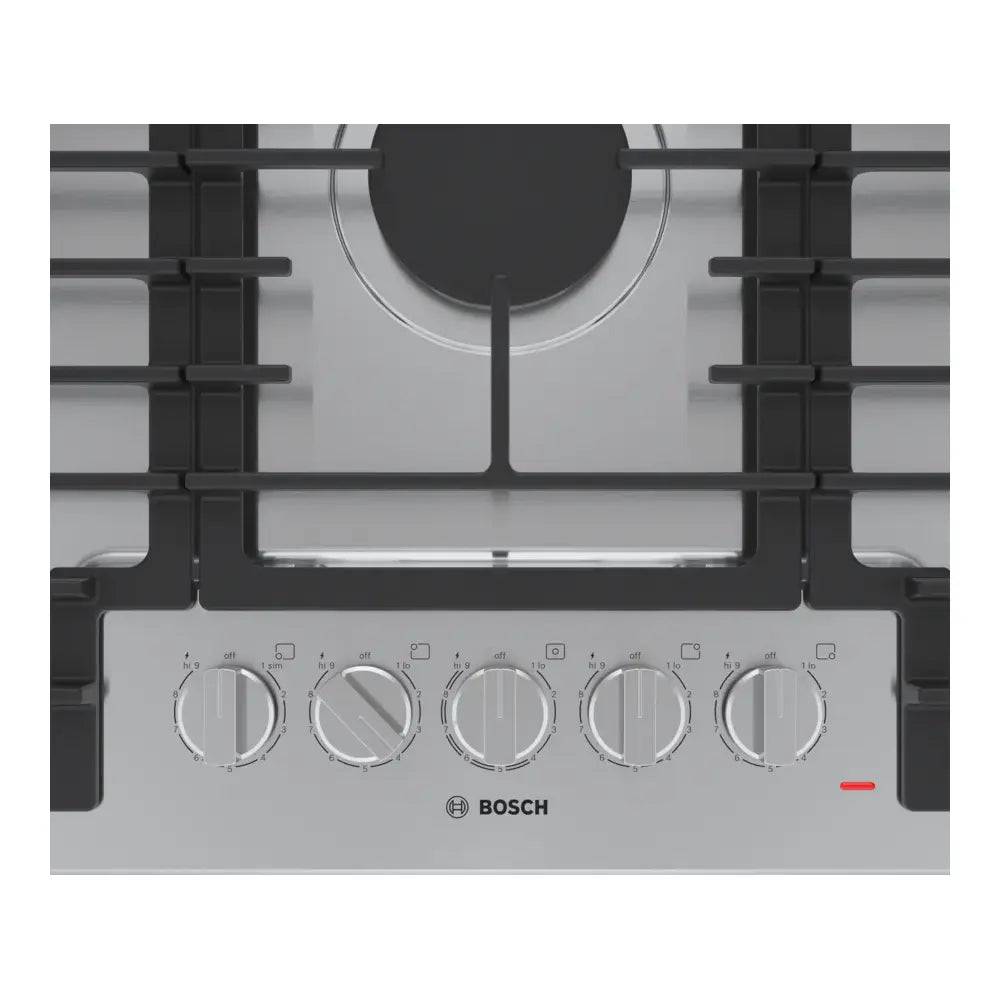

Red LED Light
Distinctive red LED light indicates if burners are on.

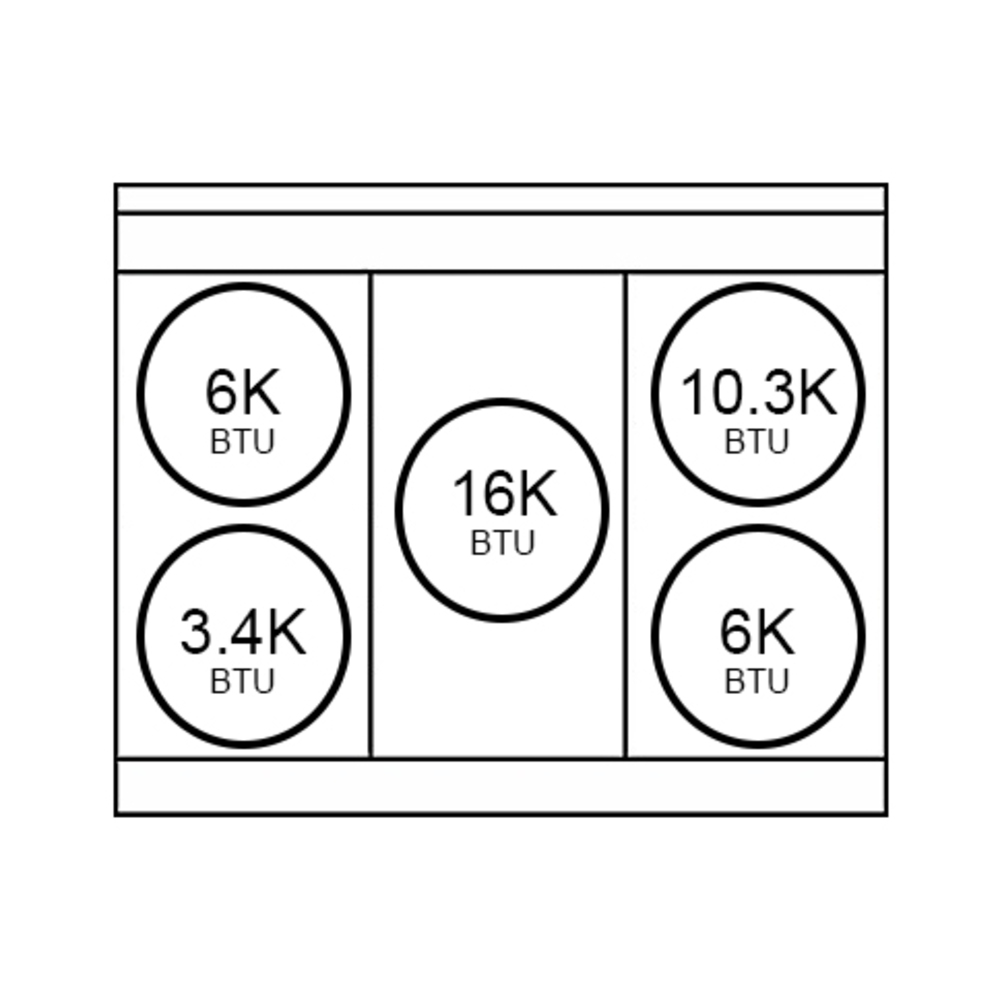

Burner Outputs:
- Total BTU load (NG / LP) 41,700 / 41,700
- Power of front left burner (NG / LP) 3,400 / 3,400
- Power of back left burner (NG / LP) 6,000 / 6,000
- Power of center burner (NG / LP) 16,000 / 16,000
- Power of back right burner (NG / LP) 10,300 / 10,300
- Power of front right burner (NG / LP) 6,000 / 6,000
Specifications | |
| Brand | Bosch |
| Series | 500 |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 36" |
| Width | 37" |
| Depth | 21 1/4" |
| Height | 4 1/2" |
| Cutout Width | 34 15/16" |
| Cutout Height | 2" |
| Cutout Depth | 19 1/8" |
Fuel Type | |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
Style | |
| Type | Cooktop |
| Control Location | Front |
Cooking Surface | |
| Burner/Element Type | Sealed Burner |
| Number of Burners/Elements | 5 |
| Grill | No |
| Griddle | No |
| French Top | No |
| Highest Burner Output | 16000 BTU |
| Burner/Element Output N1 | 3400 BTU |
| Burner/Element Output N2 | 6000 BTU |
| Burner/Element Output N3 | 10300 BTU |
| Burner/Element Output N4 | 6000 BTU |
| Burner/Element Output N5 | 16000 BTU |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
Certifications | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
Features | |
| Sabbath Mode | No |
| Control Type | Knobs |
| Portable | No |
| Installs Over Oven | Yes |
| Timer | No |
| Continuous Grates | Yes |
| Cast Iron Grates | Yes |
| LP Convertible | Yes |
| Brand | Bosch |
|---|---|
| Series | 500 |
|
Appearance |
|
| Color | Stainless Steel |
| Color Family | Stainless Steel |
|
Dimensions |
|
| Exterior Width | 36" |
| Width | 37" |
| Depth | 21 1/4" |
| Height | 4 1/2" |
| Cutout Width | 34 15/16" |
| Cutout Height | 2" |
| Cutout Depth | 19 1/8" |
|
Fuel Type |
|
| Fuel Type | Gas |
| Gas Type | Natural Gas |
|
Style |
|
| Type | Cooktop |
| Control Location | Front |
|
Cooking Surface |
|
| Burner/Element Type | Sealed Burner |
| Number of Burners/Elements | 5 |
| Grill | No |
| Griddle | No |
| French Top | No |
| Highest Burner Output | 16000 BTU |
| Burner/Element Output N1 | 3400 BTU |
| Burner/Element Output N2 | 6000 BTU |
| Burner/Element Output N3 | 10300 BTU |
| Burner/Element Output N4 | 6000 BTU |
| Burner/Element Output N5 | 16000 BTU |
|
Technical Details |
|
| Voltage | 120 |
| Amps | 15 |
|
Certifications |
|
| ADA Compliant | Yes |
| CSA Listed | Yes |
|
Features |
|
| Sabbath Mode | No |
| Control Type | Knobs |
| Portable | No |
| Installs Over Oven | Yes |
| Timer | No |
| Continuous Grates | Yes |
| Cast Iron Grates | Yes |
| LP Convertible | Yes |
