- Series: Alta
- Color: Stainless Steel
- Width: 35 7/8"
- Height: 5"
- Depth: 22"
- Type: Hood
- Style: Standard Hood
- CFM: 375
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Convertible
- ADA Compliant: Optional Wall Switch
- Voltage: 120
- Amps: 15

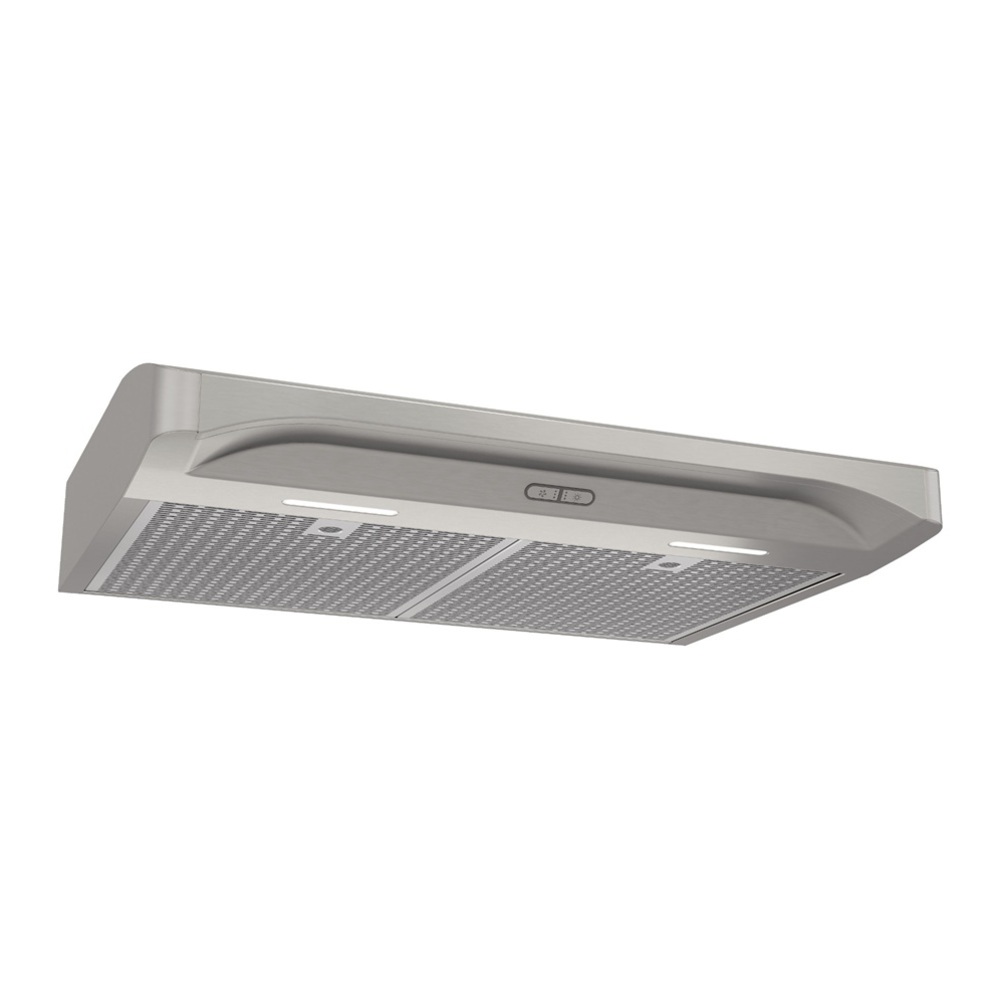

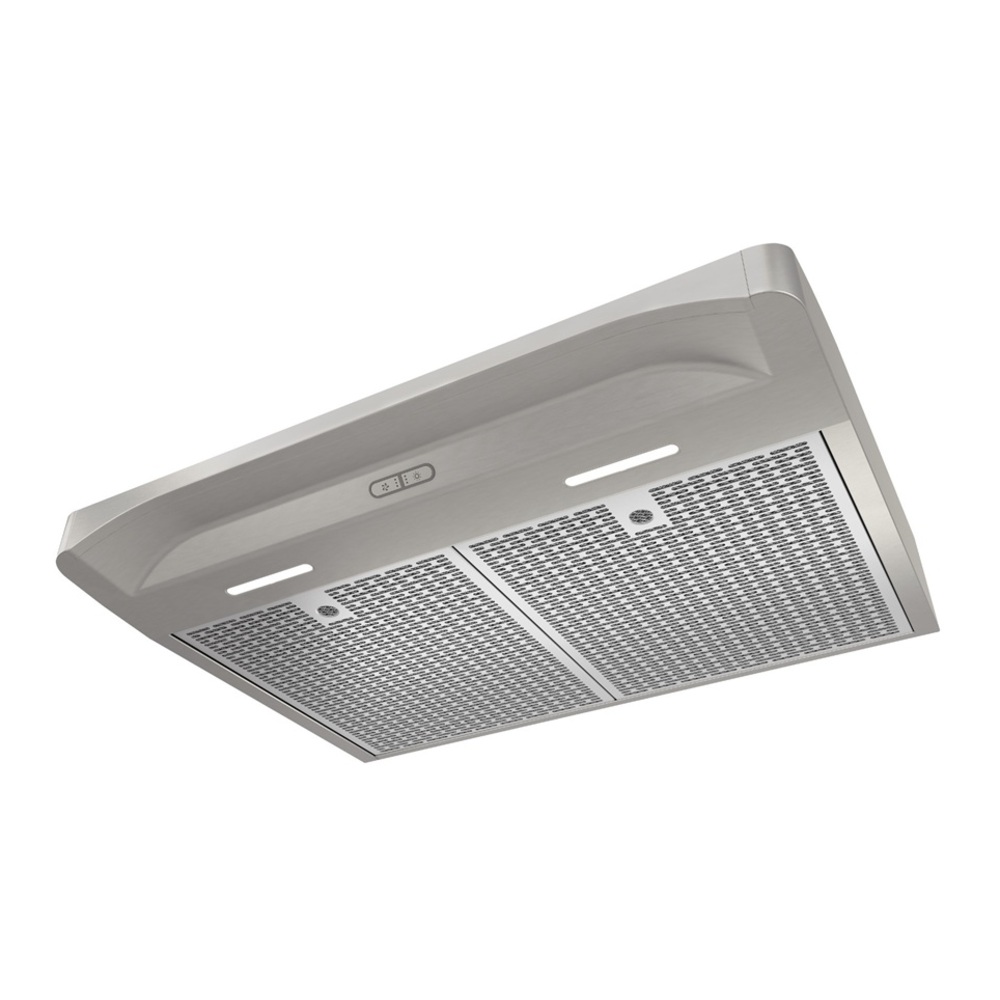

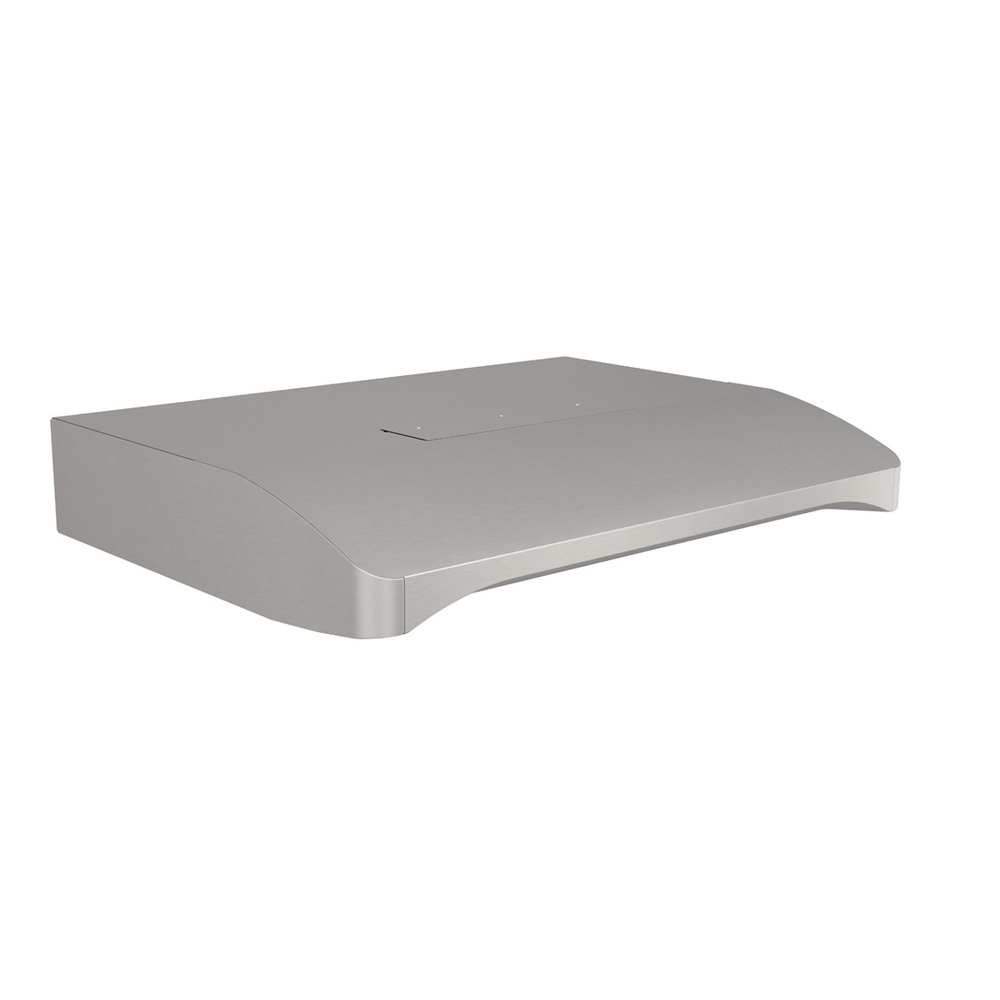

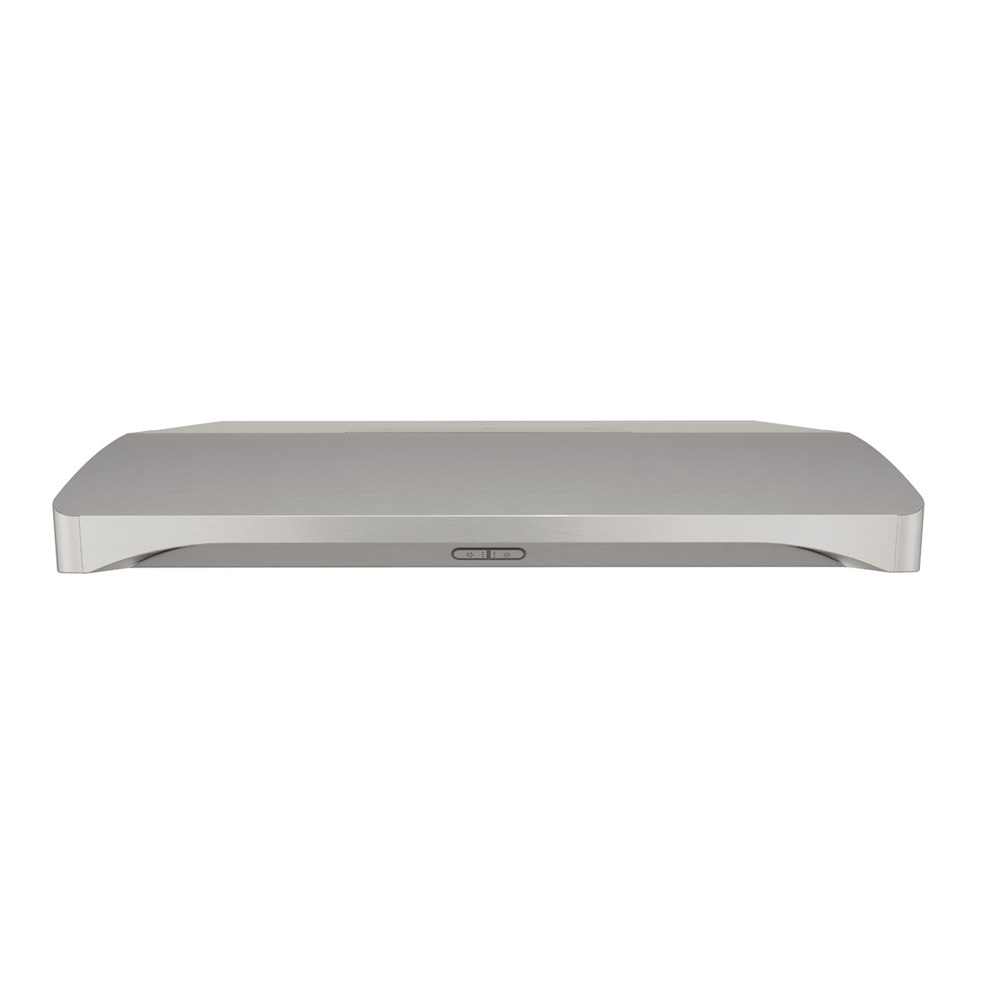

Broan ALT236SS 36 inch Alta Series Convertible Under Cabinet Range Hood with 375 CFM, LED Lighting, Captur System and Deluxe Micro-Mesh Filters (Stainless Steel)
- Series: Alta
- Color: Stainless Steel
- Width: 35 7/8"
- Height: 5"
- Depth: 22"
- Type: Hood
- Style: Standard Hood
- CFM: 375
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Convertible
- ADA Compliant: Optional Wall Switch
- Voltage: 120
- Amps: 15
Features:
Broan® Elite 36-Inch Convertible Under-Cabinet Range Hood
The Alta™ range hood features sculpted lines with wide curves, tap-touch capacitive controls, and LED lighting, offering a clean and striking design. Equipped with the exclusive Broan Captur™ system, it combines advanced blower design and new filter technology for powerful performance. With a 375 Max CFM blower, it provides 98.1% removal of smoke and odors, effectively protecting your home from cooking pollutants.
Captur™ System
Captur™ systems 375 MAX Blower CFM quickly pulls smoke and cooking odors out of the air
1.2 Sones
Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 sones operation at normal speed
LED Lighting
Bright, two-level LED modules – supported by a 3-year warranty – illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
Touch Controls
Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface

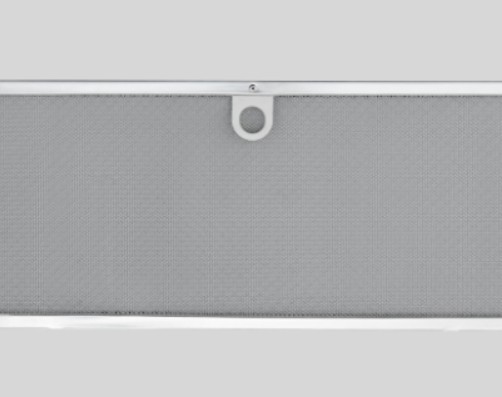

Deluxe Micro-Mesh Filters
Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design. The filter clean reminder ensures they will always maintain a high level of capture
EZ1 Brackets
EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
ADA Capable (Wall Switch Sold Separately)
ADA compliant, remote operation is possible using a standard UL approved wall switch.
Non-Duct Capable
Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
Additional Features:
- Horizontal/Vertical Duct Direction
- HVI Certified
- UL Listed
1 Year Limited Warranty, 3 Year on LED Modules Only
Specifications | |
Brand | Broan |
Series | Alta |
Appearance | |
Color | Stainless Steel |
Color Family | Stainless Steel |

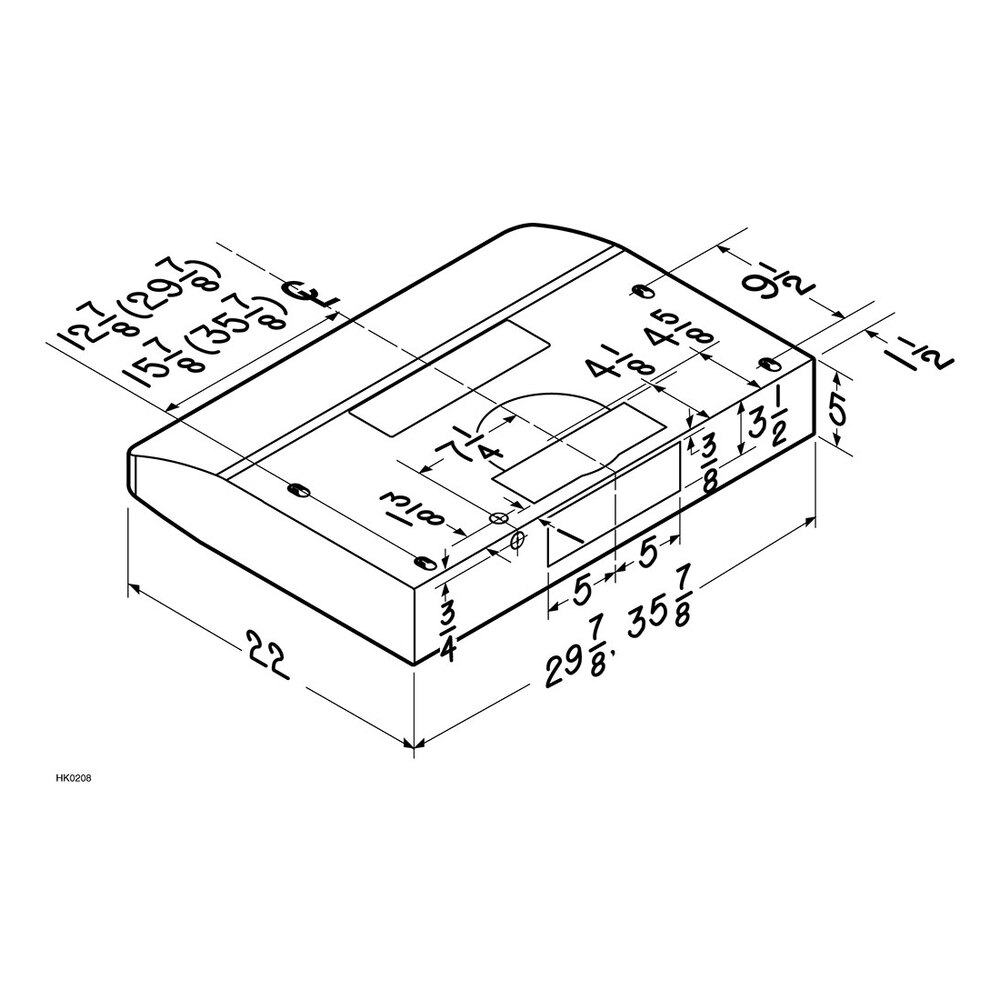

Dimensions | |
Exterior Width | 36" |
Width | 35 7/8" |
Depth | 22" |
Height | 5" |
Style | |
Style | Standard Hood |
Type | Hood |
Mounting Type | Under Cabinet |
Glass Canopy | No |
Fan | Yes |
Technical Details | |
Voltage | 120 |
Amps | 15 |
Duct Type | Both |
Number of Light Bulbs | 2 |
Duct Diameter | 7" |
Duct Length | 10" |
Duct Width | 3 1/4" |
Frequency | 60 Hz. |
Vent Location | Top or Rear |
Certifications | |
ADA Compliant | Optional Wall Switch |
UL Listed | Yes |
Features | |
Convertible Ducting | Yes |
CFM | 375 |
Filter Type | Mesh |
Venting Type | Convertible |
Blower Type | Internal |
Light Bulb Type | LED |
Number of Fan Speeds | 3 |
Light | Yes |
Recirculating Kit | Sold Separately |
Brand | Broan |
---|---|
Series | Alta |
Appearance |
|
Color | Stainless Steel |
Color Family | Stainless Steel |
Dimensions |
|
Exterior Width | 36" |
Width | 35 7/8" |
Depth | 22" |
Height | 5" |
Style |
|
Style | Standard Hood |
Type | Hood |
Mounting Type | Under Cabinet |
Glass Canopy | No |
Fan | Yes |
Technical Details |
|
Voltage | 120 |
Amps | 15 |
Duct Type | Both |
Number of Light Bulbs | 2 |
Duct Diameter | 7" |
Duct Length | 10" |
Duct Width | 3 1/4" |
Frequency | 60 Hz. |
Vent Location | Top or Rear |
Certifications |
|
ADA Compliant | Optional Wall Switch |
UL Listed | Yes |
Features |
|
Convertible Ducting | Yes |
CFM | 375 |
Filter Type | Mesh |
Venting Type | Convertible |
Blower Type | Internal |
Light Bulb Type | LED |
Number of Fan Speeds | 3 |
Light | Yes |
Recirculating Kit | Sold Separately |
