- Color: Black
- Width: 24"
- Height: 6"
- Depth: 17 1/2"
- Type: Hood
- Style: Standard Hood
- CFM: 230
- Blower Type: Internal
- Light Bulb Type: Incandescent
- Venting Type: Convertible
- Voltage: 120
- Amps: 15
Broan F402423 24 inch Under Cabinet Hood with 230 CFM, Rocker-Type Switches, Washable Aluminum Filter (Black)
Availability: In Stock
Availability: In Stock
- Color: Black
- Width: 24"
- Height: 6"
- Depth: 17 1/2"
- Type: Hood
- Style: Standard Hood
- CFM: 230
- Blower Type: Internal
- Light Bulb Type: Incandescent
- Venting Type: Convertible
- Voltage: 120
- Amps: 15
Features:
Convertible Under-Cabinet Range Hood

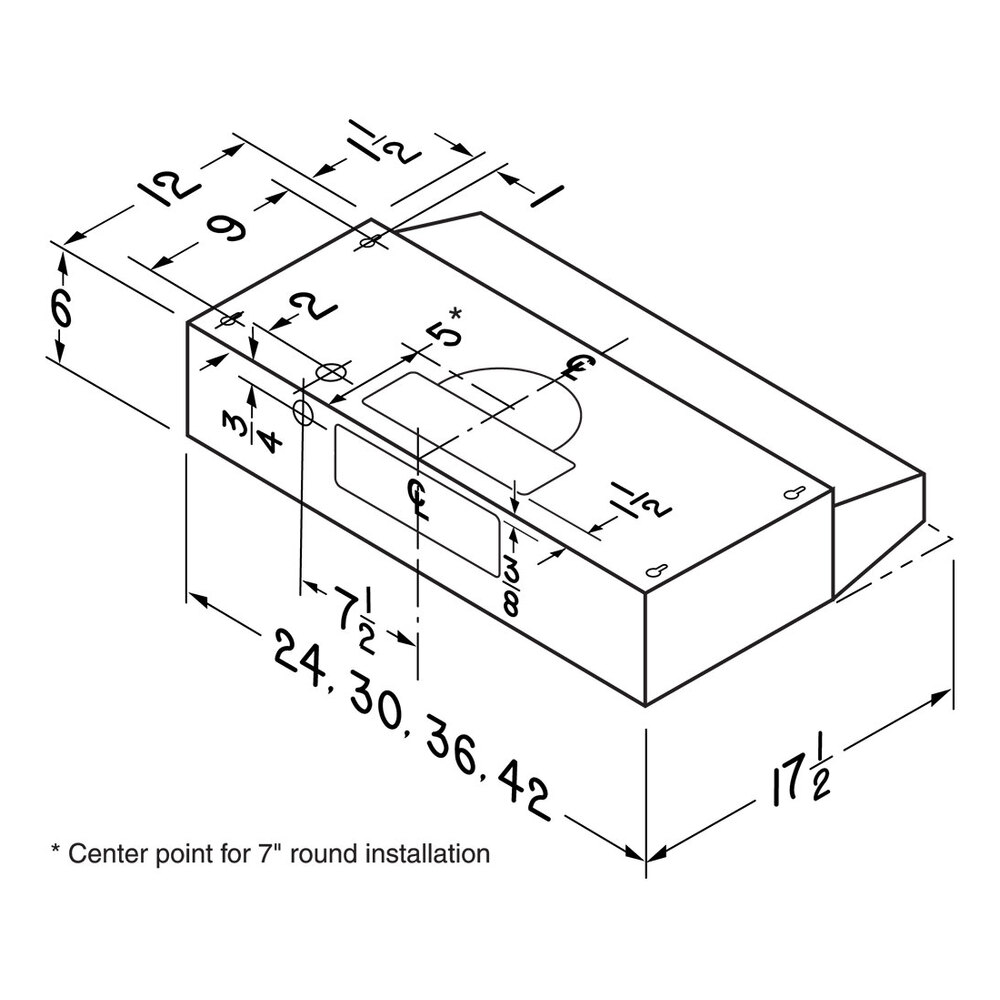

The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood is equipped with a 230 MAX Blower CFM designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top, and control switches for fan speed and light activation
4-Way Convertibility
Provides installation flexibility with 4-way convertibility to fit virtually all applications
Rocker Switches
Simple to use rocker switches let you adjust the fan speed and the light setting separately
Two Fan Speeds
Two fan speeds help you tackle a variety of venting jobs
230 MAX Blower CFM
230 MAX Blower CFM quickly removes smoke and cooking odors from the air
Vertical and Horizontal Exhaust
Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood
Aluminum Mesh Filter
Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately)
Incandescent Light (bulb sold separately)
Uses up to a 75-Watt in incandescent light to brightly illuminate the cooking area (bulb sold separately)
Adapter
Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation (7 in. damper sold separately)
Enclosed Light and Fan/Filter Assemblies
Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning
Warranty
One year limited warranty
Certification
UL listed and HVI 2100 certified
Specifications | |
| Brand | Broan |
Appearance | |
| Color | Black |
| Color Family | Black |
Dimensions | |
| Exterior Width | 24" |
| Width | 24" |
| Depth | 17 1/2" |
| Height | 6" |
Style | |
| Style | Standard Hood |
| Type | Hood |
| Mounting Type | Under Cabinet |
| Glass Canopy | No |
| Fan | Yes |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
| Duct Type | Both |
| Duct Diameter | 7" |
| Duct Length | 10" |
| Duct Width | 3 1/4" |
| Vent Location | Top or Rear |
Certifications | |
| UL Listed | Yes |
Features | |
| Convertible Ducting | Yes |
| CFM | 230 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | Incandescent |
| Number of Fan Speeds | 2 |
| Light | Light Bulbs Not Included |
| Recirculating Kit | Sold Separately |
| Watts | 300 Watts |
| Brand | Broan |
|---|---|
|
Appearance |
|
| Color | Black |
| Color Family | Black |
|
Dimensions |
|
| Exterior Width | 24" |
| Width | 24" |
| Depth | 17 1/2" |
| Height | 6" |
|
Style |
|
| Style | Standard Hood |
| Type | Hood |
| Mounting Type | Under Cabinet |
| Glass Canopy | No |
| Fan | Yes |
|
Technical Details |
|
| Voltage | 120 |
| Amps | 15 |
| Duct Type | Both |
| Duct Diameter | 7" |
| Duct Length | 10" |
| Duct Width | 3 1/4" |
| Vent Location | Top or Rear |
|
Certifications |
|
| UL Listed | Yes |
|
Features |
|
| Convertible Ducting | Yes |
| CFM | 230 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | Incandescent |
| Number of Fan Speeds | 2 |
| Light | Light Bulbs Not Included |
| Recirculating Kit | Sold Separately |
| Watts | 300 Watts |
Broan F402423 24 inch Under Cabinet Hood with 230 CFM, Rocker-Type Switches, Washable Aluminum Filter (Black)
