- Series: Transitional
- Color: Silver Stainless Steel
- Width: 35 7/8"
- Height: 36"
- Depth: 28 3/4"
- Style: Freestanding
- Wi-Fi: Yes
- Fuel Type: Dual Fuel
- Gas Type: Natural Gas
- Burner/Element Type: Sealed Burner
- Highest Burner Output: 22000 BTU
- Griddle: Optional
- Oven Total Capacity (cu. ft.): 6.3
- Convection: Yes
- Voltage: 240
- Amps: 40

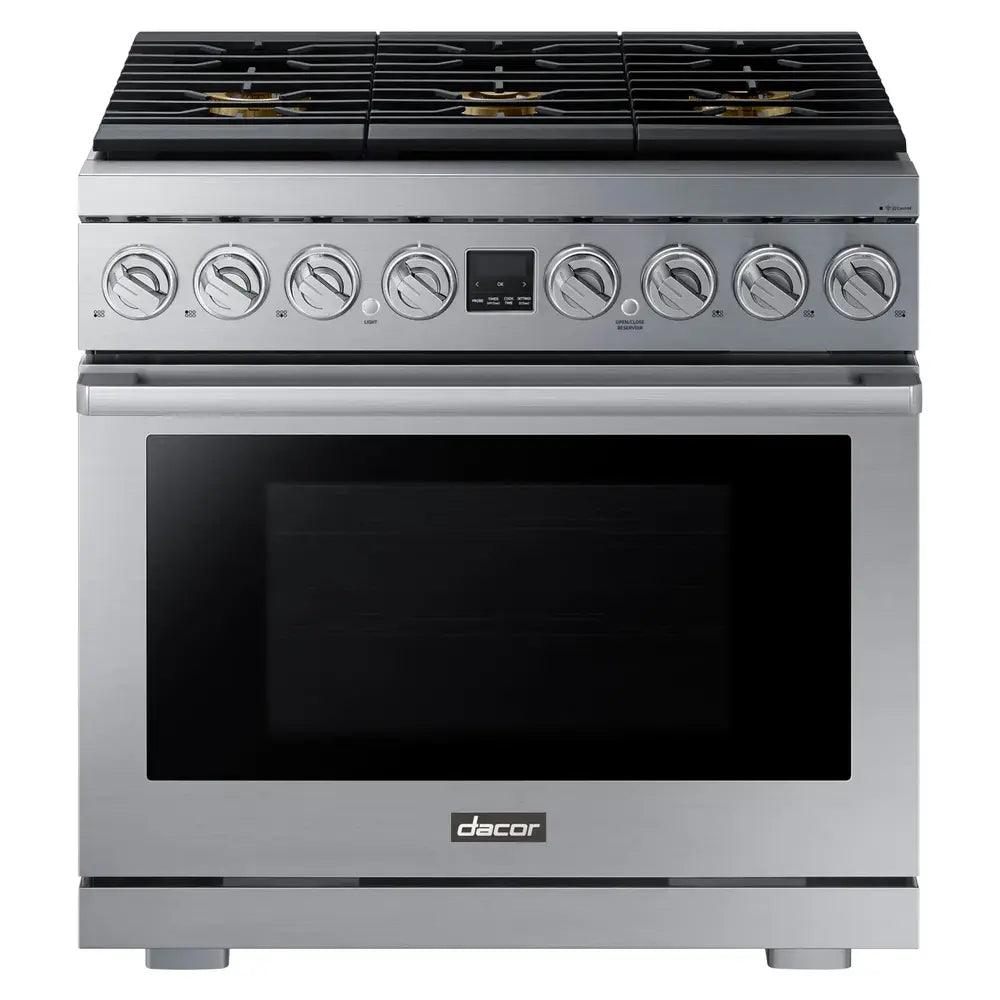

Dacor DOP36T86DLS 36 inch Transitional Dual Fuel Range with 6 Burners, 6.3 cu. ft. Capacity, Steam-Assist, Dual Four-Part Pure Convection, Self-Clean, in Silver Stainless
- Series: Transitional
- Color: Silver Stainless Steel
- Width: 35 7/8"
- Height: 36"
- Depth: 28 3/4"
- Style: Freestanding
- Wi-Fi: Yes
- Fuel Type: Dual Fuel
- Gas Type: Natural Gas
- Burner/Element Type: Sealed Burner
- Highest Burner Output: 22000 BTU
- Griddle: Optional
- Oven Total Capacity (cu. ft.): 6.3
- Convection: Yes
- Voltage: 240
- Amps: 40
36 Inch Dual-Fuel Range
The 36″ Dual-Fuel Range boasts solid brass dual stack burners with an output of 22K BTU’s and an extra large capacity oven (6.3 cubic feet) which can accommodate multiple dishes. Dual Four-Part Pure Convection reduces cooking time with superb consistency of zero flavour transfer and Steam-Assist enables you to achieve meats that are juicy on the inside yet crispy on the outside. Combine all this performance with a Wi-Fi enabled 2.25″ OLED touch control panel allowing SmartThings integration for communication between appliances as well as monitoring and operating remotely.
- Steam-Assist oven
- Dual Four-Part Pure Convection system
- SimmerSear™ brass burners
- Halogen lighting
- OLED control panel with SmartThings Wi-Fi connectivity
- Perma-Flame™
- Auto Connect to compatible ventilation through Bluetooth
- Digital temperature probe
- Self-clean oven
- SoftShut™ hinges
- LP conversion kit
- WI-FI TOUCH CONTROL
- A 2.25″ Wi-Fi enabled touch control panel allows SmartThings integration for communication between appliances as well as monitoring and operating remotely.
STEAM ASSIST
Achieve meats that are juicy on the inside yet crispy on the outside using Steam Assist with an external steam generator
FOUR-PART PURE CONVECTION
Superior consistency and zero flavor transfer with Four-Part Pure Convection. Reduce cooking time by distributing heat evenly across the entire oven.
SIMMERSEAR BURNERS
Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all brass, Dual Valve, Dual Ring Burner.
CONTINUOUS GRATES
Easily slide pots and pans across a spacious cooking surface with continuous grates
EXTRA LARGE CAPACITY
Large oven cavity can accommodate multiple dishes with 6.3 cubic feet of space
ART HAIRLINE FINISH
The beauty of the appliance is accentuated with long horizontal stainless steel brush stroke finish
SMARTTHINGS INTEGRATION
Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.
Specifications | |
Brand | Dacor |
Series | Transitional |
Appliance Category | Range |
Appearance | |
Color | Silver Stainless Steel |
Design Style | Pro Style |
Dimensions | |
Exterior Width | 36" |
Width | 35 7/8" |
Depth | 28 3/4" |
Height | 36" |
Fuel Type | |
Fuel Type | Dual Fuel |
Gas Type | Natural Gas |
Style | |
Style | Freestanding |
Pro-Style | Yes |
Control Location | Front |
Capacity | |
Number of Ovens | Single Oven |
Oven Total Capacity (cu. ft.) | 6.3 |
Cooking Surface | |
Burner/Element Type | Sealed Burner |
Grill | No |
Griddle | Optional |
French Top | No |
Highest Burner Output | 22000 BTU |
Burner/Element Output N1 | 22000 BTU |
Burner/Element Output N2 | 16000 BTU |
Burner/Element Output N3 | 16000 BTU |
Burner/Element Output N4 | 16000 BTU |
Burner/Element Output N5 | 22000 BTU |
Burner/Element Output N6 | 16000 BTU |
Oven | |
Oven Control Type | Digital and Knobs |
Oven Cleaning Type | Self Clean |
Smart Features | |
Smart Appliance | Yes |
Wi-Fi | Yes |
Technical Details | |
Voltage | 240 |
Amps | 40 |
Features | |
Convection | Yes |
Fingerprint Resistant | No |
Air Fry | No |
Cooktop Control Type | Knobs |
Drawer | None |
Steam Oven | Yes |
LP Convertible | Yes |
Gas Conversion Kit Included | Yes |
Brand | Dacor |
---|---|
Series | Transitional |
Appliance Category | Range |
Appearance |
|
Color | Silver Stainless Steel |
Design Style | Pro Style |
Dimensions |
|
Exterior Width | 36" |
Width | 35 7/8" |
Depth | 28 3/4" |
Height | 36" |
Fuel Type |
|
Fuel Type | Dual Fuel |
Gas Type | Natural Gas |
Style |
|
Style | Freestanding |
Pro-Style | Yes |
Control Location | Front |
Capacity |
|
Number of Ovens | Single Oven |
Oven Total Capacity (cu. ft.) | 6.3 |
Cooking Surface |
|
Burner/Element Type | Sealed Burner |
Grill | No |
Griddle | Optional |
French Top | No |
Highest Burner Output | 22000 BTU |
Burner/Element Output N1 | 22000 BTU |
Burner/Element Output N2 | 16000 BTU |
Burner/Element Output N3 | 16000 BTU |
Burner/Element Output N4 | 16000 BTU |
Burner/Element Output N5 | 22000 BTU |
Burner/Element Output N6 | 16000 BTU |
Oven |
|
Oven Control Type | Digital and Knobs |
Oven Cleaning Type | Self Clean |
Smart Features |
|
Smart Appliance | Yes |
Wi-Fi | Yes |
Technical Details |
|
Voltage | 240 |
Amps | 40 |
Features |
|
Convection | Yes |
Fingerprint Resistant | No |
Air Fry | No |
Cooktop Control Type | Knobs |
Drawer | None |
Steam Oven | Yes |
LP Convertible | Yes |
Gas Conversion Kit Included | Yes |

Purchase a qualifying Dacor Refrigerator or Range and receive up to $2,000 OFF (Download)
SEASONAL SAVINGS EVENT
Purchase a qualifying Dacor Range or Refrigerator and receive up to $2,000 off.
Eligible Ranges:
$2000 Off: 36 Inch Dual-Fuel Steam Range, Contemporary Silver & Graphite Stainless
$1500 Off: 36 Inch Dual-Fuel Range Transitional, Silver Stainless
$500 Off: 36 Inch Gas Range Transitional, Silver Stainless
Eligible Refrigeration:
$1500 Off: 42-Inch Built-In Side-by-Side Refrigerator
*October 1, 2024 through March 31, 2025; must take delivery by April 30, 2025 and redeem by May 31, 2025
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
