- Series: Allasio
- Color: Black
- Width: 30"
- Height: 4 3/4"
- Depth: 20"
- Type: Hood
- Style: Standard Hood
- CFM: 300
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Convertible
- Voltage: 120
- Amps: 15

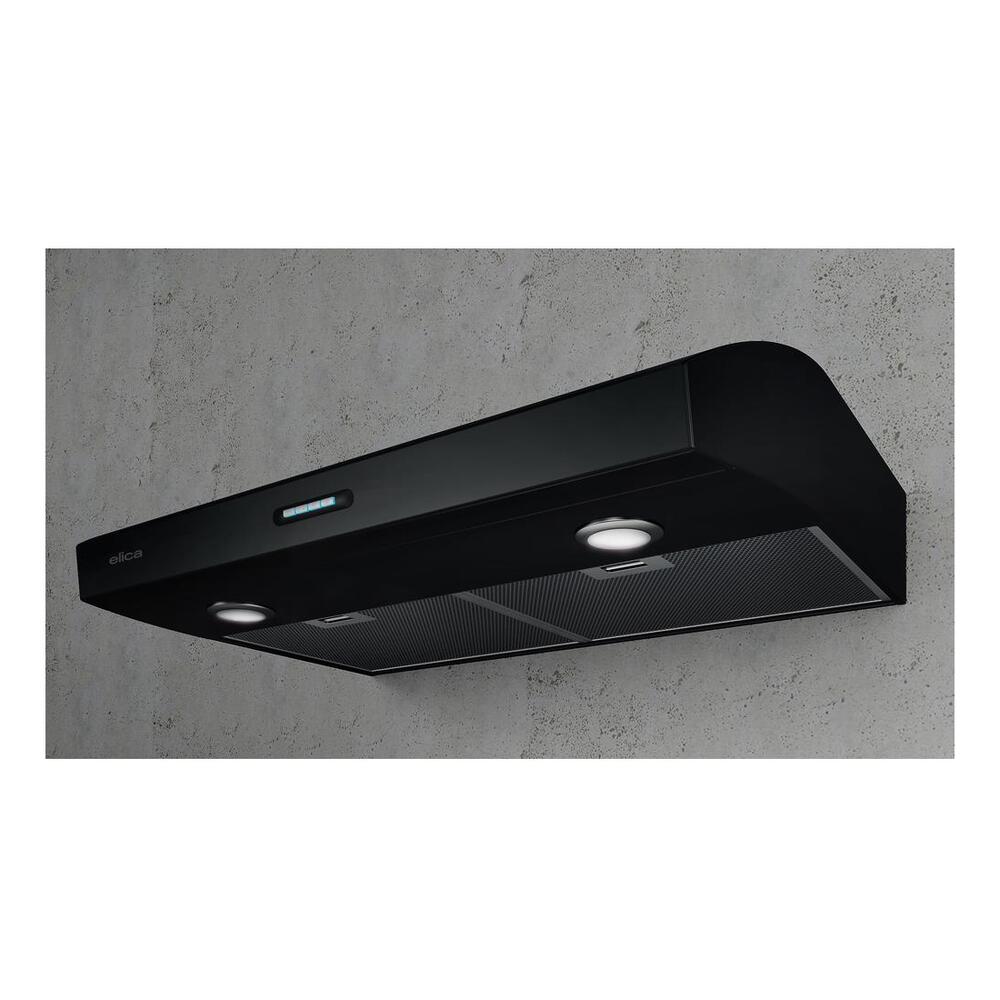

Elica EAL330B1 30 inch Comfort Allasio Under Cabinet Hood with 300 CFM, Aluminum Mesh Filters, Push Button Controls, LED Lighting (Black)
- Series: Allasio
- Color: Black
- Width: 30"
- Height: 4 3/4"
- Depth: 20"
- Type: Hood
- Style: Standard Hood
- CFM: 300
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Convertible
- Voltage: 120
- Amps: 15
Allasio comes equipped with a 300 CFM internal blower, providing sufficient ventilating power for most kitchens. The attractive backlit push-button controls illuminate in an elegant white glow when activated and allows the user to manage blower speeds and dual LED lamps. Dishwasher-safe anodized aluminum mesh filters are easy to clean and a snap to remove and replace. The contemporary Stainless Steel finish or Black & White options complement other appliances and most cabinetry. Available in 30” or 36” widths, Allasio is designed for standard ducted installation and can be installed as a recirculating system using the Recirculating Kit.
Electronic Push Button Controls
The electronic push button controls, that illuminate when activated and manage the 3-speed blower and lighting.
LED Lighting
The two LED lights illuminate the cooking surface below
Installation
This range hood can be installed ducted or recirculating (Recirculating Kit Sold Separately)
3 Speed, 300 CFM Blower
The 3-speed, 300 CFM internal blower provides sufficient ventilating performance for most kitchens.
Dishwasher-Safe Aluminum Mesh Filters
The hood comes with 2 dishwasher-safe aluminum mesh filters to ensure a cleaner kitchen.
Additional Features:
- Contemporary Italian Styling.
- 1.6 sones at working speed
- 3 1/4” x 10” top / rear or 7” round (top, sold separately) Duct Transition
- 3 Fan Speeds
Warranty: 2 Year Limited Parts and Labor
Specifications | |
| Brand | Elica |
| Series | Allasio |
Appearance | |
| Color | Black |
| Color Family | Black |
Dimensions | |
| Exterior Width | 30" |
| Width | 30" |
| Depth | 20" |
| Height | 4 3/4" |
Style | |
| Style | Standard Hood |
| Type | Hood |
| Mounting Type | Under Cabinet |
| Glass Canopy | No |
| Fan | Yes |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
| Duct Type | Both |
| Number of Light Bulbs | 2 |
| Duct Diameter | 7" |
| Duct Length | 3 1/4" |
| Duct Width | 10" |
| Frequency | 60 Hz. |
| Vent Location | Top or Rear |
Certifications | |
| Energy Star | No |
| UL Listed | Yes |
| cUL Listed | No |
Features | |
| CFM | 300 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Approved for Outdoor Use | No |
| Light Bulb Type | LED |
| Light | Yes |
| Recirculating Kit | Sold Separately |
| Commercial | No |
| Made in USA | No |
| Make-Up Air Compliant | Yes |
| Brand | Elica |
|---|---|
| Series | Allasio |
|
Appearance |
|
| Color | Black |
| Color Family | Black |
|
Dimensions |
|
| Exterior Width | 30" |
| Width | 30" |
| Depth | 20" |
| Height | 4 3/4" |
|
Style |
|
| Style | Standard Hood |
| Type | Hood |
| Mounting Type | Under Cabinet |
| Glass Canopy | No |
| Fan | Yes |
|
Technical Details |
|
| Voltage | 120 |
| Amps | 15 |
| Duct Type | Both |
| Number of Light Bulbs | 2 |
| Duct Diameter | 7" |
| Duct Length | 3 1/4" |
| Duct Width | 10" |
| Frequency | 60 Hz. |
| Vent Location | Top or Rear |
|
Certifications |
|
| Energy Star | No |
| UL Listed | Yes |
| cUL Listed | No |
|
Features |
|
| CFM | 300 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Approved for Outdoor Use | No |
| Light Bulb Type | LED |
| Light | Yes |
| Recirculating Kit | Sold Separately |
| Commercial | No |
| Made in USA | No |
| Make-Up Air Compliant | Yes |
