- Color: Stainless Steel

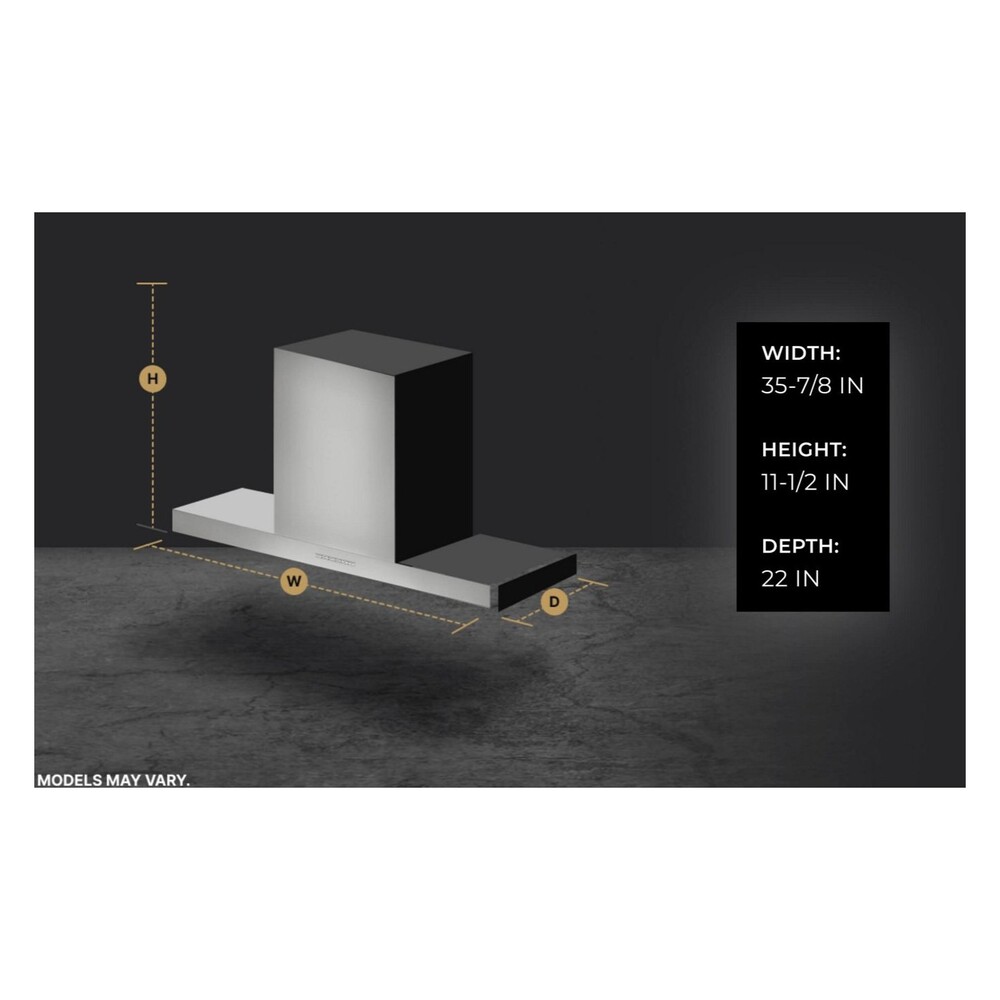

- Width: 35 7/8"
- Height: 11 1/2"
- Depth: 22"
- Type: Cabinet Insert
- CFM: 1200
- Blower Type: Blower Not Included
- Light Bulb Type: Halogen
- Venting Type: Ducted
- Voltage: 120
- Amps: 15
JennAir JXL6536HSS 36 inch Custom Hood Liner with Dishwasher Safe Stainless Steel Baffle Filters, 3 Fan Speeds, Halogen 2-Level Task Lighting, in Stainless Steel (Blowers Not Included)
Availability: In Stock
Availability: In Stock
Purchase & earn 1,849 points!Availability: In Stock
Purchase & earn 1,849 points!- Color: Stainless Steel
- Width: 35 7/8"
- Height: 11 1/2"
- Depth: 22"
- Type: Cabinet Insert
- CFM: 1200
- Blower Type: Blower Not Included
- Light Bulb Type: Halogen
- Venting Type: Ducted
- Voltage: 120
- Amps: 15
Features:

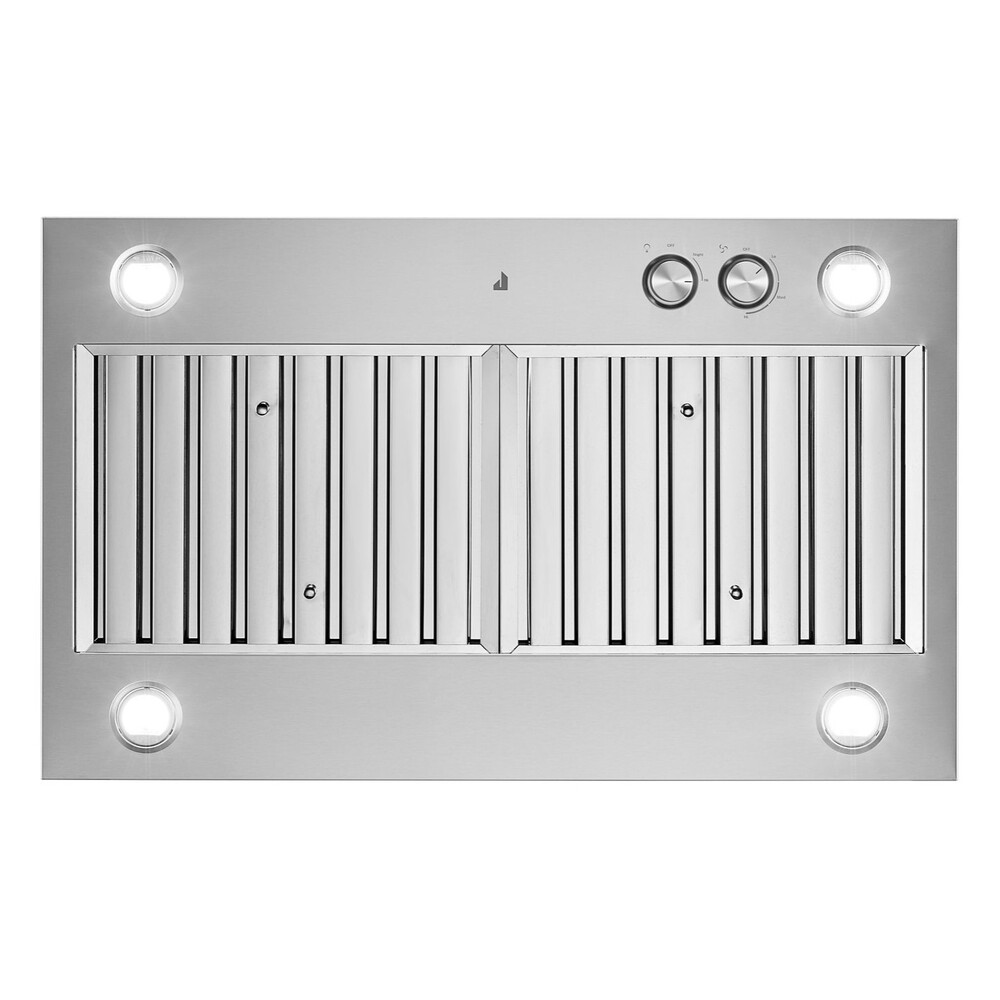

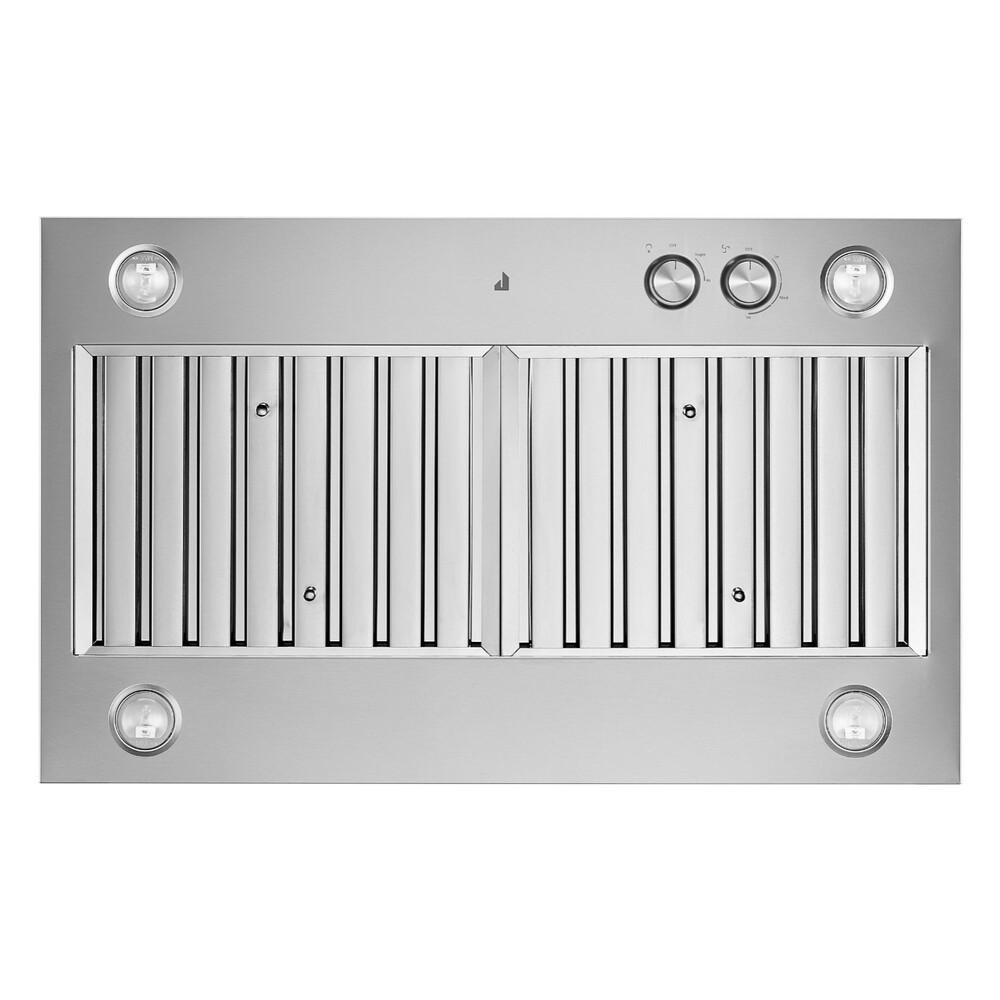

Stainless Steel 36″ Custom Hood Liner
This custom hood liner features a hidden ventilation system mounted to the inside of a custom vent cover (which can be made of metal, wood, plaster or tile), offering a uniquely streamlined look. It also offers you a choice of motors for different levels of ventilation power.
Optional 600 CFM or 1,200 CFM Internal Blower
Three-speed blower – ordered separately – rapidly rids the air of smoke, steam and cooking odors so the air is fresh and clean.
Optional 1,200 CFM In-Line Blower
Quickly removes smoke, steam and cooking odors from the kitchen and mounts further down the duct run to help reduce the noise of the ventilation system in the kitchen.
10-Inch Round Exterior Venting
Large-diameter venting that enables quiet airflow and effective performance.

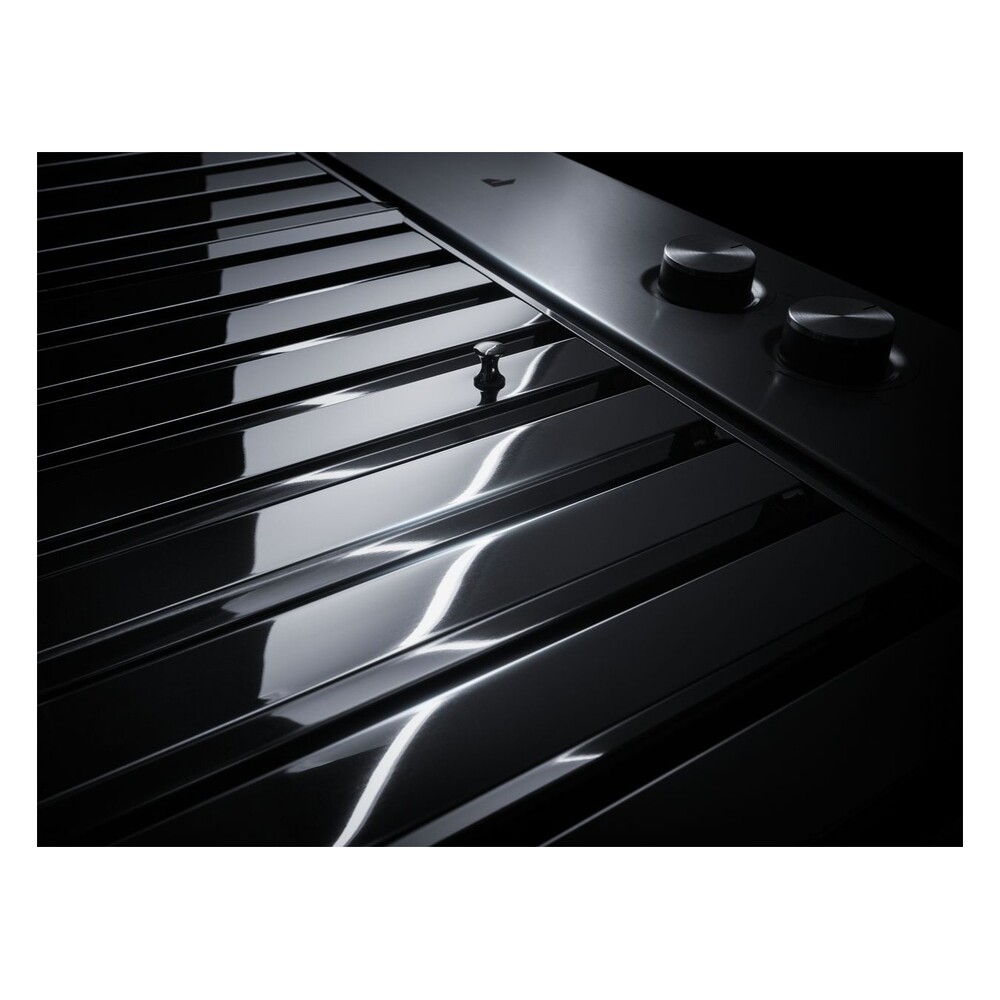

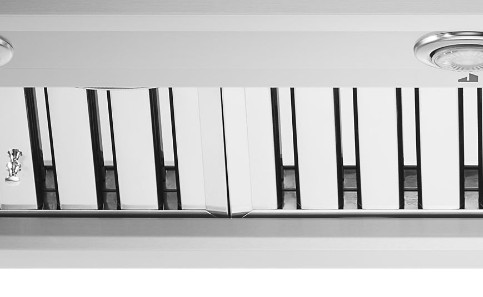

Dishwasher-Safe Stainless Steel Baffle Filters
Help remove the grease and odors of high-heat cooking. Their stainless steel design is dishwasher safe for easy cleaning.
Custom Hood Liner
This hidden ventilation system mounts to the inside of a custom-built vent covering that can blend into the kitchen’s design or be highlighted as a visual feature of the kitchen.
Lustre Stainless
Blur the lines of temptation with mind-bending curves and hairpin corners of stainless steel that will leave you reeling.
Two Lighting Levels
Two different settings give you the appropriate level of lighting as you cook.
Three Fan Speed Settings
Provides a range of ventilation power to accommodate your precise cooking needs.
Auto Sense Option
Automatically turns the ventilation system on and adjusts power as needed.
Halogen Task Lighting
Twice as energy-efficient and longer-lasting than incandescent light bulbs, these halogen lights beautifully illuminate the cooking surface from above.

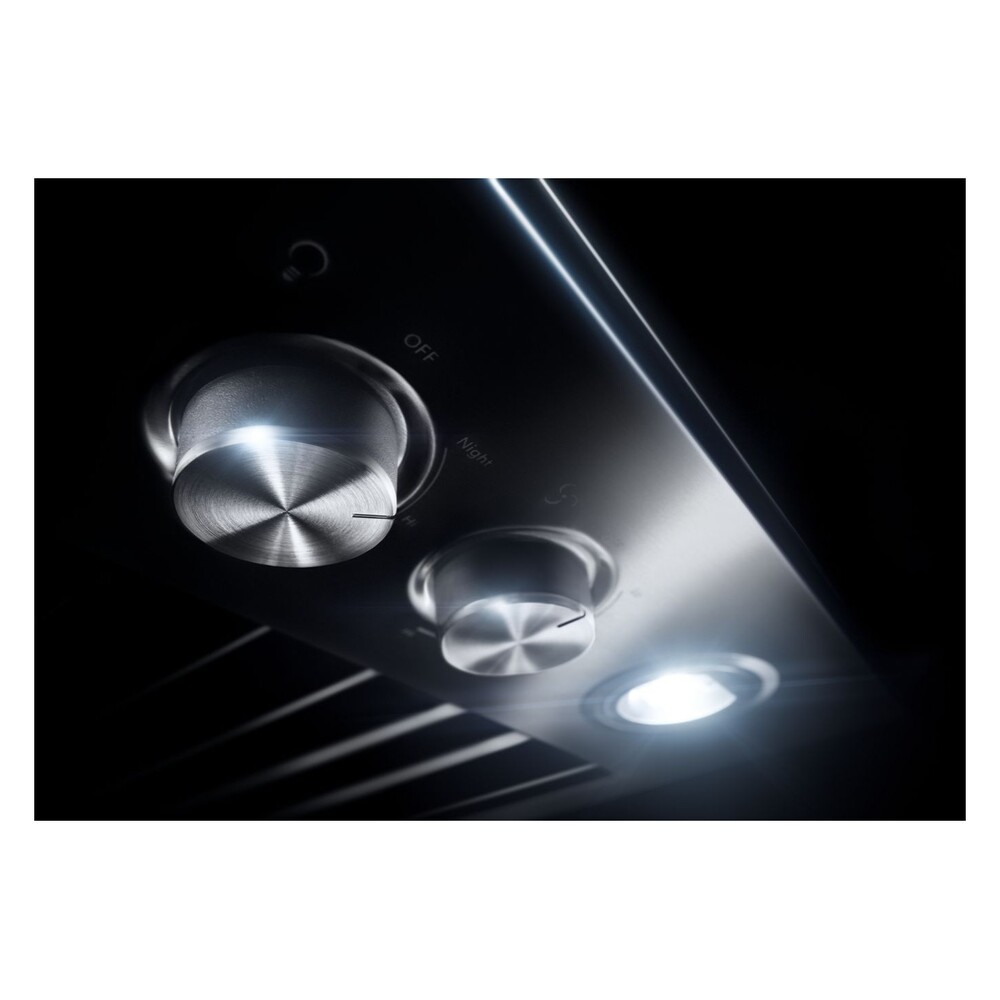

Knob Controls
Knob controls provide precise adjustment and easy selection of ventilation speeds.
Versatile Installation Options
Allow for island- or wall-mount installations for kitchen customization and a unique look.
Specifications | |
Brand | JennAir |
Appearance | |
Color | Stainless Steel |
Color Family | Stainless Steel |
Dimensions | |
Exterior Width | 36" |
Width | 35 7/8" |
Depth | 22" |
Height | 11 1/2" |
Style | |
Type | Cabinet Insert |
Mounting Type | Under Cabinet |
Technical Details | |
Voltage | 120 |
Amps | 15 |
Duct Type | Round |
Number of Light Bulbs | 4 |
Duct Diameter | 10" |
Frequency | 60 Hz. |
Vent Location | Top |
Features | |
CFM | 1200 |
Filter Type | Baffle |
Venting Type | Ducted |
Blower Type | Blower Not Included |
Automatic Turn On | Yes |
Light Bulb Type | Halogen |
Number of Fan Speeds | 3 |
Light | Yes |
Brand | JennAir |
---|---|
Appearance |
|
Color | Stainless Steel |
Color Family | Stainless Steel |
Dimensions |
|
Exterior Width | 36" |
Width | 35 7/8" |
Depth | 22" |
Height | 11 1/2" |
Style |
|
Type | Cabinet Insert |
Mounting Type | Under Cabinet |
Technical Details |
|
Voltage | 120 |
Amps | 15 |
Duct Type | Round |
Number of Light Bulbs | 4 |
Duct Diameter | 10" |
Frequency | 60 Hz. |
Vent Location | Top |
Features |
|
CFM | 1200 |
Filter Type | Baffle |
Venting Type | Ducted |
Blower Type | Blower Not Included |
Automatic Turn On | Yes |
Light Bulb Type | Halogen |
Number of Fan Speeds | 3 |
Light | Yes |
