PUDU HOLABOT Delivery Robot with Ultra Large Capacity, 4 Sections, Pager Function, Air Motion, Sound Tracking, Waterproof Inner Cabin
- Color: Black
- Width: 21 1/50"
- Height: 21 17/50"
- Depth: 48 7/20"

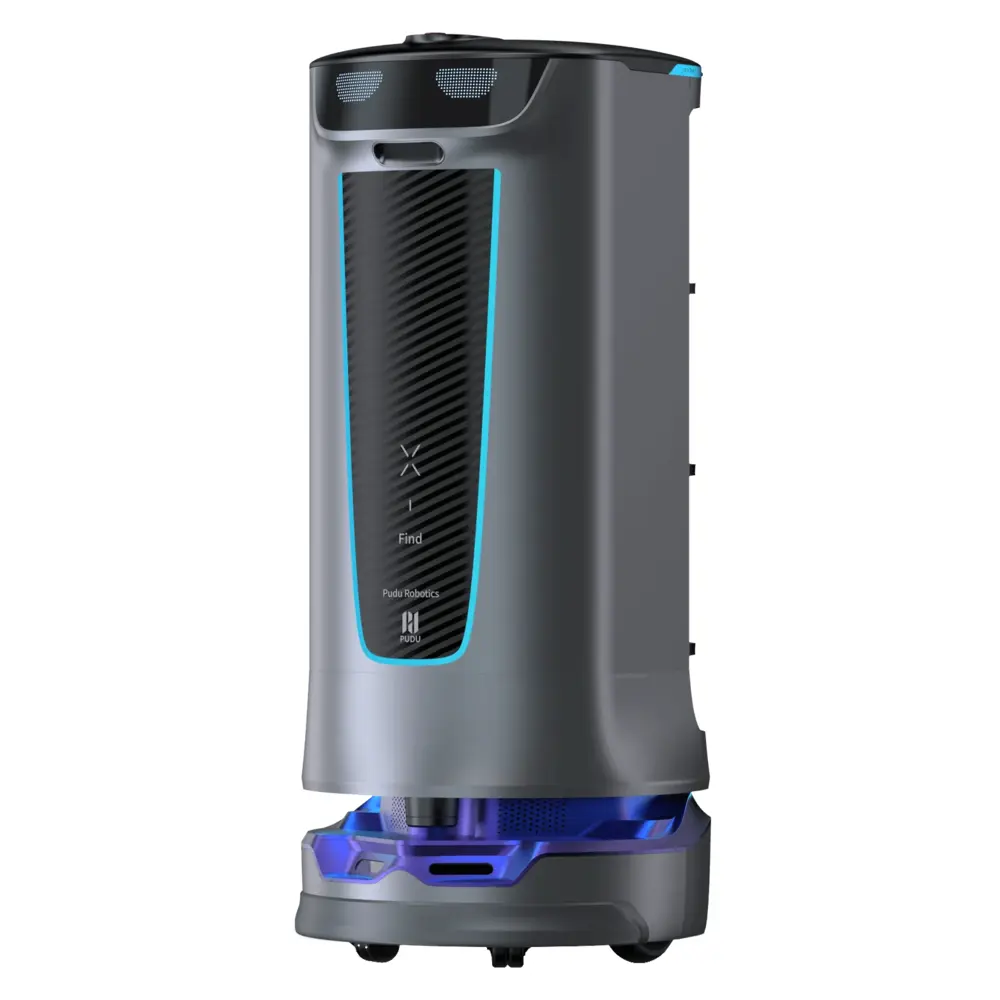

Pudu HolaBot
A Delivery Robot That Features Pager and Notifications
Pudu HolaBot innovatively applies autonomous delivery in food, medical, and other fields. With intelligent delivery, high carrying capacity, pagers, and a voice control module, Pudu HolaBot boosts the turnaround efficiency in restaurants and helps establish smart hospitals.

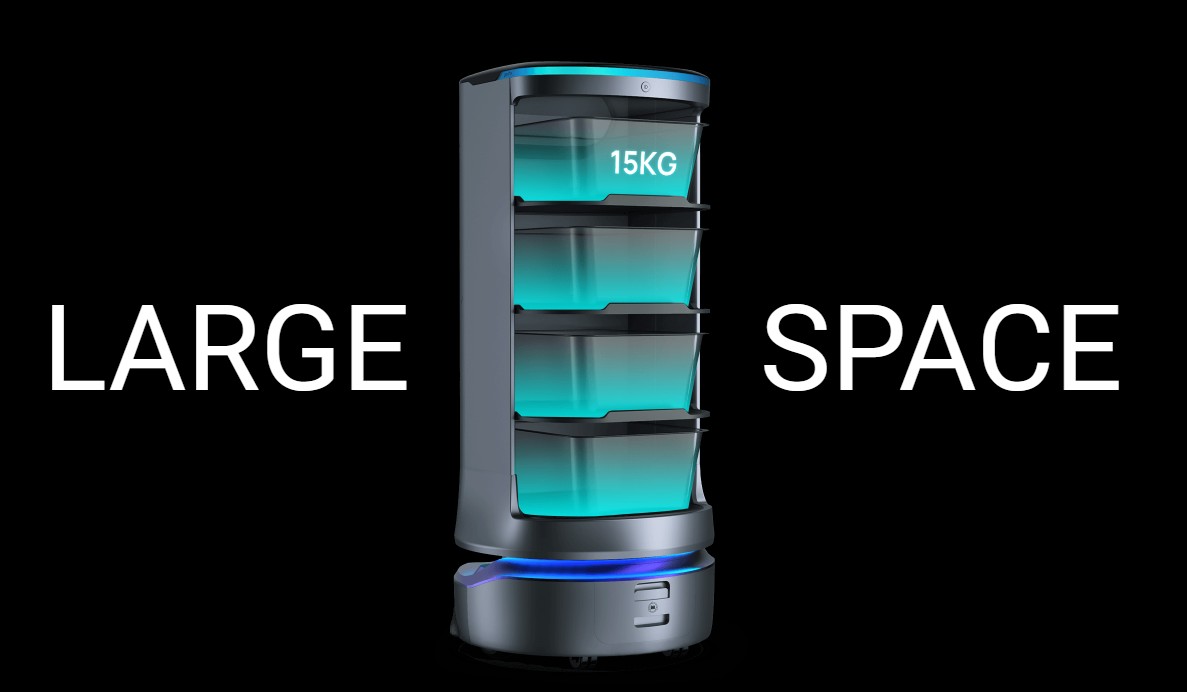

Ultra-large Capacity
60Kg carrying capacity, volume of 120L, 4 large-capacity trays, giving restaurants a much better turnover. It delivers medical stuff from the place of origin to the designated storage space without contact, improving efficiency and lowering infection rates.

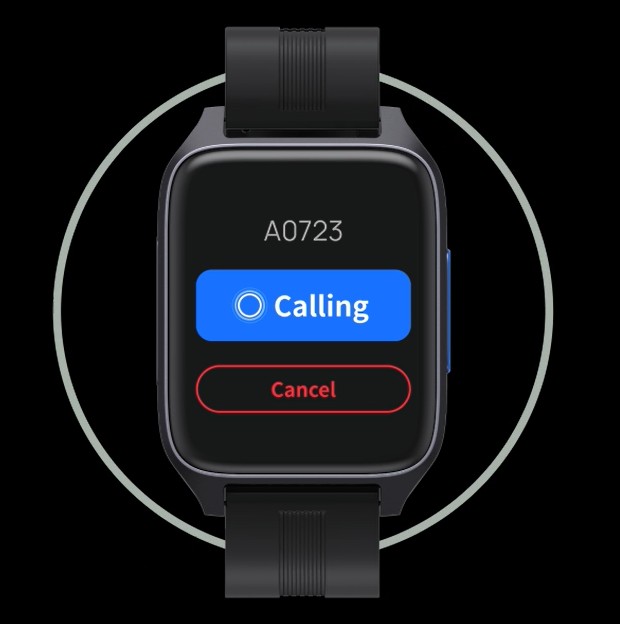

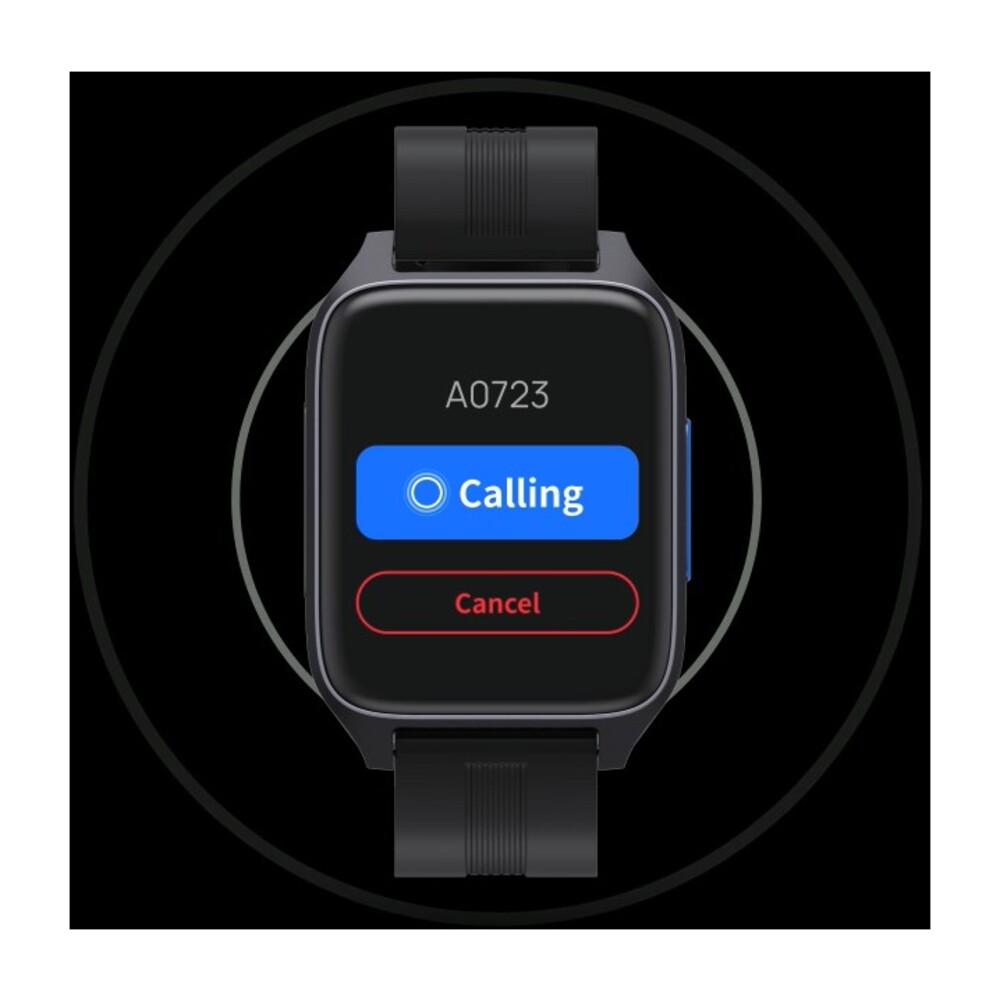

Pager Function
Pudu HolaBot comes with pager function, allowing you to call and assign tasks to the robot at any time.

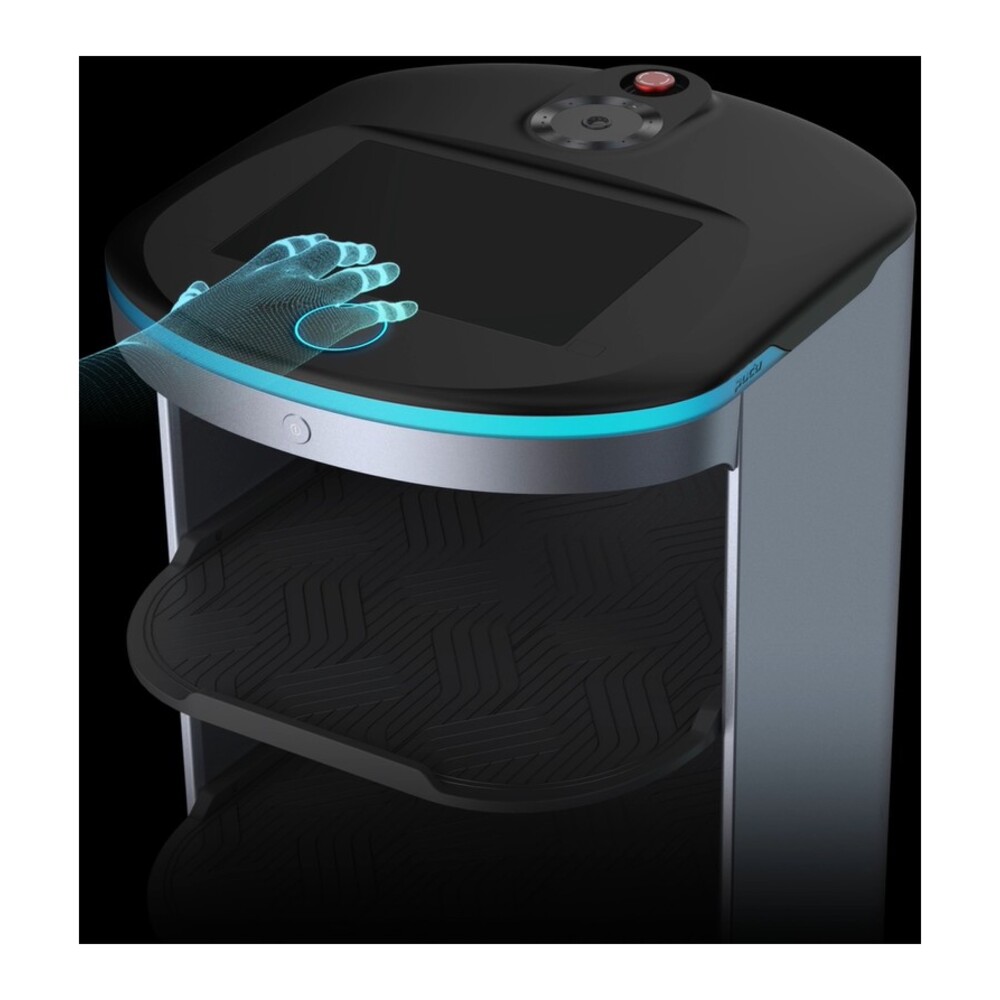

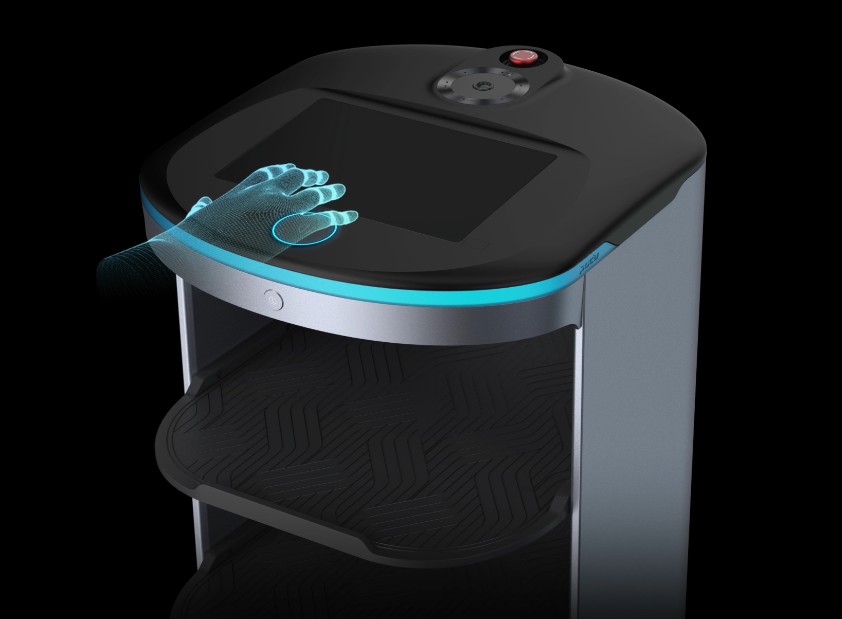

Air Motion
No need to touch the buttons, making it efficient and contactless.

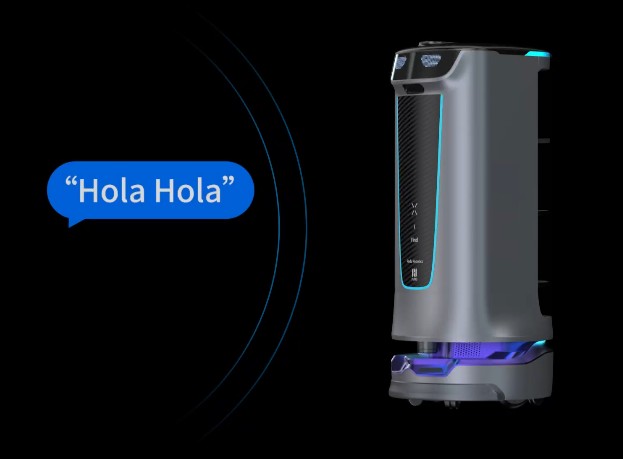

Sound Tracking
“Hola Hola” voice recognition, a 6-array omnidirectional microphone for the robot to locate sound source in real time and turn around intelligently.

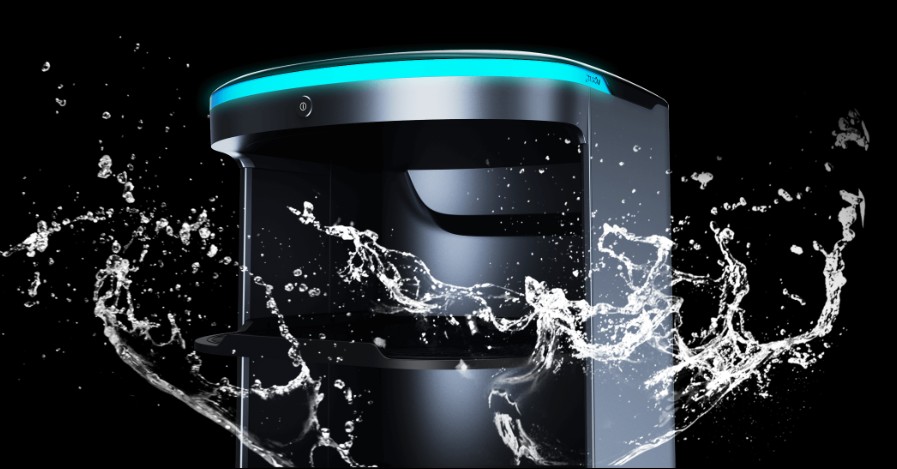

IPX5 Waterproof Inner Cabin
IPX5 waterproof inner cabin can effectively resist various liquid splashes in the working environment and keep the machine body clean.
Feature |
Description |
Operating voltage |
DC 23–29.4 V |
Power input |
AC 100–240 V, 50/60 Hz |
Power output |
29.4 V, 8 A |
Battery capacity |
25.6 Ah |
Charging time |
4.5 h |
Battery life |
12 h (None load) |
Cruise speed |
0.5–1.2 m/s (1.64-3.93 ft/s) |
Navigation method |
Laser and visual integrated SLAM positioning |
Minimum passing width |
70 cm (27.56 in) |
Minimum turning width |
70 cm (27.56 in) |
Maximum surmountable height |
7 mm (0.28 in) |
Maximum climbing angle |
5º |
Tray size |
390 mm × 360 mm (15.35×14.17 in), in a 120 L ultra-large compartment |
Number of trays |
4 |
Height between tray levels |
From top to bottom: 216 mm/184 mm/184 mm/184 mm (8.5 in/7.24 in/7.24 in/7.24 in) |
Tray supporting capacity |
Walking on flat surfaces: 15 kg (33.07 lbs)/level Crossing height of 5 mm(0.19 in): 10 kg (22.46 lbs) /level |
Overall material |
ABS/aviation grade aluminum alloy |
Overall weight |
55 kg (121.35 lbs) |
Overall dimensions |
542 mm × 534 mm × 1228 mm(21.34×21.02×48.35 in) |
Screen specifications |
10.1″ LCD display |
Operating system |
Android |
Microphone |
6-mic circular array kit |
Speaker power |
10 W ×2 stereo speaker |
Working environment |
Temperature: 0°C to 40°C (32° to 104° F) Humidity: ≤ 85% RH |
Storage environment |
Temperature: -40°C to 65°C (-40° to 149° F) Humidity: ≤ 85% RH |
Q&A
How many mapping modes do holabot have?
Marker mapping, Laser mapping, Marker + Laser mapping
How many functional modes holabot have?
4 modes: delivery, cruise, direct, collection
What is the load capacity of holabot?
15kg (33.07 pounds) per tray; 60 kg (132.28 pounds) for the robot.
What is the installation position or RGBD and lidar, and what is FOV(field of view)?
- Lidar installation position and FOV: 0.21m from bottom, FOV: 220°
- upper RGBD installation position: 1m from the bottom.
- Two types of upper RGBD: Astra mini, and HP60.
- Astra FOV: horizontally 58°, vertically 45°;
- HP60 FOV: horizontally 74°,vertically 59°
- lower RGBD installation position: 0.12 m from the bottom.
- Two types of lower RGBD: D430, and Dabai.
- D430 FOV: horizontally 85°, vertically 58°;
- Dabai: horizontally 65°, vertically 45°.
Why do some holabots have 2 holes on the upper computer and the others don’t?
If the standard version holabot does not have the 2 holes, it means it has lora module installed.
Can holabot be recharged with key switch on the OFF mode?
Yes
The difference between the new Lora module and old Lora module?
- Old Lora module is for central control lora watch.
- New Lora module is for the Pudu pager.
Are the Hola trays adjustable?
Yes
What do the expressions on the dot matrix screen mean?
Eye opening in movement, blinking when arriving, sleepy eye when at low battery.
Layout of the home page adjustable?
APK version 5.5.0.22 or above support
Holabot supports automatically crossing gate?
Yes
How do you turn on steady mode?
Speed settings
Can holabot be set to cruise mode while on low battery ?
If the holabot is taking the cruise task, and the battery drops below 10% (when the task starts, battery is above than 10%), it will cancel the task and return the set location.
*If you start a cruise task when the battery is already lower than 10%, it will only show the low battery warning, and won’t cancel the task.
Is there a Collection mode location limit?
20 maximum
Where are the advanced settings?
Tap on the blank continuously and then enter password to activate advanced settings.
Will holabot synchronize the map automatically?
No, you need to synchronize the map manually in the map settings.
How many calling way does the holabot have now?
Watch calling, pudulink calling, pager calling, NFC calling, and beeper calling.
Can you change or shut down the holabot emoji?
No
