- Series: Ascot
- Color: Nuvola
- Width: 35 3/8"
- Height: 35 7/16"
- Depth: 24 9/16"
- Style: Freestanding
- Fuel Type: Dual Fuel
- Gas Type: Natural Gas
- Burner/Element Type: Sealed Burner
- Number of Burners/Elements: 4
- Highest Burner Output: 13500 BTU
- Griddle: Yes
- Oven Total Capacity (cu. ft.): 3.2
- Convection: Yes
- Voltage: 240
- Amps: 25

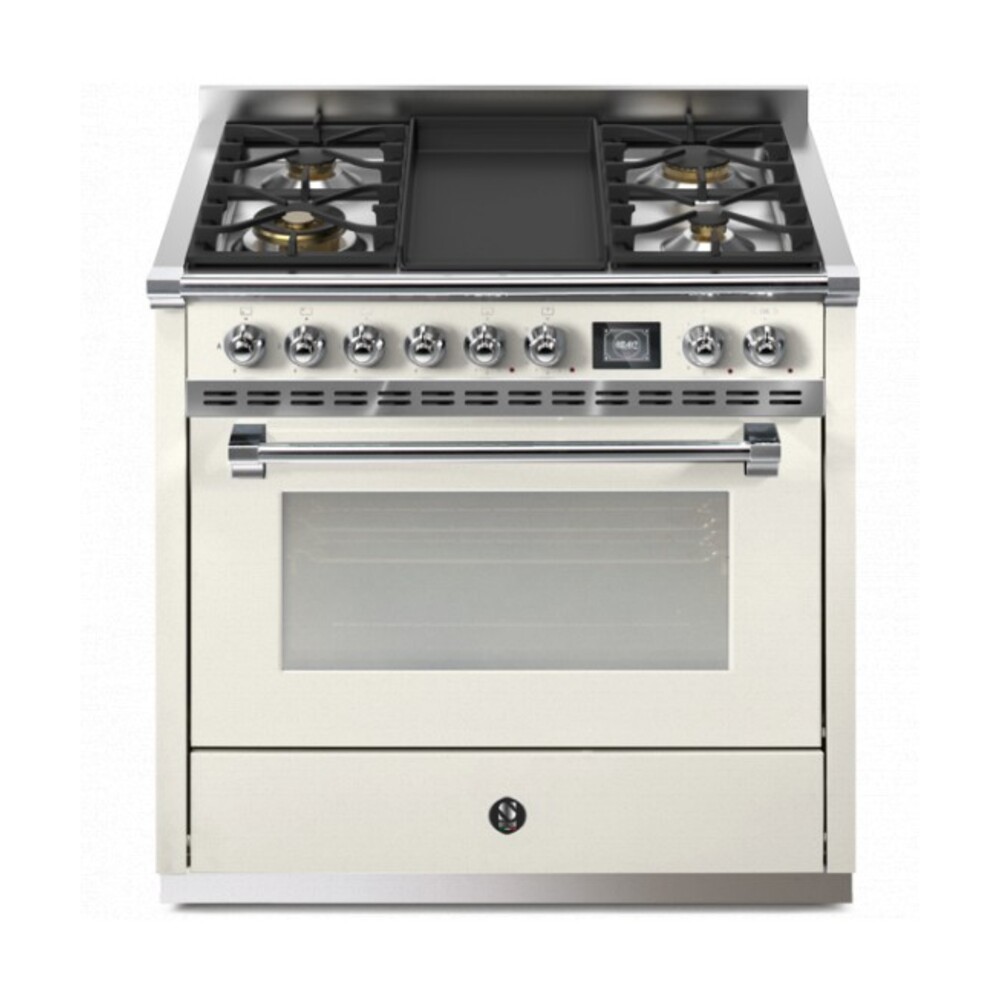

Steel AQY9S4TNAC 36 inch Ascot Series Rustico Style Dual Fuel Range with 4 Burners, Griddle, 3.2 cu. ft. Oven Capacity, and INNVENT System (Nuvola, Chrome)
- Series: Ascot
- Color: Nuvola
- Width: 35 3/8"
- Height: 35 7/16"
- Depth: 24 9/16"
- Style: Freestanding
- Fuel Type: Dual Fuel
- Gas Type: Natural Gas
- Burner/Element Type: Sealed Burner
- Number of Burners/Elements: 4
- Highest Burner Output: 13500 BTU
- Griddle: Yes
- Oven Total Capacity (cu. ft.): 3.2
- Convection: Yes
- Voltage: 240
- Amps: 25
Ascot
Elegance comes in many forms. When we were kids, being told to fix the collar of our shirt, sit straight, or tie our shoes seemed like minor matters. Yet now, we might be the ones teaching these little things to our children. We’ve come to recognize elegance in the small details. Can a range be elegant? An Ascot range can, indeed. With sinuous shapes, intense colors, and classic beauty—somewhat British—reinterpreted in a modern and refined design, Ascot embodies elegance. Looking at a range like this, we may recall the smell of the freshly baked tart your grandma used to prepare for the whole family. Our memories are important, and we collect them every day. Let’s do it in the best way we can. Ascot is already history.
Electric Frytop
Electric frytop dual zone, 2 X 1200 W

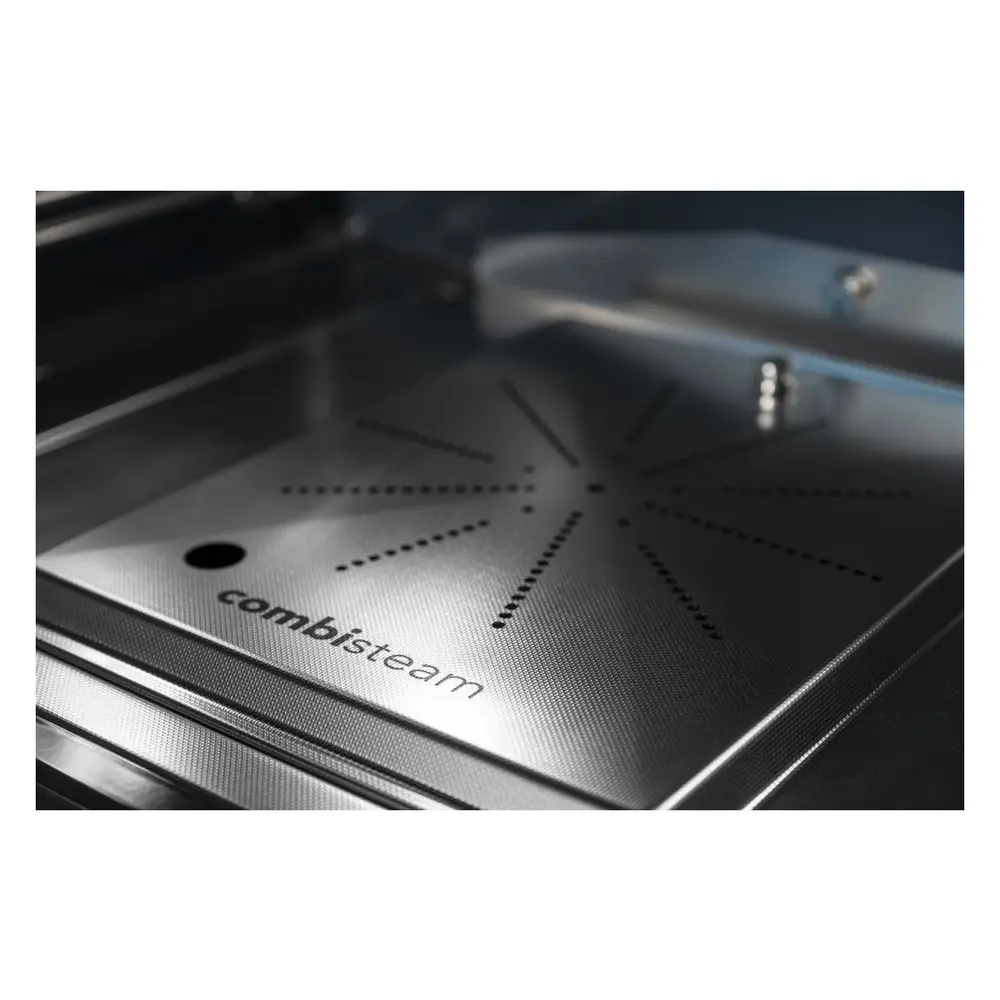

Combi-Steam
Combi-Steam to bake as you’ve always cooked, in shorter time, with less energy consumption, with better results
Oven Liners
Removable, dishwasher safe, stainless steel oven liners
Full Extension Telescopic Rack Rails
Full extension telescopic rack rails for easy access to the oven cavity
Soft Closing Hinges
Soft closing hinges softly guide the door shut so the oven door never slams
INNVENT System

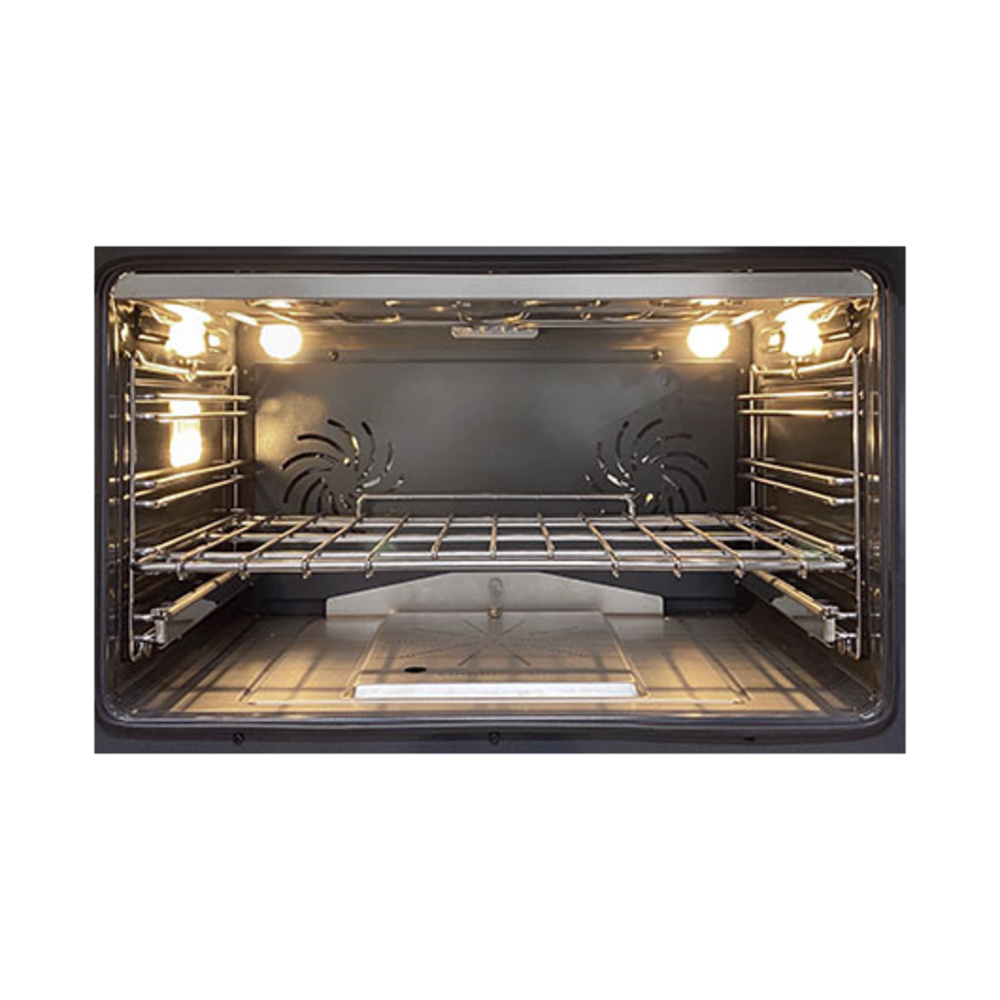

Steel’s patented INNVENT system with double inverted rotation of the fans distributes heat evenly throughout the oven’s cavity, not only vertically on different levels, but also horizontally on each level, allowing impeccable and homogeneous cooking. Your oven door can remain closed all the cooking time, because you won’t have the need to rotate the tray halfway.

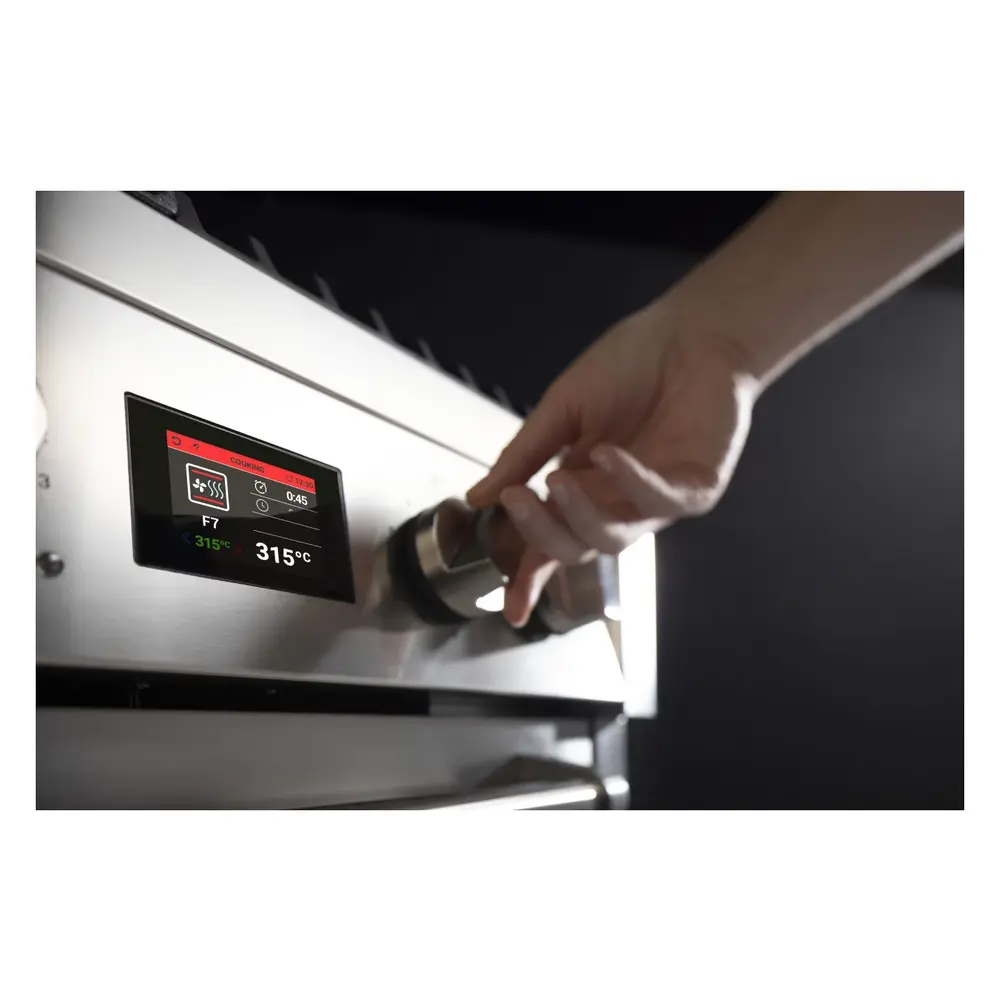

TFT Programmer
TFT programmer. 11 cooking functions – 34 pre set recipes – eco mode – Sabbath mode – traditional and fan assisted steam
Cooktop Features:
- TOTAL COOKING ZONES 6 (4 burners + dual frytop)
- TOTAL COOK TOP (NG/LP) BTU 36700 / 28700
- SIMMER (NG/LP) BTU 4200 / 3000
- SEMI-RAPID (NG/LP) BTU 7500 / 5600
- RAPID (NG/LP) BTU 11500 / 9500
- WOK (NG/LP) BTU 13500/10600
- FRYTOP 2 X 1200 W
Main Oven Features:
- BAKE/BROIL ELEMENT WATTS 1000 + 2800 W
- CONVECTION ELEMENT WATTS 2500 W
- LOWER ELEMENT WATTS 1400 W
- OVEN VOLUME 3.2 cubic feet
Specifications | |
| Brand | Steel |
| Series | Ascot |
| Appliance Category | Range |
Appearance | |
| Color | Nuvola |
| Color Family | White |
| Design Style | Retro Style |
| Trim | Chrome |
Dimensions | |
| Exterior Width | 36" |
| Width | 35 3/8" |
| Depth | 24 9/16" |
| Height | 35 7/16" |
Fuel Type | |
| Fuel Type | Dual Fuel |
| Gas Type | Natural Gas |
Style | |
| Style | Freestanding |
| Control Location | Front |
Capacity | |
| Number of Ovens | Single Oven |
| Oven Total Capacity (cu. ft.) | 3.2 |
Cooking Surface | |
| Burner/Element Type | Sealed Burner |
| Number of Burners/Elements | 4 |
| Grill | No |
| Griddle | Yes |
| French Top | No |
| Highest Burner Output | 13500 BTU |
| Burner/Element Output N1 | 4200 BTU |
| Burner/Element Output N2 | 7500 BTU |
| Burner/Element Output N3 | 11500 BTU |
| Burner/Element Output N4 | 13500 BTU |
| Griddle Output | 2400 Watts |
Oven | |
| Oven Control Type | Touchpad and Knobs |
| Oven Cleaning Type | Manual Clean |
| Interior Width | 23 13/16" |
| Interior Height | 13 25/32" |
| Interior Depth | 16 59/64" |
Smart Features | |
| Smart Appliance | No |
| Wi-Fi | No |
Technical Details | |
| Voltage | 240 |
| Amps | 25 |
Features | |
| Convection | Yes |
| Fingerprint Resistant | No |
| Air Fry | No |
| Cooktop Control Type | Knobs |
| Drawer | None |
| Steam Oven | Yes |
| LP Convertible | Yes |
| Gas Conversion Kit Included | Yes |
| Brand | Steel |
|---|---|
| Series | Ascot |
| Appliance Category | Range |
|
Appearance |
|
| Color | Nuvola |
| Color Family | White |
| Design Style | Retro Style |
| Trim | Chrome |
|
Dimensions |
|
| Exterior Width | 36" |
| Width | 35 3/8" |
| Depth | 24 9/16" |
| Height | 35 7/16" |
|
Fuel Type |
|
| Fuel Type | Dual Fuel |
| Gas Type | Natural Gas |
|
Style |
|
| Style | Freestanding |
| Control Location | Front |
|
Capacity |
|
| Number of Ovens | Single Oven |
| Oven Total Capacity (cu. ft.) | 3.2 |
|
Cooking Surface |
|
| Burner/Element Type | Sealed Burner |
| Number of Burners/Elements | 4 |
| Grill | No |
| Griddle | Yes |
| French Top | No |
| Highest Burner Output | 13500 BTU |
| Burner/Element Output N1 | 4200 BTU |
| Burner/Element Output N2 | 7500 BTU |
| Burner/Element Output N3 | 11500 BTU |
| Burner/Element Output N4 | 13500 BTU |
| Griddle Output | 2400 Watts |
|
Oven |
|
| Oven Control Type | Touchpad and Knobs |
| Oven Cleaning Type | Manual Clean |
| Interior Width | 23 13/16" |
| Interior Height | 13 25/32" |
| Interior Depth | 16 59/64" |
|
Smart Features |
|
| Smart Appliance | No |
| Wi-Fi | No |
|
Technical Details |
|
| Voltage | 240 |
| Amps | 25 |
|
Features |
|
| Convection | Yes |
| Fingerprint Resistant | No |
| Air Fry | No |
| Cooktop Control Type | Knobs |
| Drawer | None |
| Steam Oven | Yes |
| LP Convertible | Yes |
| Gas Conversion Kit Included | Yes |
