- Series: Ascot
- Color: Anthracite
- Width: 35 3/8"
- Height: 35 7/16"
- Depth: 24 9/16"
- Style: Freestanding
- Fuel Type: Electric
- Burner/Element Type: Induction Element
- Number of Burners/Elements: 5
- Highest Element Output: 3700 Watts
- Oven Total Capacity (cu. ft.): 3.2
- Convection: Yes
- Voltage: 240
- Amps: 50

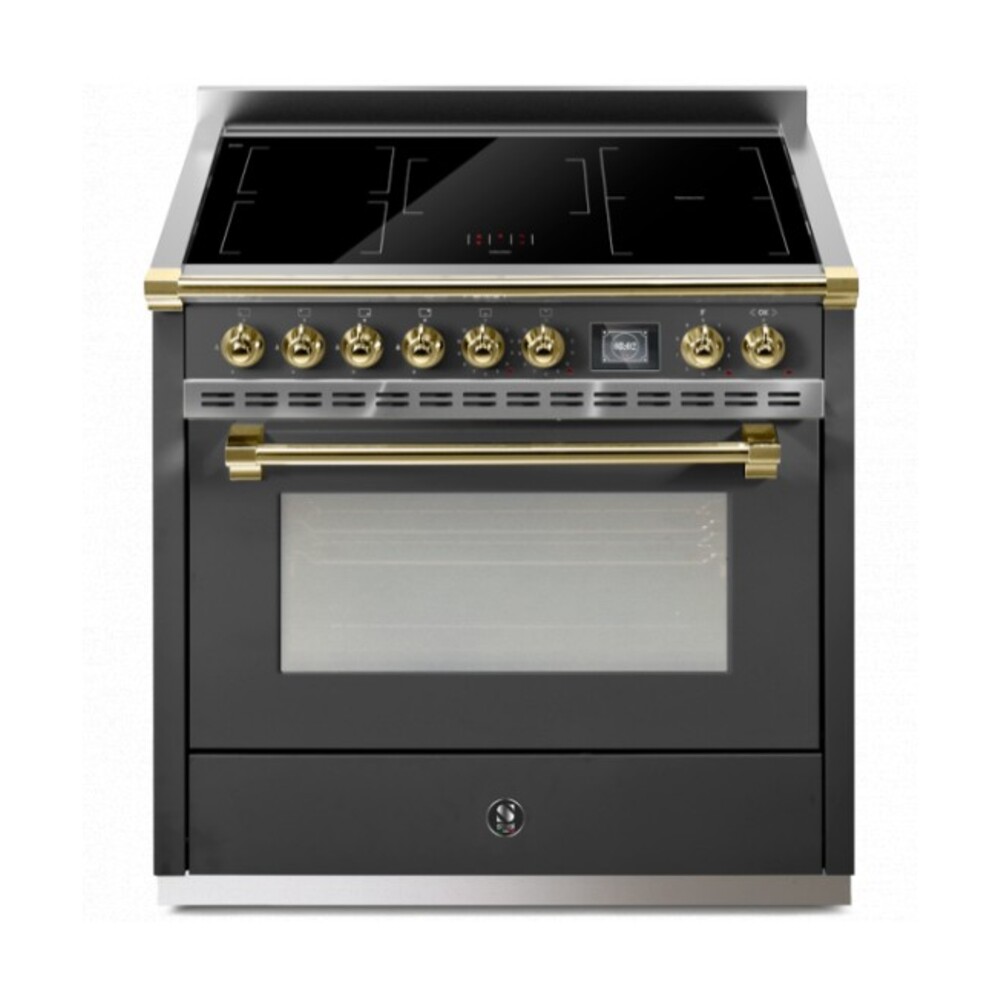

Steel AQY9S5FIANO 36 inch Ascot Series Rustico Style Induction Range with 5 Elements, Bridge Function, 3.2 cu. ft. Total Oven Capacity and INNVENT System (Anthracite)
- Series: Ascot
- Color: Anthracite
- Width: 35 3/8"
- Height: 35 7/16"
- Depth: 24 9/16"
- Style: Freestanding
- Fuel Type: Electric
- Burner/Element Type: Induction Element
- Number of Burners/Elements: 5
- Highest Element Output: 3700 Watts
- Oven Total Capacity (cu. ft.): 3.2
- Convection: Yes
- Voltage: 240
- Amps: 50
Ascot
Elegance comes in many forms. When we were kids, being told to fix the collar of our shirt, sit straight, or tie our shoes seemed like minor matters. Yet now, we might be the ones teaching these little things to our children. We’ve come to recognize elegance in the small details. Can a range be elegant? An Ascot range can, indeed. With sinuous shapes, intense colors, and classic beauty—somewhat British—reinterpreted in a modern and refined design, Ascot embodies elegance. Looking at a range like this, we may recall the smell of the freshly baked tart your grandma used to prepare for the whole family. Our memories are important, and we collect them every day. Let’s do it in the best way we can. Ascot is already history.

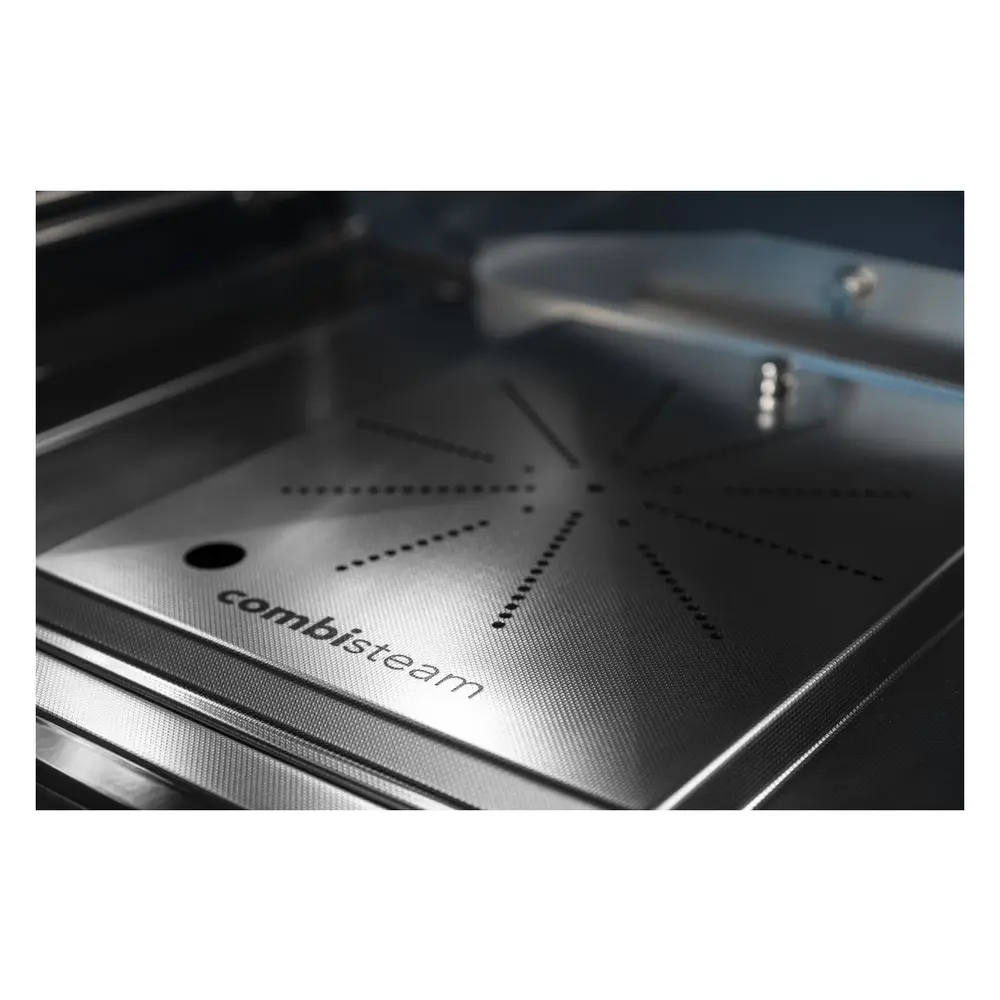

Combi-Steam
Combi-Steam to bake as you’ve always cooked, in shorter time, with less energy consumption, with better results
Oven Liners
Removable, dishwasher safe, stainless steel oven liners
Full Extension Telescopic Rack Rails
Full extension telescopic rack rails for easy access to the oven cavity
Soft Closing Hinges
Soft closing hinges softly guide the door shut so the oven door never slams
INNVENT System
Steel’s patented INNVENT system with double inverted rotation of the fans distributes heat evenly throughout the oven’s cavity, not only vertically on different levels, but also horizontally on each level, allowing impeccable and homogeneous cooking. Your oven door can remain closed all the cooking time, because you won’t have the need to rotate the tray halfway.
TFT Programmer
TFT programmer. 11 cooking functions – 34 pre set recipes – eco mode – Sabbath mode – traditional and fan assisted steam
Cooktop Features:
- TOTAL COOKING ZONES 5 (3 single + 2 flex)
- ZONE 1 FRONT LEFT 1,85 kW – 3 kW
- ZONE 2 REAR LEFT 1,85 kW – 3 kW
- ZONE 3 CENTER 2,3 kW – 3,7 kW
- ZONE 4 FRONT RIGHT 2,10 kW – 3,7 kW
- ZONE 5 REAR RIGHT 2,3 kW – 3,7 kW
- POWER LEVELS 10
- FUNCTIONS: RAPID HEATING, BOOSTER, FOOD WARMING, MELTING, BRIDGE, CHILD LOCK, AUTO SWITCH OFF
Main Oven Features:
- BAKE/BROIL ELEMENT WATTS 1000 + 2800 W
- CONVECTION ELEMENT WATTS 2500 W
- LOWER ELEMENT WATTS 1400 W
- OVEN VOLUME 3.2 cubic feet
Specifications | |
| Brand | Steel |
| Series | Ascot |
| Appliance Category | Range |
Appearance | |
| Color | Anthracite |
| Color Family | Gray |
| Design Style | Retro Style |
| Trim | Brass |
Dimensions | |
| Exterior Width | 36" |
| Width | 35 3/8" |
| Depth | 24 9/16" |
| Height | 35 7/16" |
Fuel Type | |
| Fuel Type | Electric |
Style | |
| Style | Freestanding |
| Control Location | Front |
Capacity | |
| Number of Ovens | Single Oven |
| Oven Total Capacity (cu. ft.) | 3.2 |
Cooking Surface | |
| Burner/Element Type | Induction Element |
| Number of Burners/Elements | 5 |
| Grill | No |
| Griddle | No |
| French Top | No |
| Highest Element Output | 3700 Watts |
| Burner/Element Output N1 | 3000 Watts |
| Burner/Element Output N2 | 3000 Watts |
| Burner/Element Output N3 | 3700 Watts |
| Burner/Element Output N4 | 3700 Watts |
| Burner/Element Output N5 | 3700 Watts |
Oven | |
| Oven Control Type | Touchpad and Knobs |
| Oven Cleaning Type | Manual Clean |
| Interior Width | 23 13/16" |
| Interior Height | 13 25/32" |
| Interior Depth | 16 59/64" |
Smart Features | |
| Smart Appliance | No |
| Wi-Fi | No |
Technical Details | |
| Voltage | 240 |
| Amps | 50 |
Features | |
| Convection | Yes |
| Fingerprint Resistant | No |
| Air Fry | No |
| Cooktop Control Type | Knobs |
| Drawer | None |
| Steam Oven | Yes |
| Brand | Steel |
|---|---|
| Series | Ascot |
| Appliance Category | Range |
|
Appearance |
|
| Color | Anthracite |
| Color Family | Gray |
| Design Style | Retro Style |
| Trim | Brass |
|
Dimensions |
|
| Exterior Width | 36" |
| Width | 35 3/8" |
| Depth | 24 9/16" |
| Height | 35 7/16" |
|
Fuel Type |
|
| Fuel Type | Electric |
|
Style |
|
| Style | Freestanding |
| Control Location | Front |
|
Capacity |
|
| Number of Ovens | Single Oven |
| Oven Total Capacity (cu. ft.) | 3.2 |
|
Cooking Surface |
|
| Burner/Element Type | Induction Element |
| Number of Burners/Elements | 5 |
| Grill | No |
| Griddle | No |
| French Top | No |
| Highest Element Output | 3700 Watts |
| Burner/Element Output N1 | 3000 Watts |
| Burner/Element Output N2 | 3000 Watts |
| Burner/Element Output N3 | 3700 Watts |
| Burner/Element Output N4 | 3700 Watts |
| Burner/Element Output N5 | 3700 Watts |
|
Oven |
|
| Oven Control Type | Touchpad and Knobs |
| Oven Cleaning Type | Manual Clean |
| Interior Width | 23 13/16" |
| Interior Height | 13 25/32" |
| Interior Depth | 16 59/64" |
|
Smart Features |
|
| Smart Appliance | No |
| Wi-Fi | No |
|
Technical Details |
|
| Voltage | 240 |
| Amps | 50 |
|
Features |
|
| Convection | Yes |
| Fingerprint Resistant | No |
| Air Fry | No |
| Cooktop Control Type | Knobs |
| Drawer | None |
| Steam Oven | Yes |
