- Color: Panel Ready
- Width: 23 5/8"
- Height: 32 1/4"
- Depth: 23"
- Type: Built-In or Freestanding
- Style: All Refrigerator
- Total Capacity (cu. ft.): 5.5
- Counter-Depth: Yes
- Hinge Side: Left Hinge
- ADA Compliant: Yes
- Voltage: 115
- Amps: 1.4
Summit AR5BIFLHD 24 inch Compact Refrigerator with 5.5 cu. ft. Capacity, ADA Compliant, Wine Shelf, in Panel Ready (Left Hinge)
- Color: Panel Ready
- Width: 23 5/8"
- Height: 32 1/4"
- Depth: 23"
- Type: Built-In or Freestanding
- Style: All Refrigerator
- Total Capacity (cu. ft.): 5.5
- Counter-Depth: Yes
- Hinge Side: Left Hinge
- ADA Compliant: Yes
- Voltage: 115
- Amps: 1.4
Features:
ADA Compliant
32″ height to fit under lower ADA compliant counters
Slim Undercounter Dimensions
Ideal 24″ footprint offers full 5.5 cu.ft. storage capacity in a slim fit
Built-In Capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets

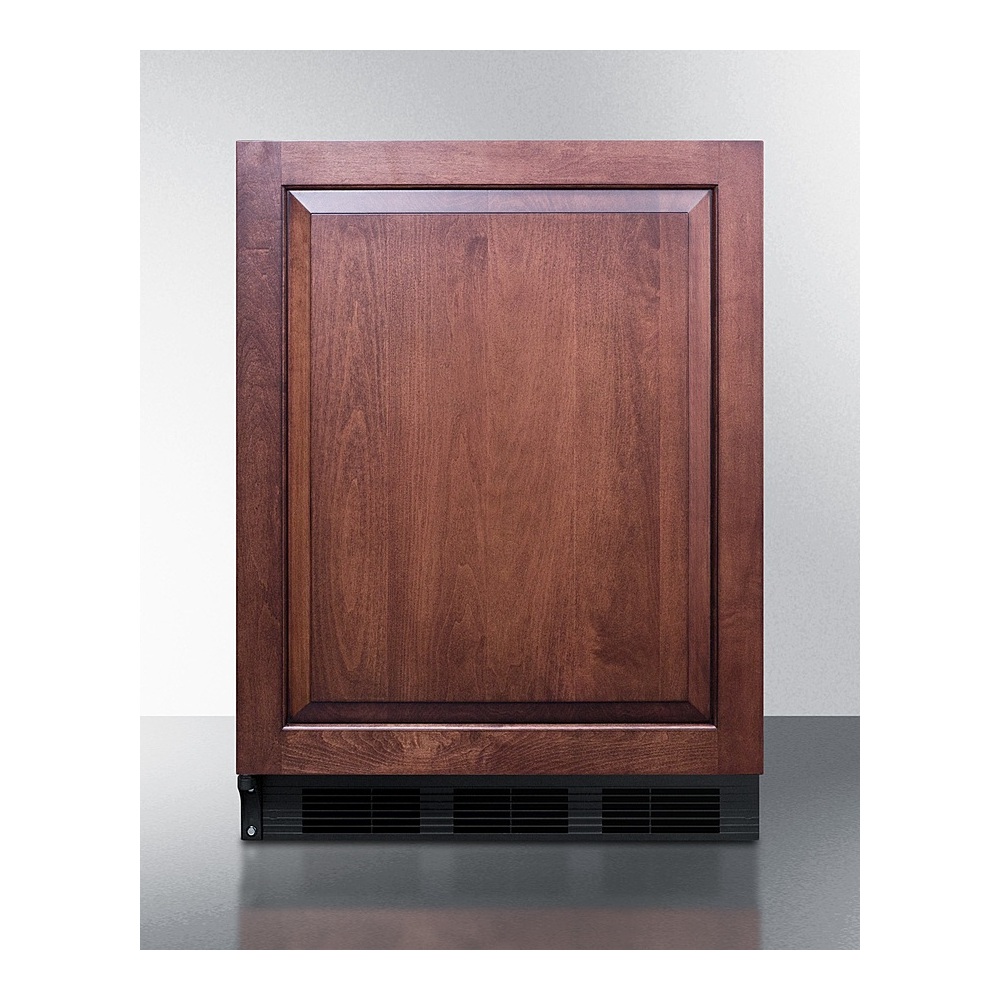

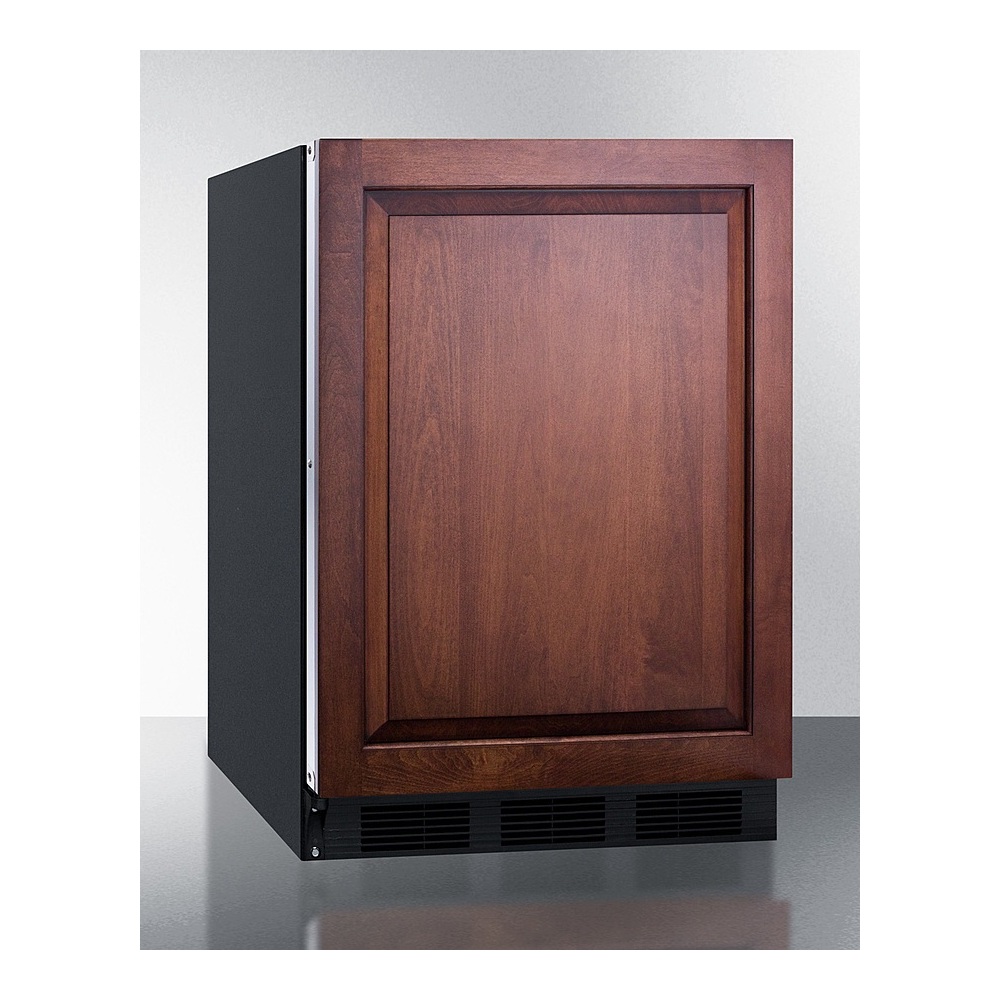

Panel-Ready Door
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16″ W x 28 1/4″ H and at least 3/4″ thick; maximum weight: 10 lbs.)
Automatic Defrost
Reduced maintenance with auto defrost system

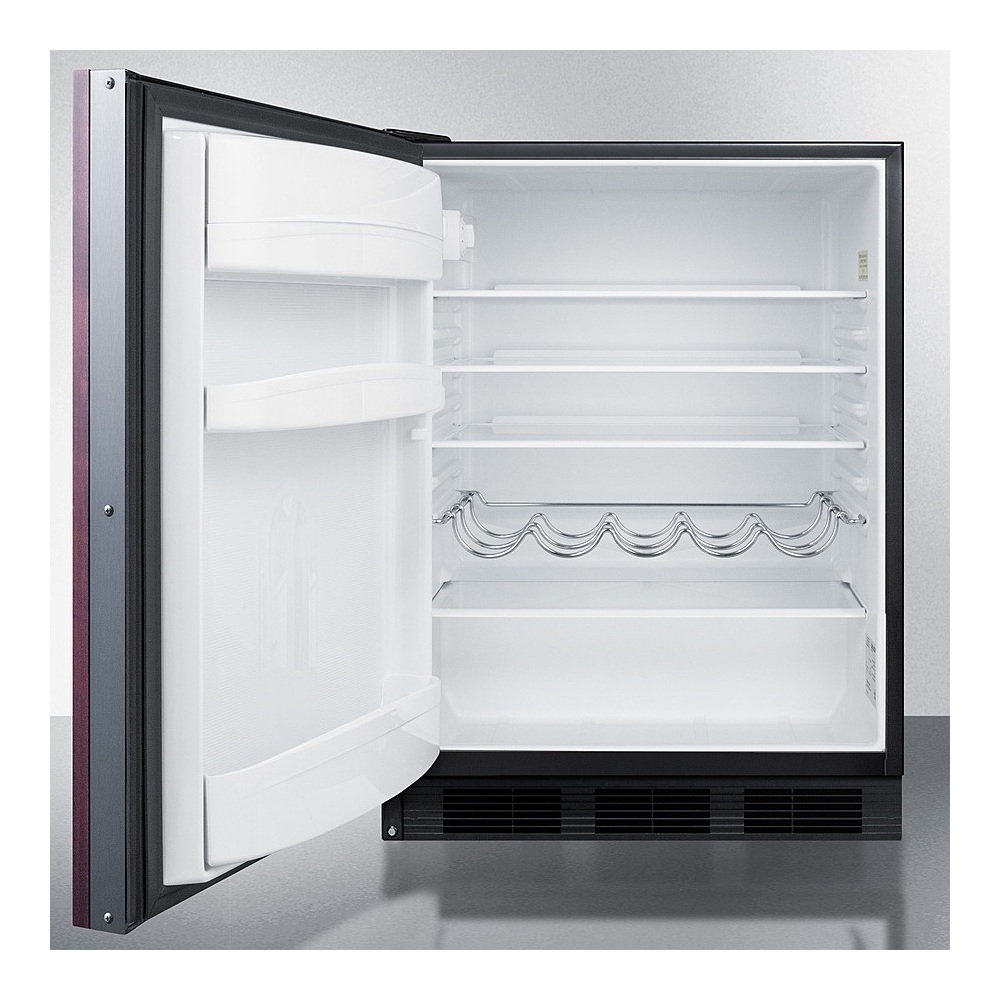

Adjustable Glass Shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Door Shelves
Store tall bottles and condiments right on the door for convenient access

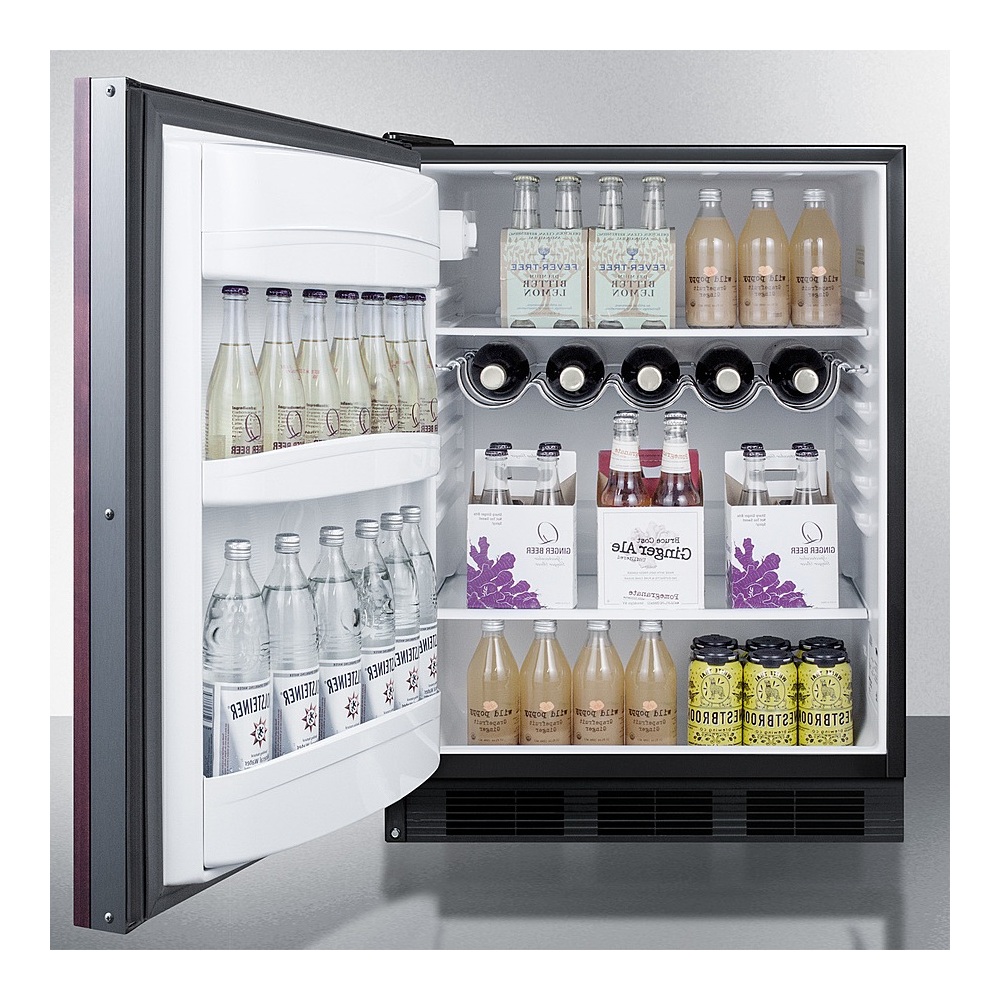

Wine Shelf
Removable scalloped wine shelf is included to store champagne and wine bottles
Interior Light
Automatically illuminates when you open the door
One Piece Interior Liner
Easy clean-up with a seamless liner that won’t hold a mess in hidden crevices
Hidden Evaporator
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Adjustable Thermostat
Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management
Fully Finished Black Cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Warranty:
1 Year Parts and Labor, 5 Years Compressor Warranty
Specifications | |
| Brand | Summit |
Appearance | |
| Color | Panel Ready |
| Color Family | Panel Ready |
| Hinge Side | Left Hinge |
| Size | Compact |
| Number of Doors | 1 |
Dimensions | |
| Exterior Width | 24" |
| Width | 23 5/8" |
| Depth | 23" |
| Height | 32 1/4" |
| Depth with Door Opened at 90 Degrees | 45 3/8" |
| Counter-Depth | Yes |
| Height without Hinges | 32 |
Style | |
| Style | All Refrigerator |
| Type | Built-In or Freestanding |
| Freezer | No |
Capacity | |
| Total Capacity (cu. ft.) | 5.5 |
Technical Details | |
| Voltage | 115 |
| Amps | 1.4 |
| Flush Installation | No |
Certifications | |
| ADA Compliant | Yes |
| Energy Star | No |
| Approved for Commercial Use | No |
| Approved for Medical Use | No |
Features | |
| Ice Maker | No |
| Water Dispenser | No |
| Type of Shelves | Glass |
| Number of Shelves | 3 |
| Split Shelves | No |
| Door Alarm | No |
| Sabbath Mode | No |
| Defrost Type | Automatic |
| Interior Color | White |
| Spill Proof Shelves | Yes |
| Convertible Freezer/Refrigerator | No |
| Accepts Custom Panels | Yes |
| Approved for Outdoor Use | No |
| Door Lock | No |
| Crisper | No |
| Undercounter | Yes |
| Reversible Door | No |
| Brand | Summit |
|---|---|
|
Appearance |
|
| Color | Panel Ready |
| Color Family | Panel Ready |
| Hinge Side | Left Hinge |
| Size | Compact |
| Number of Doors | 1 |
|
Dimensions |
|
| Exterior Width | 24" |
| Width | 23 5/8" |
| Depth | 23" |
| Height | 32 1/4" |
| Depth with Door Opened at 90 Degrees | 45 3/8" |
| Counter-Depth | Yes |
| Height without Hinges | 32 |
|
Style |
|
| Style | All Refrigerator |
| Type | Built-In or Freestanding |
| Freezer | No |
|
Capacity |
|
| Total Capacity (cu. ft.) | 5.5 |
|
Technical Details |
|
| Voltage | 115 |
| Amps | 1.4 |
| Flush Installation | No |
|
Certifications |
|
| ADA Compliant | Yes |
| Energy Star | No |
| Approved for Commercial Use | No |
| Approved for Medical Use | No |
|
Features |
|
| Ice Maker | No |
| Water Dispenser | No |
| Type of Shelves | Glass |
| Number of Shelves | 3 |
| Split Shelves | No |
| Door Alarm | No |
| Sabbath Mode | No |
| Defrost Type | Automatic |
| Interior Color | White |
| Spill Proof Shelves | Yes |
| Convertible Freezer/Refrigerator | No |
| Accepts Custom Panels | Yes |
| Approved for Outdoor Use | No |
| Door Lock | No |
| Crisper | No |
| Undercounter | Yes |
| Reversible Door | No |
Summit AR5BIFLHD 24 inch Compact Refrigerator with 5.5 cu. ft. Capacity, ADA Compliant, Wine Shelf, in Panel Ready (Left Hinge)
