- Color: Black
- Width: 20"
- Height: 5 1/2"
- Depth: 20"
- Type: Hood
- Style: Standard Hood
- CFM: 270
- Blower Type: Internal
- Light Bulb Type: Incandescent
- Venting Type: Convertible
- Voltage: 115
- Amps: 15
Summit HC20BB 20 inch Convertible Hood with 270 CFM, Two-Speed Fan, and Combination Charcoal/Aluminum Mesh Filter (Black)
Availability: In Stock
Availability: In Stock
Availability: In Stock
- Color: Black
- Width: 20"
- Height: 5 1/2"
- Depth: 20"
- Type: Hood
- Style: Standard Hood
- CFM: 270
- Blower Type: Internal
- Light Bulb Type: Incandescent
- Venting Type: Convertible
- Voltage: 115
- Amps: 15
Features:
Under cabinet range hood
Low profile design offers classic style to finish your kitchen
20 inch width
Sized for use over 20 inch cooking surfaces (additional sizes available)
Convertible design
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Easy conversion
Ships pre-set for recirculating mode but can be converted in a few simple steps
Versatile top or rear exhaust
Ships for standard 3 1/4″ x 10″ vertical or horizontal exterior venting and convertible to a 7″ round vertical venting without transition
Steel construction
Powder-coated finish over a 21 gauge steel design for lasting durability

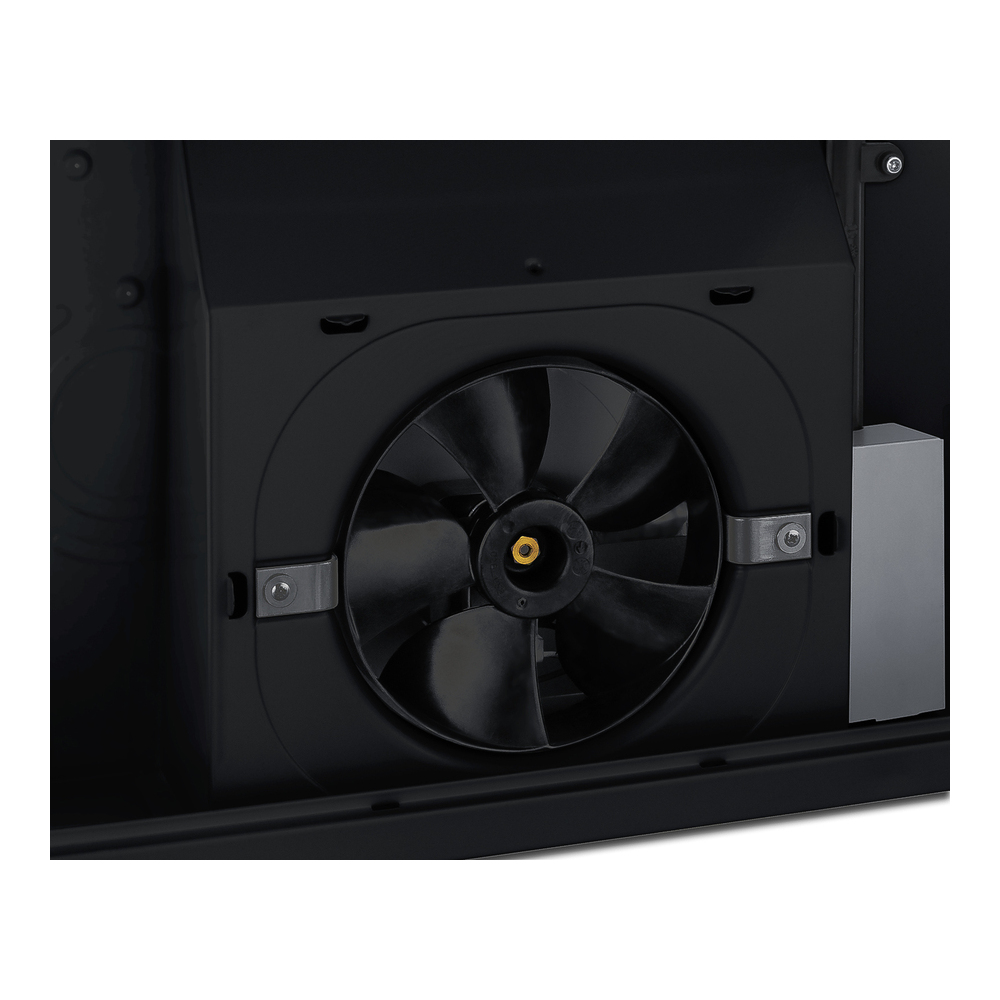

Two-speed fan
High and low setting to allow proper ventilation of your kitchen as needed
Accepts a standard bulb
Designed to hold a standard incandescent light bulb with easy installation and no tools required
Combination charcoal/aluminum mesh filter
Aluminum filter includes charcoal filler to absorb smoke, grease, and odors for a cleaner kitchen experience
Removable filter
Snap-in design allows you to easily remove the filter for fast replacing as needed
Rocker switch controls
Front-located on/off and high/low switches make it easy to manage the light and fan
Professional installation
Designed to be hard-wired by a licensed professional
Made in North America
TAA compliant
Specifications | |
| Brand | Summit |
Appearance | |
| Color | Black |
| Color Family | Black |
Dimensions | |
| Exterior Width | 20" |
| Width | 20" |
| Depth | 20" |
| Height | 5 1/2" |
Style | |
| Style | Standard Hood |
| Type | Hood |
| Mounting Type | Under Cabinet |
| Fan | Yes |
Technical Details | |
| Voltage | 115 |
| Amps | 15 |
| Duct Type | Both |
| Duct Diameter | 7" |
| Duct Length | 3 1/4" |
| Duct Width | 10" |
| Frequency | 60 Hz. |
| Vent Location | Top or Rear |
Certifications | |
| ADA Compliant | No |
Features | |
| Convertible Ducting | Yes |
| CFM | 270 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | Incandescent |
| Number of Fan Speeds | 2 |
| Light | Light Bulbs Not Included |
| Recirculating Kit | Included |
| Brand | Summit |
|---|---|
|
Appearance |
|
| Color | Black |
| Color Family | Black |
|
Dimensions |
|
| Exterior Width | 20" |
| Width | 20" |
| Depth | 20" |
| Height | 5 1/2" |
|
Style |
|
| Style | Standard Hood |
| Type | Hood |
| Mounting Type | Under Cabinet |
| Fan | Yes |
|
Technical Details |
|
| Voltage | 115 |
| Amps | 15 |
| Duct Type | Both |
| Duct Diameter | 7" |
| Duct Length | 3 1/4" |
| Duct Width | 10" |
| Frequency | 60 Hz. |
| Vent Location | Top or Rear |
|
Certifications |
|
| ADA Compliant | No |
|
Features |
|
| Convertible Ducting | Yes |
| CFM | 270 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | Incandescent |
| Number of Fan Speeds | 2 |
| Light | Light Bulbs Not Included |
| Recirculating Kit | Included |
Summit HC20BB 20 inch Convertible Hood with 270 CFM, Two-Speed Fan, and Combination Charcoal/Aluminum Mesh Filter (Black)
