- Color: Stainless Steel
- Width: 30 13/16"
- Height: 5 1/4"
- Depth: 22 7/8"
- Type: Cooktop
- Style: Drop-In
- Fuel Type: Electric
- Burner/Element Type: Radiant Element
- Number of Burners/Elements: 5
- Highest Element Output: 3000 Watts
- ADA Compliant: Yes
- Voltage: 208
- Cutout Width: 29 563/1000"
- Cutout Depth: 20 563/1000"

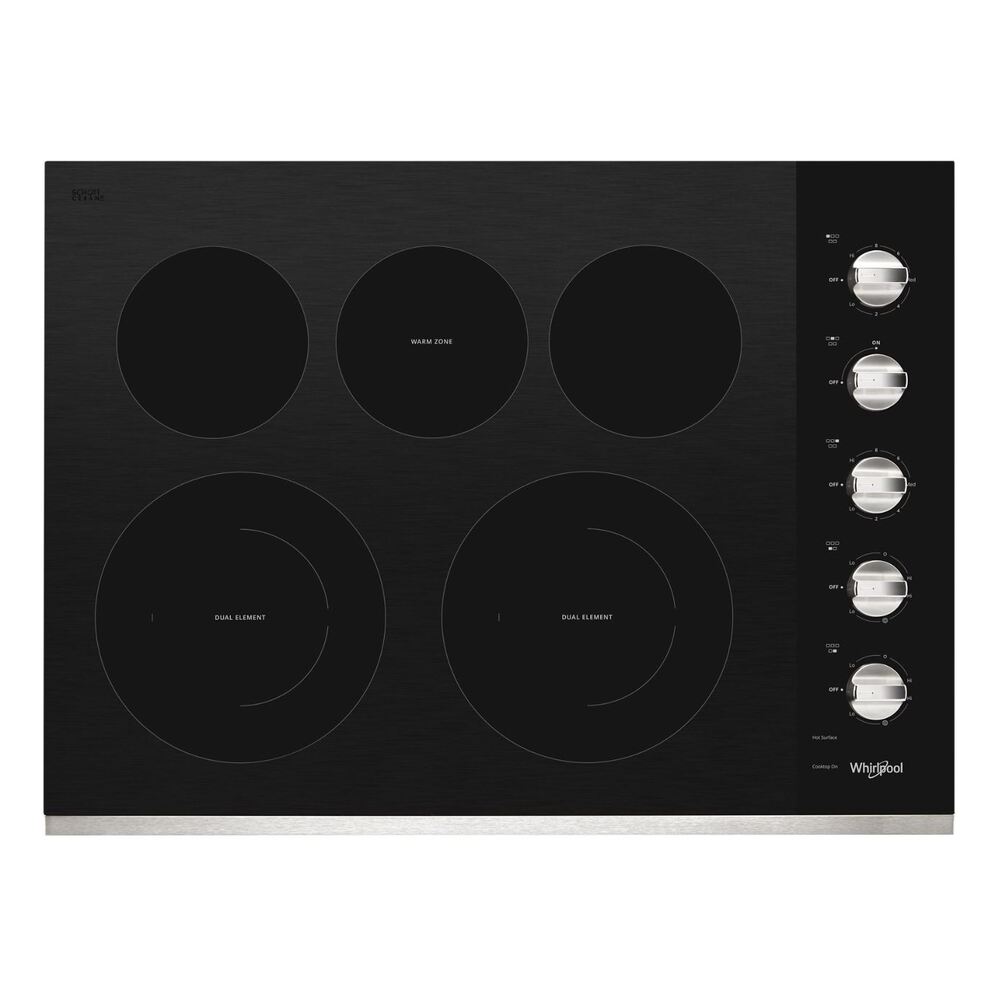

Whirlpool WCE77US0HS 30 inch Electric Cooktop with 5 Radiant Elements, 3000 Watts Heating Power, Warm Zone Element, Hot Surface Indicator Light (Stainless Steel)
- Color: Stainless Steel
- Width: 30 13/16"
- Height: 5 1/4"
- Depth: 22 7/8"
- Type: Cooktop
- Style: Drop-In
- Fuel Type: Electric
- Burner/Element Type: Radiant Element
- Number of Burners/Elements: 5
- Highest Element Output: 3000 Watts
- ADA Compliant: Yes
- Voltage: 208
- Cutout Width: 29 563/1000"
- Cutout Depth: 20 563/1000"

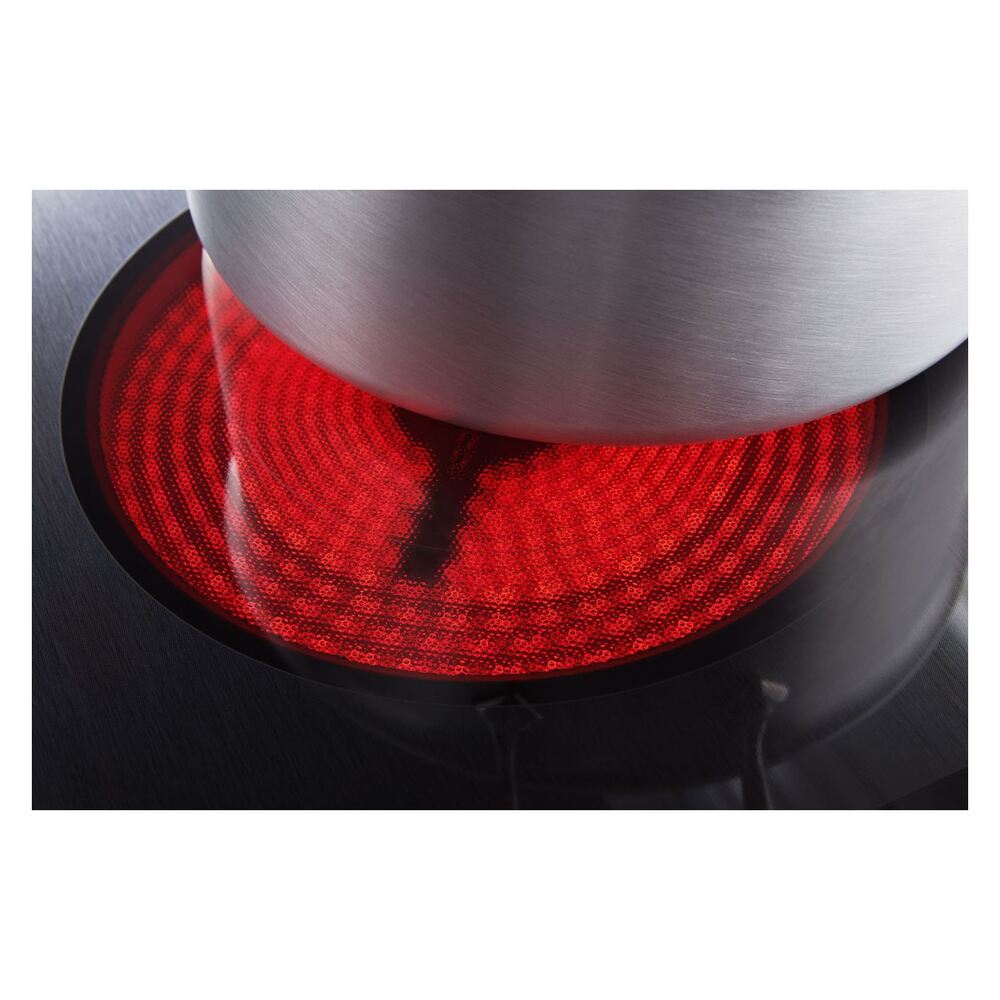

FlexHeat™ Dual Radiant Element
Get two elements in one with a 6″ inner ring that’s great for smaller pots and pans and a 10″ expandable outer ring that makes room for larger cookware.
Easy-Wipe Ceramic Glass Cooktop
Wiping up spills is simple with the easy-to-clean cooktop.
Warm Zone Element
Keep food warm while you’re finishing the rest of the meal using this low-powered element.
5-Element Cooktop
Provides five independent cooking surface areas.
Hot Surface Indicator Light
See when the cooktop’s still hot to the touch, even after it’s been turned off, with a light that lets you know.

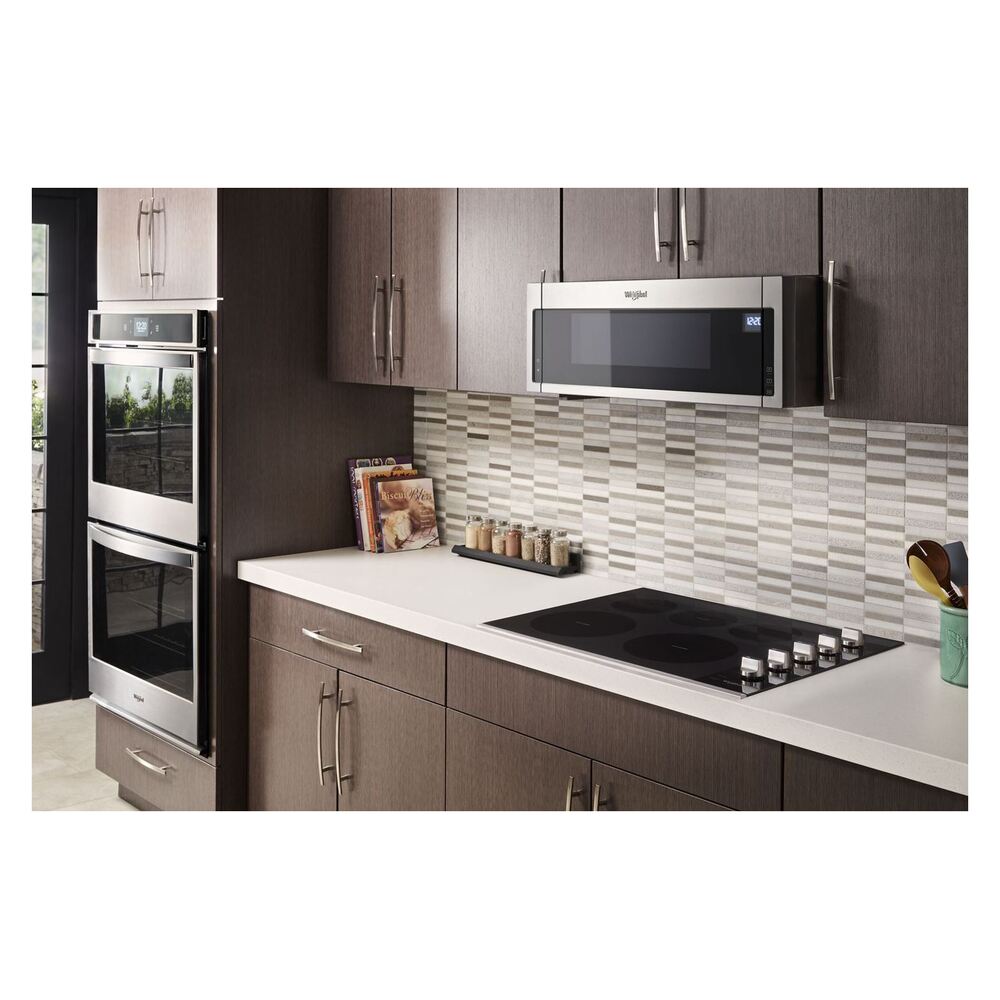

Wall Oven Compatible
Install this cooktop to work with a wall oven or on its own for more flexibility.
6″ Extra Element
Cook small dishes like sides and sauces on the 6″ Extra Element.
ADA compliant
This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Specifications | |
| Brand | Whirlpool |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 30" |
| Width | 30 13/16" |
| Depth | 22 7/8" |
| Height | 5 1/4" |
| Cutout Width | 29 563/1000" |
| Cutout Depth | 20 563/1000" |
Fuel Type | |
| Fuel Type | Electric |
Style | |
| Style | Drop-In |
| Type | Cooktop |
| Control Location | Right Side |
Cooking Surface | |
| Burner/Element Type | Radiant Element |
| Number of Burners/Elements | 5 |
| Highest Element Output | 3000 Watts |
| Burner/Element Output N1 | 100 Watts |
| Burner/Element Output N2 | 1200 Watts |
| Burner/Element Output N3 | 1200 Watts |
| Burner/Element Output N4 | 3000 Watts |
| Burner/Element Output N5 | 3000 Watts |
Technical Details | |
| Voltage | 208 |
| Power Cord | No |
Certifications | |
| ADA Compliant | Yes |
Features | |
| Cooktop Control Type | Knobs |
| Knob Type | Plastic |
| Downdraft | No |
| Cooktop Surface Material | Glass |
| LP Convertible | No |
| Brand | Whirlpool |
|---|---|
|
Appearance |
|
| Color | Stainless Steel |
| Color Family | Stainless Steel |
|
Dimensions |
|
| Exterior Width | 30" |
| Width | 30 13/16" |
| Depth | 22 7/8" |
| Height | 5 1/4" |
| Cutout Width | 29 563/1000" |
| Cutout Depth | 20 563/1000" |
|
Fuel Type |
|
| Fuel Type | Electric |
|
Style |
|
| Style | Drop-In |
| Type | Cooktop |
| Control Location | Right Side |
|
Cooking Surface |
|
| Burner/Element Type | Radiant Element |
| Number of Burners/Elements | 5 |
| Highest Element Output | 3000 Watts |
| Burner/Element Output N1 | 100 Watts |
| Burner/Element Output N2 | 1200 Watts |
| Burner/Element Output N3 | 1200 Watts |
| Burner/Element Output N4 | 3000 Watts |
| Burner/Element Output N5 | 3000 Watts |
|
Technical Details |
|
| Voltage | 208 |
| Power Cord | No |
|
Certifications |
|
| ADA Compliant | Yes |
|
Features |
|
| Cooktop Control Type | Knobs |
| Knob Type | Plastic |
| Downdraft | No |
| Cooktop Surface Material | Glass |
| LP Convertible | No |
