- Color: Stainless Steel
- Width: 46 3/8"
- Height: 12"
- Depth: 19 1/4"
- Type: Cabinet Insert
- CFM: 600
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Convertible
- Delay Turn Off: Yes
- ADA Compliant: Optional Remote Controller
- Voltage: 115
- Amps: 3.6
XO XOIL4819SC 48 inch Range Hood Insert with 600 CFM, Code Compliance Control, LED Lighting and Stainless Steel Baffle Filter in Stainless Steel
- Color: Stainless Steel
- Width: 46 3/8"
- Height: 12"
- Depth: 19 1/4"
- Type: Cabinet Insert
- CFM: 600
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Convertible
- Delay Turn Off: Yes
- ADA Compliant: Optional Remote Controller
- Voltage: 115
- Amps: 3.6

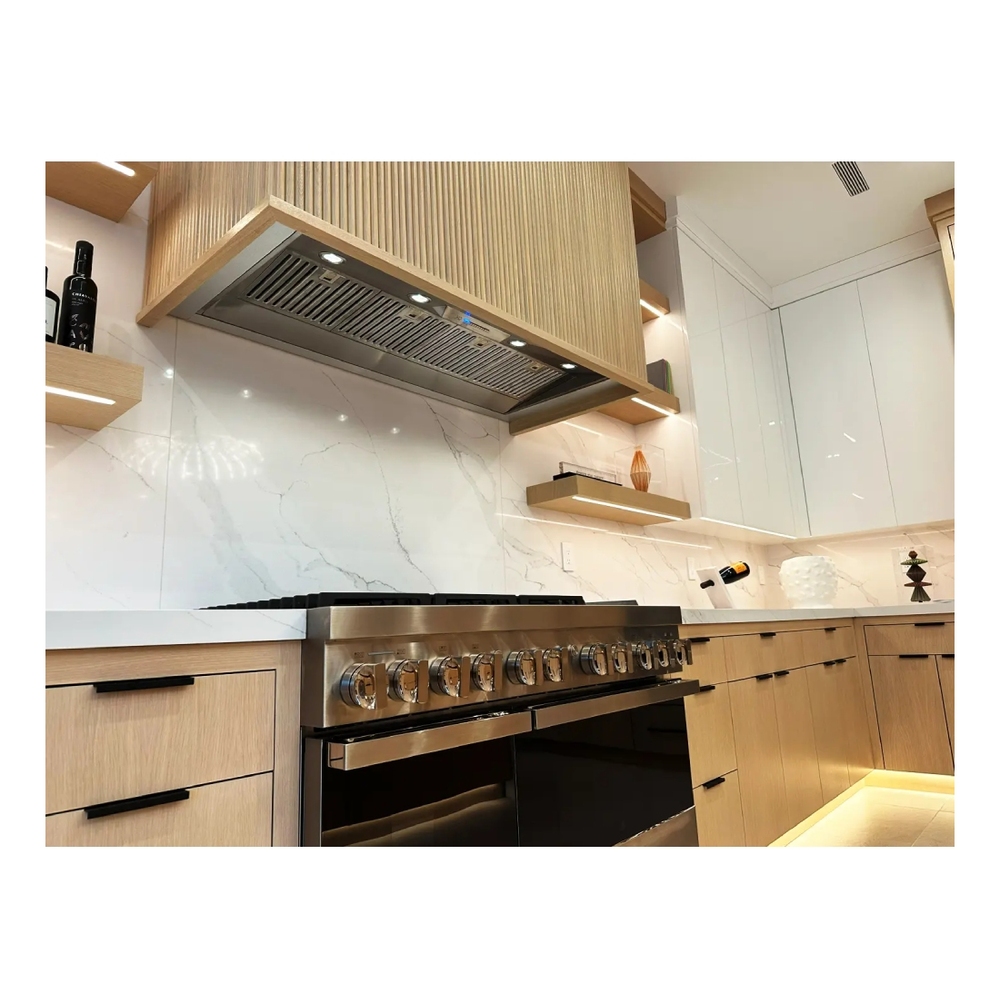

The XOIL4819SC 48″ Range Hood Insert from XO is designed for both functionality and style. It includes Code Compliance Control, enabling you to easily adjust the airflow from 600 CFM to 395 CFM, ensuring optimal ventilation for your kitchen. This range hood is equipped with energy-efficient LED lighting that illuminates your cooking area, making meal preparation easier. Additionally, it features durable stainless steel baffle filters that effectively trap grease and are easy to clean. The convenient delay shutoff function allows the hood to continue running for a set period after cooking, ensuring that all smoke and odors are eliminated. This combination of features makes the XOIL4819SC an excellent choice for any modern kitchen.
XOIL Insert
The XOIL series are designed as all-in-one blower / liner combination units for easy installation into custom hoods. Each XOIL model is designed and crafted in Italy to incorporate a multi-speed blower, controls, filtration, LED Lamps and back flow damper. The XOIL is everything you need in one easy to install package.
Code Compliance Control
Enbles the installer to re-program the hood as it is being installed. Your XO Hood is set to operate at 600 CFM maximum at the factory. Re-programming is accomplished quickly and requires no special tools or additional parts but once done, the air flow rate is limited to a maximum of 395 CFM below the 400 CFM cap that most local codes impose eliminating the need for additional controls. Re-programming also disables the Power Boost function. After conversion, the installer affixes a label stating unit has been converted to 395 CFM max. INce done, the unit cannot be changed back.
Controls
Electronic 3 Speed Control + Power Boost
LED Lighting
High Efficiency 3000K LED lights (x2)
Filters
Dishwasher safe SS PRO Baffle filters
Ducting
6” Vertical Duct or Recirculating (Kit Sold Separately)
(Recirculated air must be returned to the living space)
Delay Off
5 Minute Delay Shutoff Timer
Additional Features:
- Combination Blower and SS Liner in One
- Optional ADA Compatible Remote
- Mounting Height from cooking surface 27″ – 32″
- UL Listed
- Made In Italy
Specifications | |
| Brand | XO |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 48" |
| Width | 46 3/8" |
| Depth | 19 1/4" |
| Height | 12" |
Style | |
| Type | Cabinet Insert |
| Mounting Type | Under Cabinet |
| Fan | Yes |
Smart Features | |
| Wi-Fi | No |
Technical Details | |
| Voltage | 115 |
| Amps | 3.6 |
| Duct Type | Round |
| Number of Light Bulbs | 2 |
| Duct Diameter | 6" |
| Duct Location | Top or Rear |
| Frequency | 60 Hz. |
| Vent Location | Top |
Certifications | |
| ADA Compliant | Optional Remote Controller |
| Energy Star | No |
| UL Listed | Yes |
Features | |
| Convertible Ducting | Yes |
| CFM | 600 |
| Filter Type | Stainless Steel baffle |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | LED |
| Delay Turn Off | Yes |
| Number of Fan Speeds | 4 |
| Light | Yes |
| Remote Controller | Optional |
| Recirculating Kit | Sold Separately |
| Brand | XO |
|---|---|
|
Appearance |
|
| Color | Stainless Steel |
| Color Family | Stainless Steel |
|
Dimensions |
|
| Exterior Width | 48" |
| Width | 46 3/8" |
| Depth | 19 1/4" |
| Height | 12" |
|
Style |
|
| Type | Cabinet Insert |
| Mounting Type | Under Cabinet |
| Fan | Yes |
|
Smart Features |
|
| Wi-Fi | No |
|
Technical Details |
|
| Voltage | 115 |
| Amps | 3.6 |
| Duct Type | Round |
| Number of Light Bulbs | 2 |
| Duct Diameter | 6" |
| Duct Location | Top or Rear |
| Frequency | 60 Hz. |
| Vent Location | Top |
|
Certifications |
|
| ADA Compliant | Optional Remote Controller |
| Energy Star | No |
| UL Listed | Yes |
|
Features |
|
| Convertible Ducting | Yes |
| CFM | 600 |
| Filter Type | Stainless Steel baffle |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | LED |
| Delay Turn Off | Yes |
| Number of Fan Speeds | 4 |
| Light | Yes |
| Remote Controller | Optional |
| Recirculating Kit | Sold Separately |
XO XOIL4819SC 48 inch Range Hood Insert with 600 CFM, Code Compliance Control, LED Lighting and Stainless Steel Baffle Filter in Stainless Steel
