- Width: 28 3/8"
- Height: 12 3/8"
- Depth: 20 1/2"
- Type: Cabinet Insert
- CFM: 390
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Convertible
- Voltage: 120
- Amps: 15
Zephyr AK9028BS 30 inch Essentials Power Vortex Series Cabinet Insert One Piece Liner with 390 CFM Internal Blower, Adjustable Depth, Recirculating Option, LED Lighting and 3 Speed Slide Controls, in Stainless Steel
- Width: 28 3/8"
- Height: 12 3/8"
- Depth: 20 1/2"
- Type: Cabinet Insert
- CFM: 390
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Convertible
- Voltage: 120
- Amps: 15

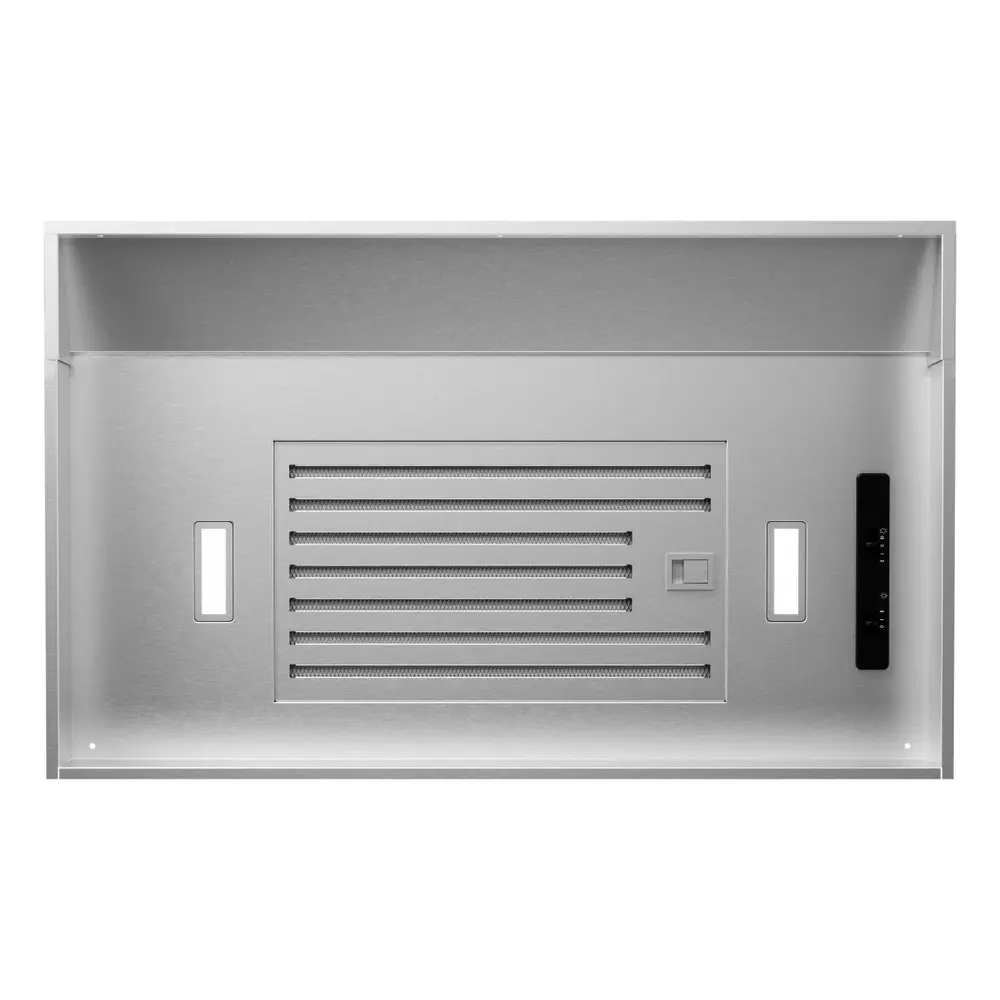

The AK9028BS Essentials Power Vortex one-piece liner by Zephyr is designed for versatility and performance in your kitchen. With adjustable-depth installation dimensions ranging from 17-1/2″ to 20-1/2″, it ensures a perfect fit for various cabinetry styles. This innovative liner is equipped with a robust 390 CFM internal blower, delivering optimal ventilation and air circulation to keep your cooking space fresh and free of smoke and odors. Additionally, the integrated LED lighting provides excellent illumination, enhancing visibility while you cook. The combination of functionality and modern design makes the AK9028BS an essential addition to any culinary environment.
Essentials Power Vortex One-Piece Liner
The Vortex one-piece liner leads the way with the industry’s only adjustable-depth installation dimensions. Staying true to its one-piece liner roots, Vortex has a single liner piece that is designed to extend up to 3-inches towards the front of the range hood so you can install it in spaces built for a hood up to 20-1/2-inches deep. Add to this its category-leading 390 CFM, optional recirculation kit and its 36-inch mounting height maximum and Vortex stands tall among the rest.
- 390 CFM Internal Blower
- Mechanical Slide Controls
- 3 Speed Levels
- LED Lighting
- Adjustable Depth
- Recirculating Option with Accessory Kit
- Hybrid Baffle Filter
- 6″ Round Vertical Duct Specs
Specifications | |
| Brand | Zephyr |
Appearance | |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 30" |
| Width | 28 3/8" |
| Depth | 20 1/2" |
| Height | 12 3/8" |
| Cutout Width | 26 5/8" |
| Cutout Depth | 10 1/2" |
Style | |
| Type | Cabinet Insert |
| Mounting Type | Under Cabinet |
| Fan | Yes |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
| Duct Type | Round |
| Number of Light Bulbs | 2 |
| Duct Diameter | 6" |
| Vent Location | Top |
Certifications | |
| ADA Compliant | No |
| UL Listed | Yes |
| cUL Listed | Yes |
Features | |
| CFM | 390 |
| Filter Type | Hybrid Baffle |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | LED |
| Light | Yes |
| Recirculating Kit | Sold Separately |
| Brand | Zephyr |
|---|---|
|
Appearance |
|
| Color Family | Stainless Steel |
|
Dimensions |
|
| Exterior Width | 30" |
| Width | 28 3/8" |
| Depth | 20 1/2" |
| Height | 12 3/8" |
| Cutout Width | 26 5/8" |
| Cutout Depth | 10 1/2" |
|
Style |
|
| Type | Cabinet Insert |
| Mounting Type | Under Cabinet |
| Fan | Yes |
|
Technical Details |
|
| Voltage | 120 |
| Amps | 15 |
| Duct Type | Round |
| Number of Light Bulbs | 2 |
| Duct Diameter | 6" |
| Vent Location | Top |
|
Certifications |
|
| ADA Compliant | No |
| UL Listed | Yes |
| cUL Listed | Yes |
|
Features |
|
| CFM | 390 |
| Filter Type | Hybrid Baffle |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | LED |
| Light | Yes |
| Recirculating Kit | Sold Separately |
