- Series: Benchmark
- Color: Gray Tempered Glass
- Width: 29 1/2"
- Height: 2 9/16"
- Depth: 20 1/2"
- Type: Cooktop
- Fuel Type: Gas
- Gas Type: Natural Gas
- Burner/Element Type: Sealed Burner
- Number of Burners/Elements: 5
- Highest Burner Output: 14300 BTU
- ADA Compliant: Yes
- Voltage: 120
- Amps: 15

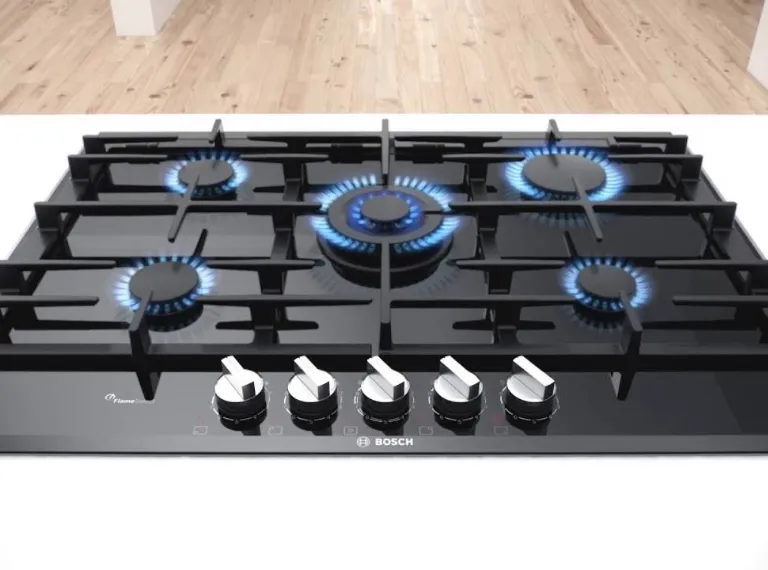

Bosch NGMP077UC Benchmark Series 30 inch Gas Cooktop with 5 Sealed Burners, FlameSelect, Heavy Duty Grates, OptiSim Burner, and Continuous Grates in Gray Tempered Glass
- Series: Benchmark
- Color: Gray Tempered Glass
- Width: 29 1/2"
- Height: 2 9/16"
- Depth: 20 1/2"
- Type: Cooktop
- Fuel Type: Gas
- Gas Type: Natural Gas
- Burner/Element Type: Sealed Burner
- Number of Burners/Elements: 5
- Highest Burner Output: 14300 BTU
- ADA Compliant: Yes
- Voltage: 120
- Amps: 15
Features:
Fit multiple pans and cook with 5 burners
5 powerful high-efficiency gas burners allow you to cook multiple dishes with a full range of BTU performance.
Simmer delicate sauces with the OptiSim® Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.

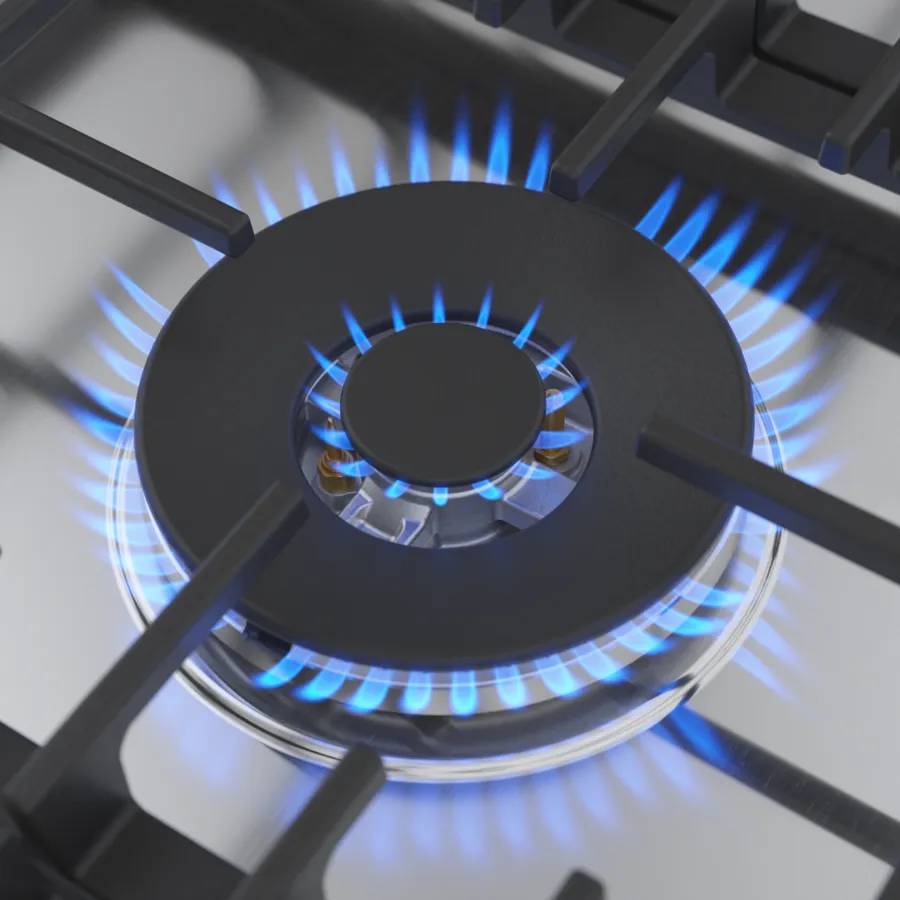

Boil water quickly with a Dual-Flame Power Burner
The dual flame ring power burner has two rings for low and high flame settings so you can go from simmer to sear with ease. Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat.
Eliminate the guesswork of cooking with FlameSelect®
Introducing FlameSelect® on Bosch cooktops, an entirely new and better way to cook with gas. 9 preset power levels let you easily adjust flame level for more precise, controlled heating. Whether you’re rapidly bringing water to an intense boil or delicately melting chocolate, the numbered flame levels deliver the exact temperature every time. There’s no more hot or cold spots, just precision heating for perfect results.
Strong and smooth at the same time.
The smooth tempered glass surface allows for a polished look and easy cleaning, while maintaining the cooking power of gas.
Performance
- 5 Gas Burners
- FlameSelect® (9 Power Levels)
- Dual Flame Power Burner
- OptiSim® Burner
Convenience
- Enamelled Heavy Duty Grates Can be Cleaned in Dishwasher
- Push-to-Turn Knobs With Electronic Ignition
- LP Conversion Kit Included for Conversion from Natural Gas to Liquid Propane
Design
- Gray Tempered Glass Cooking Surface
- Frameless
- Can be Installed Flush or Surface Mounted to Countertop
- Perfect Results are Within Reach With Up-Front Centralized Controls
- Cooktop Design Coordinates with Bosch Ovens and Ventilation
Safety
- Flame failure device on each burner
Specifications | |
| Brand | Bosch |
| Series | Benchmark |
Appearance | |
| Color | Gray Tempered Glass |
| Color Family | Gray |
Dimensions | |
| Exterior Width | 30" |
| Width | 29 1/2" |
| Depth | 20 1/2" |
| Height | 2 9/16" |
| Cutout Width | 28 15/16" |
| Cutout Height | 1 1/4" |
| Cutout Depth | 19 1/8" |
Fuel Type | |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
Style | |
| Type | Cooktop |
| Control Location | Front |
Cooking Surface | |
| Burner/Element Type | Sealed Burner |
| Number of Burners/Elements | 5 |
| Griddle | No |
| Highest Burner Output | 14300 BTU |

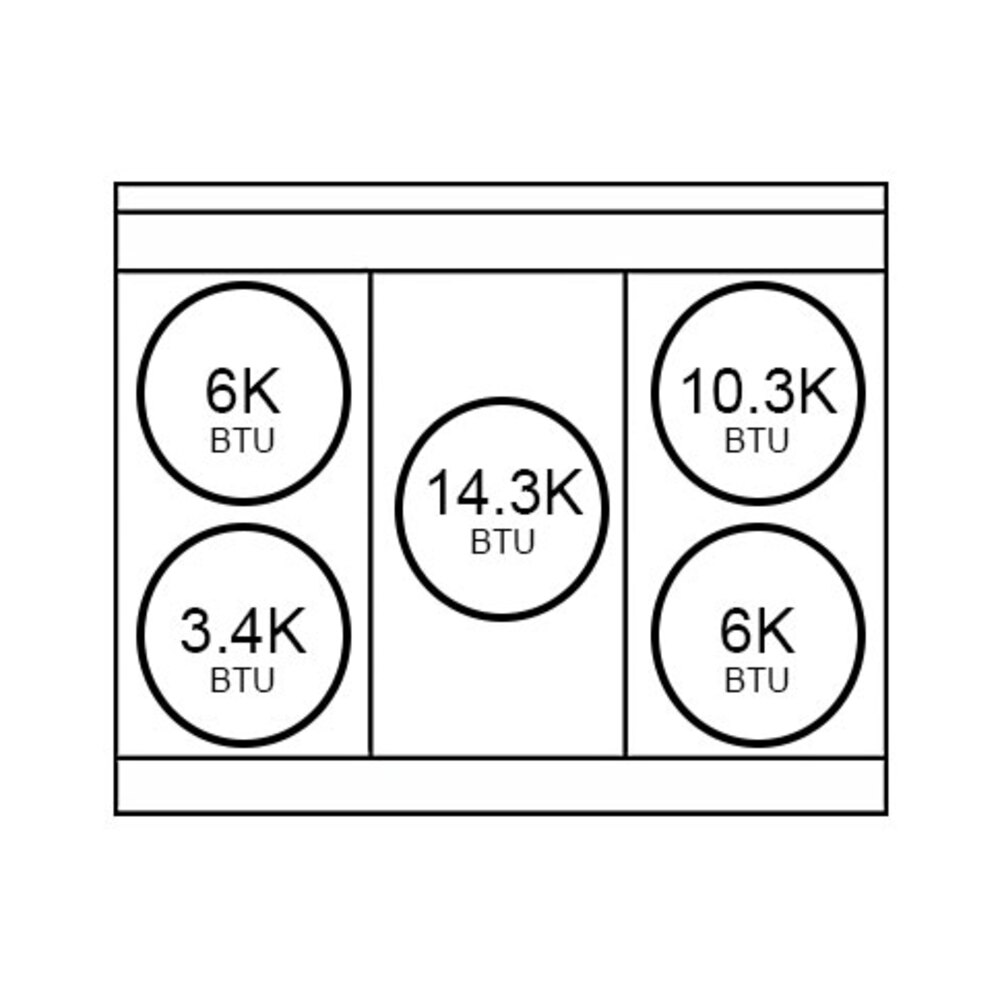

| Burner/Element Output N1 | 3400 BTU |
| Burner/Element Output N2 | 6000 BTU |
| Burner/Element Output N3 | 10300 BTU |
| Burner/Element Output N4 | 6000 BTU |
| Burner/Element Output N5 | 14300 BTU |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
Certifications | |
| ADA Compliant | Yes |
Features | |
| Control Type | Knobs |
| Portable | No |
| Installs Over Oven | Yes |
| Timer | No |
| Continuous Grates | Yes |
| Cast Iron Grates | Yes |
| Light | No |
| Dishwasher-Safe Grates | Yes |
| LP Convertible | Yes |
| Brand | Bosch |
|---|---|
| Series | Benchmark |
|
Appearance |
|
| Color | Gray Tempered Glass |
| Color Family | Gray |
|
Dimensions |
|
| Exterior Width | 30" |
| Width | 29 1/2" |
| Depth | 20 1/2" |
| Height | 2 9/16" |
| Cutout Width | 28 15/16" |
| Cutout Height | 1 1/4" |
| Cutout Depth | 19 1/8" |
|
Fuel Type |
|
| Fuel Type | Gas |
| Gas Type | Natural Gas |
|
Style |
|
| Type | Cooktop |
| Control Location | Front |
|
Cooking Surface |
|
| Burner/Element Type | Sealed Burner |
| Number of Burners/Elements | 5 |
| Griddle | No |
| Highest Burner Output | 14300 BTU |
| Burner/Element Output N1 | 3400 BTU |
| Burner/Element Output N2 | 6000 BTU |
| Burner/Element Output N3 | 10300 BTU |
| Burner/Element Output N4 | 6000 BTU |
| Burner/Element Output N5 | 14300 BTU |
|
Technical Details |
|
| Voltage | 120 |
| Amps | 15 |
|
Certifications |
|
| ADA Compliant | Yes |
|
Features |
|
| Control Type | Knobs |
| Portable | No |
| Installs Over Oven | Yes |
| Timer | No |
| Continuous Grates | Yes |
| Cast Iron Grates | Yes |
| Light | No |
| Dishwasher-Safe Grates | Yes |
| LP Convertible | Yes |
