- Color: Silver Stainless Steel
- Width: 30"
- Height: 53 5/16"
- Depth: 19 15/16"
- Type: Hood
- Style: Chimney Style
- Wi-Fi: Yes
- CFM: 600
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Ducted
- Voltage: 120
- Amps: 15

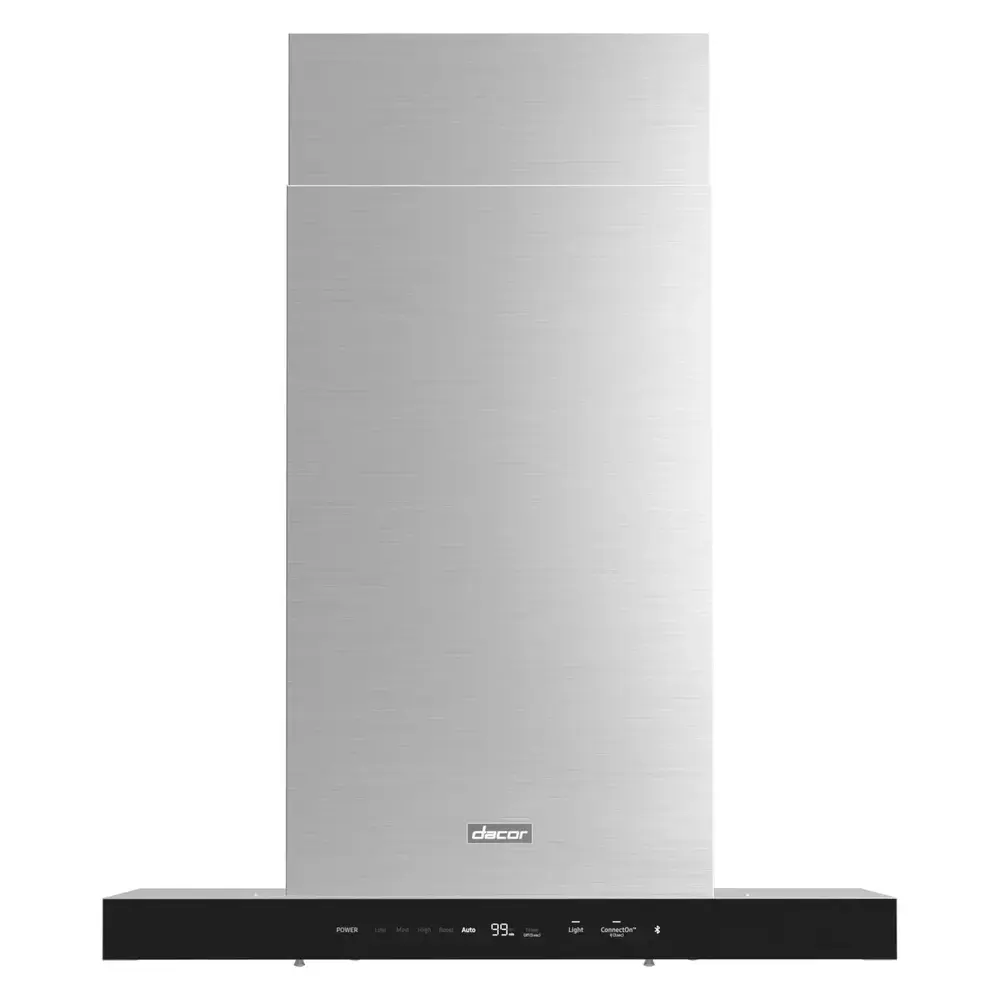

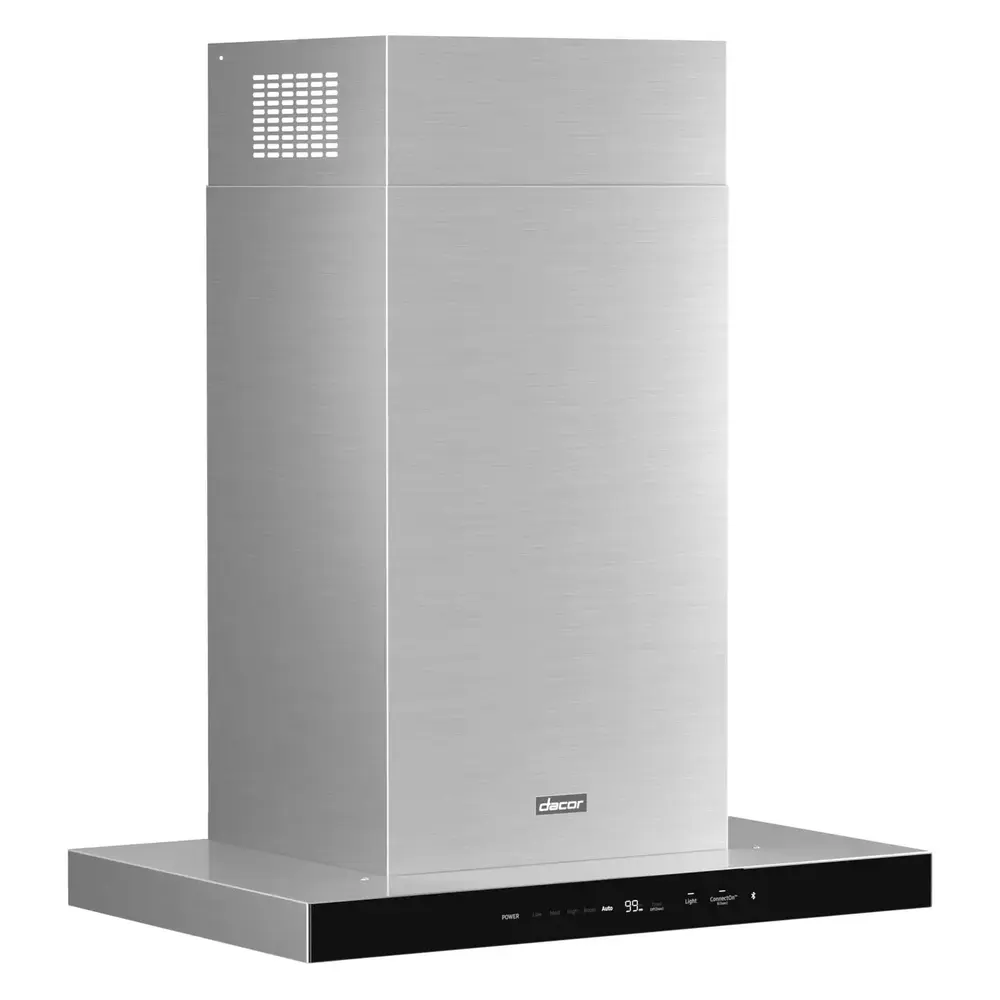

Dacor DHD30U990WS 30 inch Chimney Wall Hood with 600 CFM, Auto-On Heat Sensors, Strip LED Lighting, Baffle Filter (Silver Stainless Steel)
- Color: Silver Stainless Steel
- Width: 30"
- Height: 53 5/16"
- Depth: 19 15/16"
- Type: Hood
- Style: Chimney Style
- Wi-Fi: Yes
- CFM: 600
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Ducted
- Voltage: 120
- Amps: 15
Features:
Chimney Wall Hood
The Chimney Wall Hood is designed with elegant lines, LED lighting, and a sophisticated glass touch control that seamlessly connects and pairs with your compatible Dacor cooking product.
- Four-speed fan
- Strip LED lighting
- Removable professional baffle filters
- Auto Connect to compatible cooking product through Bluetooth
- Auto-On temperature sensor
- Glass-touch control panel
Glass Touch Control
Glass touch control provides easy management of brightness level, fan speed and timer.
Auto-On Heat Sensors
Eliminate heat and smoke from afar with Auto-On Heat Sensors.
Multi-Speed Fan
Be in control of your Dacor cooking products with a four-speed fan with 390 CFM (600 CFM convertible) ventilation with minimal noise.
Strip LED Lighting
Strip LED lighting illuminates your cooking area in an elegant glow with more energy efficiency than standard halogen lighting.
Noise Dampening System
Noise dampening system for a quieter experience.

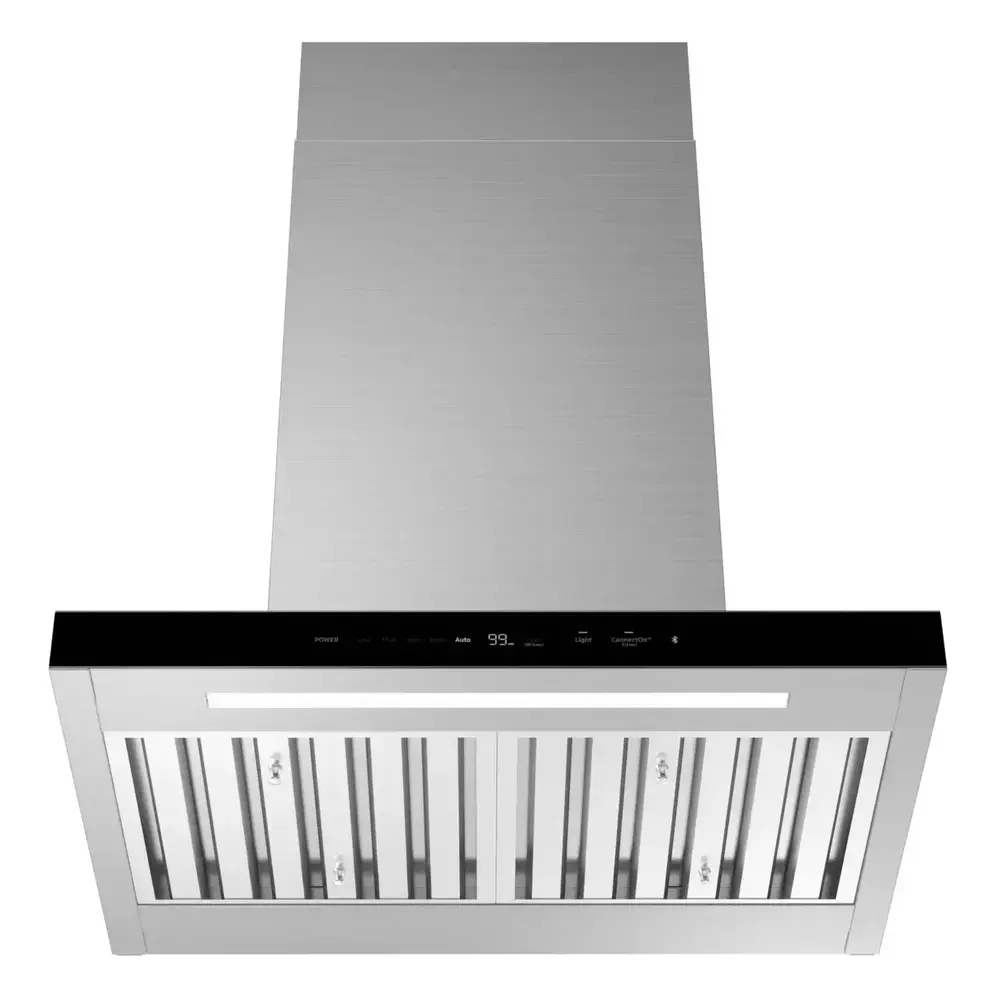

Baffle Filter
Easy to clean stainless steel baffle filter efficiently absorbs smoke and odors while filtering out the grease.
Luxurious Finishes
Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.
Smartthings Integration
Smart functionality enables hood to automatically turn on in conjunction with a compatible Dacor cooking product.
Specifications | |
| Brand | Dacor |
Appearance | |
| Color | Silver Stainless Steel |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 30" |
| Width | 30" |
| Depth | 19 15/16" |
| Height | 53 5/16" |
| Minimum Duct Cover Height | 31 3/4" |
Style | |
| Style | Chimney Style |
| Type | Hood |
| Mounting Type | Wall Mount |
| Glass Canopy | No |
Smart Features | |
| Smart Appliance | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
| Duct Type | Round |
| Number of Light Bulbs | 1 |
| Duct Diameter | 10" |
| Vent Location | Top |
Features | |
| CFM | 600 |
| Filter Type | Baffle |
| Venting Type | Ducted |
| Blower Type | Internal |
| Adjustable Duct Cover | Yes |
| Automatic Turn On | Yes |
| Light Bulb Type | LED |
| Temperature Sensor | Yes |
| Warranty Terms | 2 Years |
| Brand | Dacor |
|---|---|
|
Appearance |
|
| Color | Silver Stainless Steel |
| Color Family | Stainless Steel |
|
Dimensions |
|
| Exterior Width | 30" |
| Width | 30" |
| Depth | 19 15/16" |
| Height | 53 5/16" |
| Minimum Duct Cover Height | 31 3/4" |
|
Style |
|
| Style | Chimney Style |
| Type | Hood |
| Mounting Type | Wall Mount |
| Glass Canopy | No |
|
Smart Features |
|
| Smart Appliance | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
|
Technical Details |
|
| Voltage | 120 |
| Amps | 15 |
| Duct Type | Round |
| Number of Light Bulbs | 1 |
| Duct Diameter | 10" |
| Vent Location | Top |
|
Features |
|
| CFM | 600 |
| Filter Type | Baffle |
| Venting Type | Ducted |
| Blower Type | Internal |
| Adjustable Duct Cover | Yes |
| Automatic Turn On | Yes |
| Light Bulb Type | LED |
| Temperature Sensor | Yes |
| Warranty Terms | 2 Years |
