- Series: Modena
- Color: Stainless Steel
- Width: 36"
- Height: 9 3/4"
- Depth: 19 5/8"
- Type: Hood
- Style: Standard Hood
- CFM: 600
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Convertible
- Voltage: 120
- Amps: 15

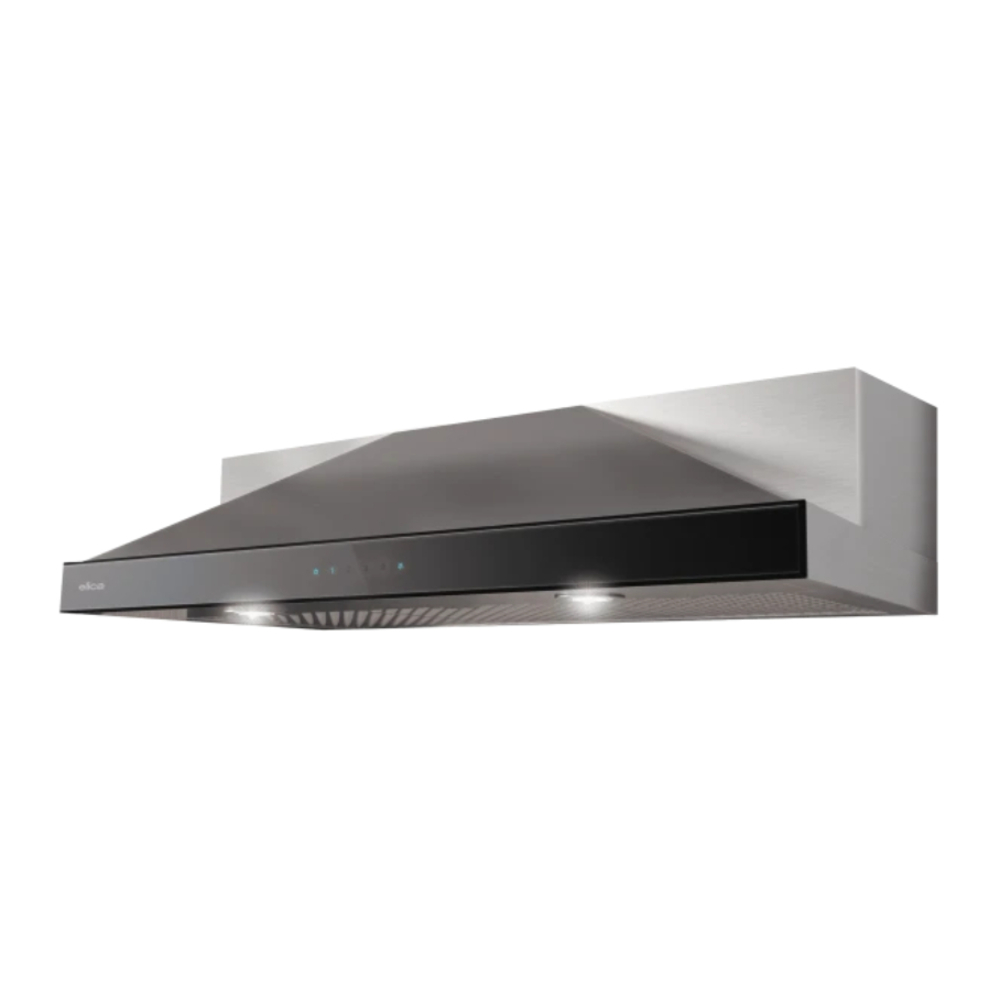

Elica EMD536S3 Techne Modena 36 inch Under Cabinet Hood with 600 CFM, Top Performance, Touch Control Hood , Hush System, in Stainless Steel
- Series: Modena
- Color: Stainless Steel
- Width: 36"
- Height: 9 3/4"
- Depth: 19 5/8"
- Type: Hood
- Style: Standard Hood
- CFM: 600
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Convertible
- Voltage: 120
- Amps: 15

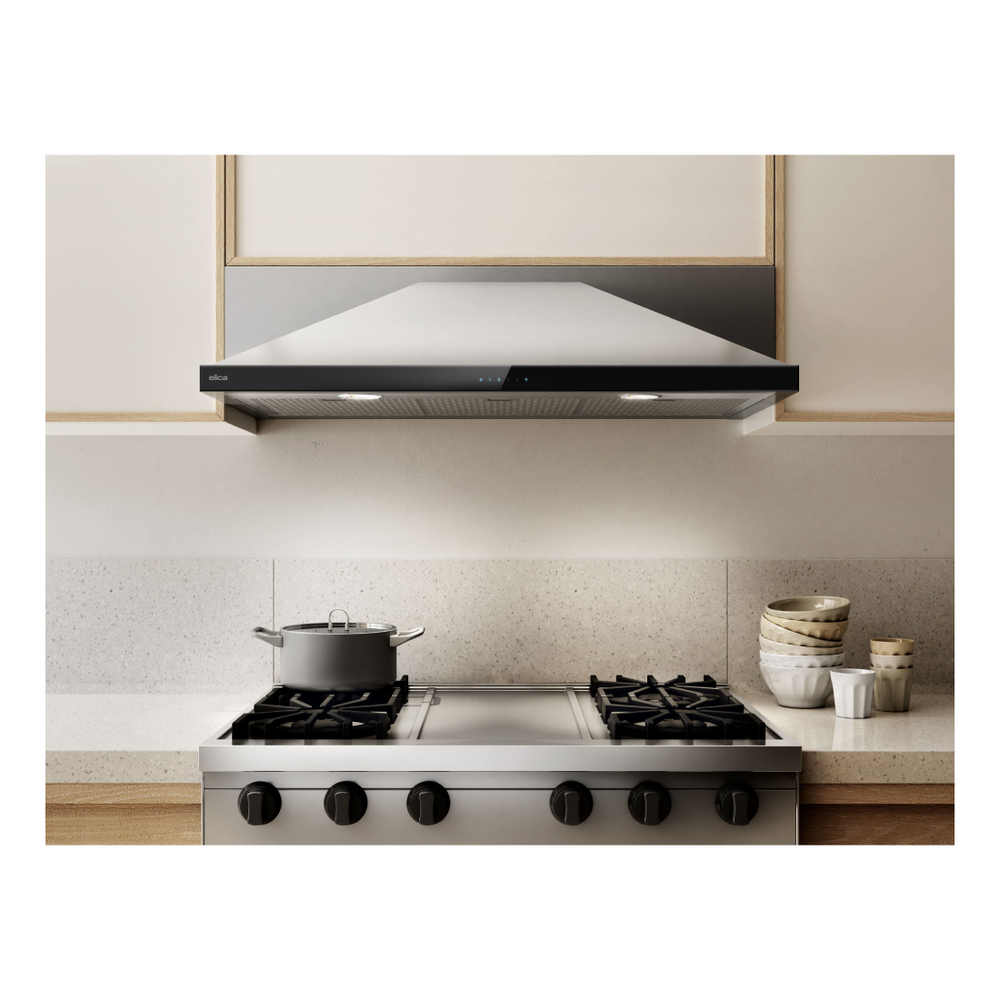

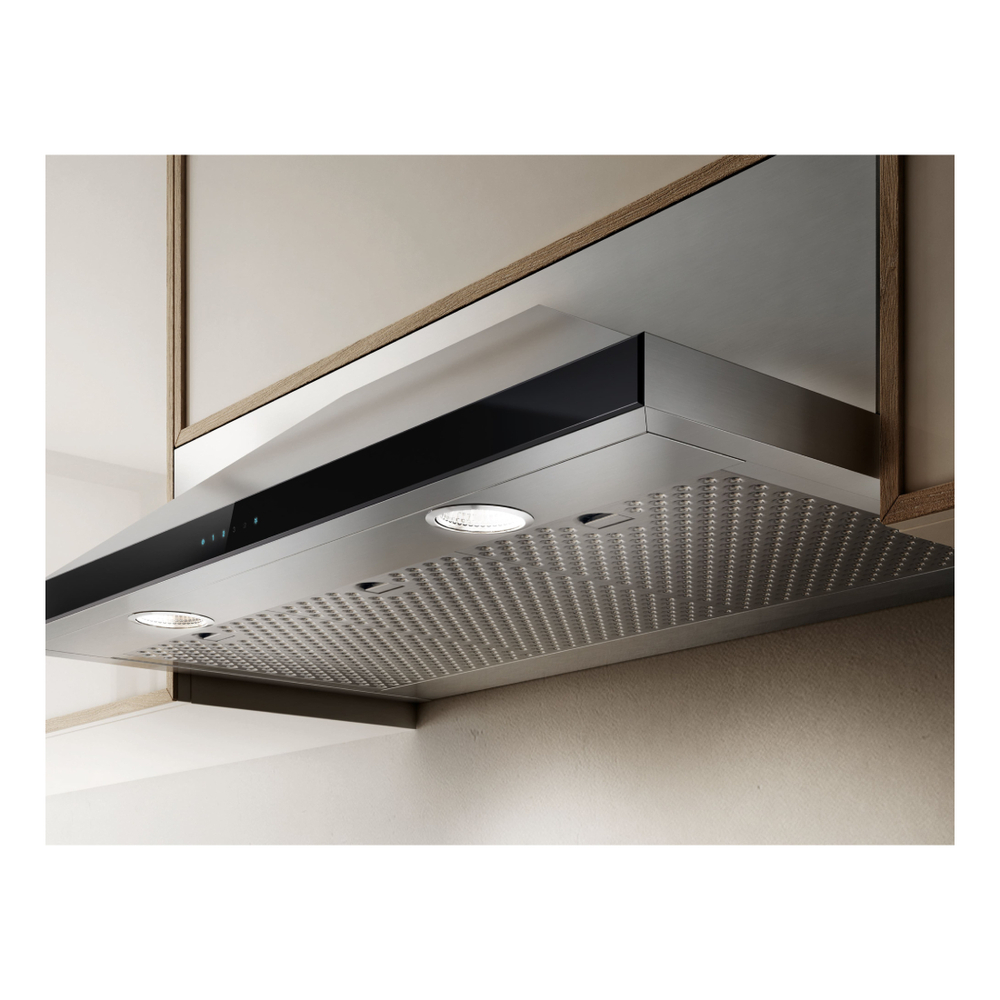

The Modena under-cabinet hood features a striking 9″ high pyramid shape, combining style with functionality. It boasts high-end features typically absent in similar products, such as a powerful 520 CFM blower, LED dimmable lighting, and stainless steel microhole filters for superior air filtration. The easy-to-use glass capacitive touch controls enhance convenience and safety in your kitchen. Available in both 30″ and 36″ widths, Modena is designed for standard ducted installation. Additionally, it can be converted to a recirculating system with an optional accessory kit, making it a versatile choice for any modern kitchen.
Top Performance
High fume capture, low noise – the perfect balance. Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM’s with low noise levels, 1.2 – 1.7 sones at working speed.
Touch Control Hood
Experience the power behind the touch with soft blue illumination. Multifunction electronic touch control behind sleek black glass illuminates soft blue when activated.
Hush System
Silent innovation, redefine tranquility. An exclusive sound-deadening technology that effectively reduces sound levels by over 35%
Led Light
Illuminate your culinary journey with LED brilliance. An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.
Specifications | |
| Brand | Elica |
| Series | Modena |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 36" |
| Width | 36" |
| Depth | 19 5/8" |
| Height | 9 3/4" |
Style | |
| Style | Standard Hood |
| Type | Hood |
| Mounting Type | Under Cabinet |
| Glass Canopy | No |
Smart Features | |
| Smart Appliance | No |
| Wi-Fi | No |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
| Duct Type | Both |
| Number of Light Bulbs | 2 |
| Duct Diameter | 6" |
| Duct Length | 3 1/4" |
| Duct Location | Top or Rear |
| Duct Width | 10" |
| Frequency | 60 Hz. |
Certifications | |
| ADA Compliant | No |
| Energy Star | No |
Features | |
| CFM | 600 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | LED |
| Delay Turn Off | No |
| Number of Fan Speeds | 3 |
| Recirculating Kit | Sold Separately |
| Brand | Elica |
|---|---|
| Series | Modena |
|
Appearance |
|
| Color | Stainless Steel |
| Color Family | Stainless Steel |
|
Dimensions |
|
| Exterior Width | 36" |
| Width | 36" |
| Depth | 19 5/8" |
| Height | 9 3/4" |
|
Style |
|
| Style | Standard Hood |
| Type | Hood |
| Mounting Type | Under Cabinet |
| Glass Canopy | No |
|
Smart Features |
|
| Smart Appliance | No |
| Wi-Fi | No |
|
Technical Details |
|
| Voltage | 120 |
| Amps | 15 |
| Duct Type | Both |
| Number of Light Bulbs | 2 |
| Duct Diameter | 6" |
| Duct Length | 3 1/4" |
| Duct Location | Top or Rear |
| Duct Width | 10" |
| Frequency | 60 Hz. |
|
Certifications |
|
| ADA Compliant | No |
| Energy Star | No |
|
Features |
|
| CFM | 600 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | LED |
| Delay Turn Off | No |
| Number of Fan Speeds | 3 |
| Recirculating Kit | Sold Separately |
