- Series: 5
- Color: Stainless Steel
- Width: 30 3/4"
- Height: 6 1/8"
- Depth: 21"
- Type: Cooktop
- Style: Smoothtop
- Fuel Type: Electric
- Burner/Element Type: Radiant Element
- Number of Burners/Elements: 4
- Highest Element Output: 3200 Watts
- Voltage: 240
- Amps: 36.6
Viking VECU53014BSB 5 Series 30 inch Electric Radiant Cooktop with 4 Elements
- Series: 5
- Color: Stainless Steel
- Width: 30 3/4"
- Height: 6 1/8"
- Depth: 21"
- Type: Cooktop
- Style: Smoothtop
- Fuel Type: Electric
- Burner/Element Type: Radiant Element
- Number of Burners/Elements: 4
- Highest Element Output: 3200 Watts
- Voltage: 240
- Amps: 36.6
QuickCook Surface Elements
QuickCook Surface Infared Elements with ribbon technology reach full power in three seconds and provide fast technology with nearly all cookware.
Versatile Cooking Space
Multiple cooking zones including a 12″ 3,200 watt triple element provide space and power options for most cookware.
Bridge Element

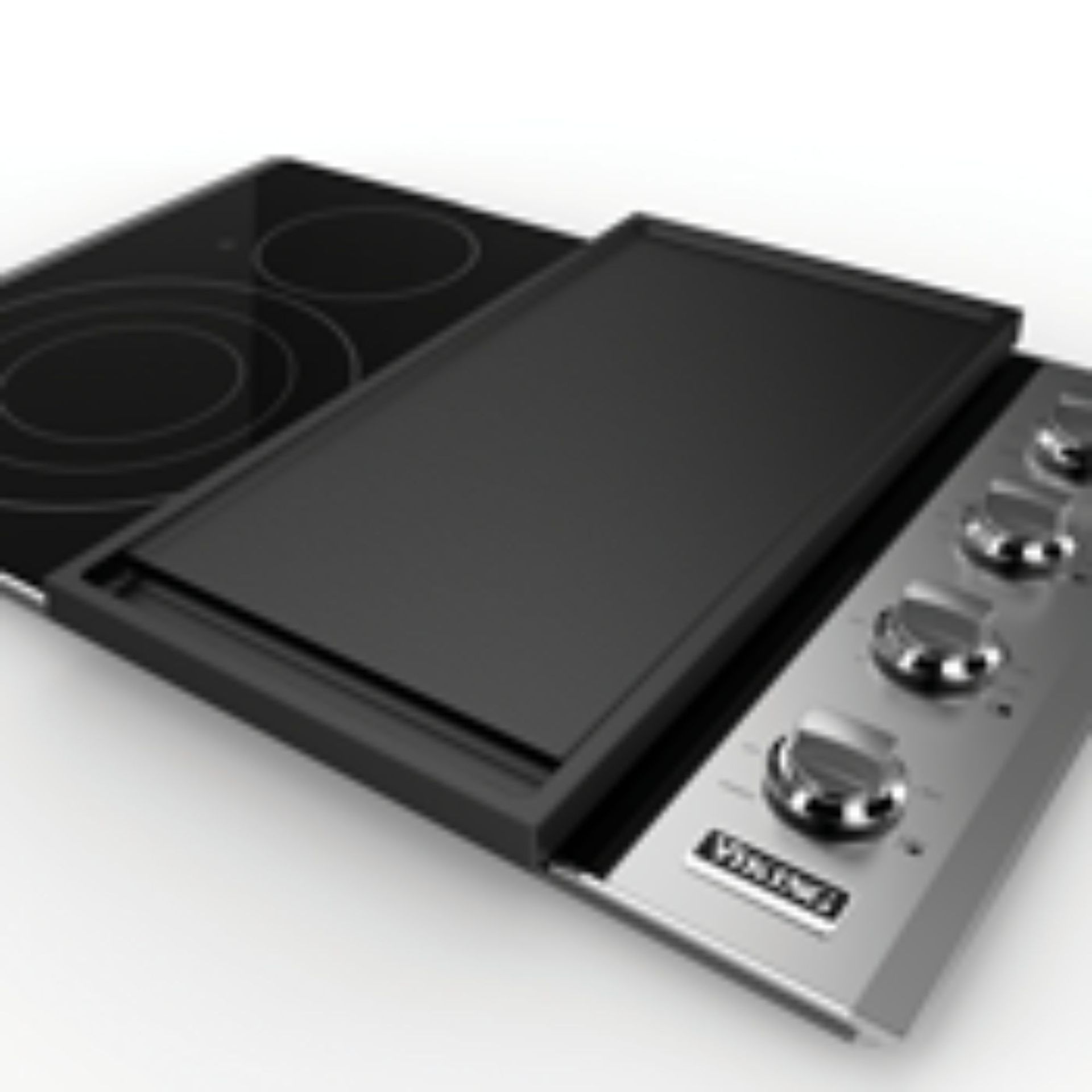

Bridge element connects front and rear elements to create a continuous heated surface for oversized cookware or optional griddle accessory.
Glass Ceramic Surface
Durable, wear resistant glass ceramic surface and laser-etched graphics withstand the rigors of regular cleaning.
COMMERCIAL-TYPE COOKING POWER
- QuickCook Surface Infrared Elements with ribbon technology reach full power in three seconds and provide fast cooking with nearly all cookware
- Up to 10 cooking zones, including a 12” – 3,200 watt triple element, provide space and power options for most cookware
- Bridge element connects front and rear elements to create a continuous heated surface for oversized cookware or optional griddle accessory
- Infrared energy transfer provides fast cooking, regardless of type of cookware used cooking

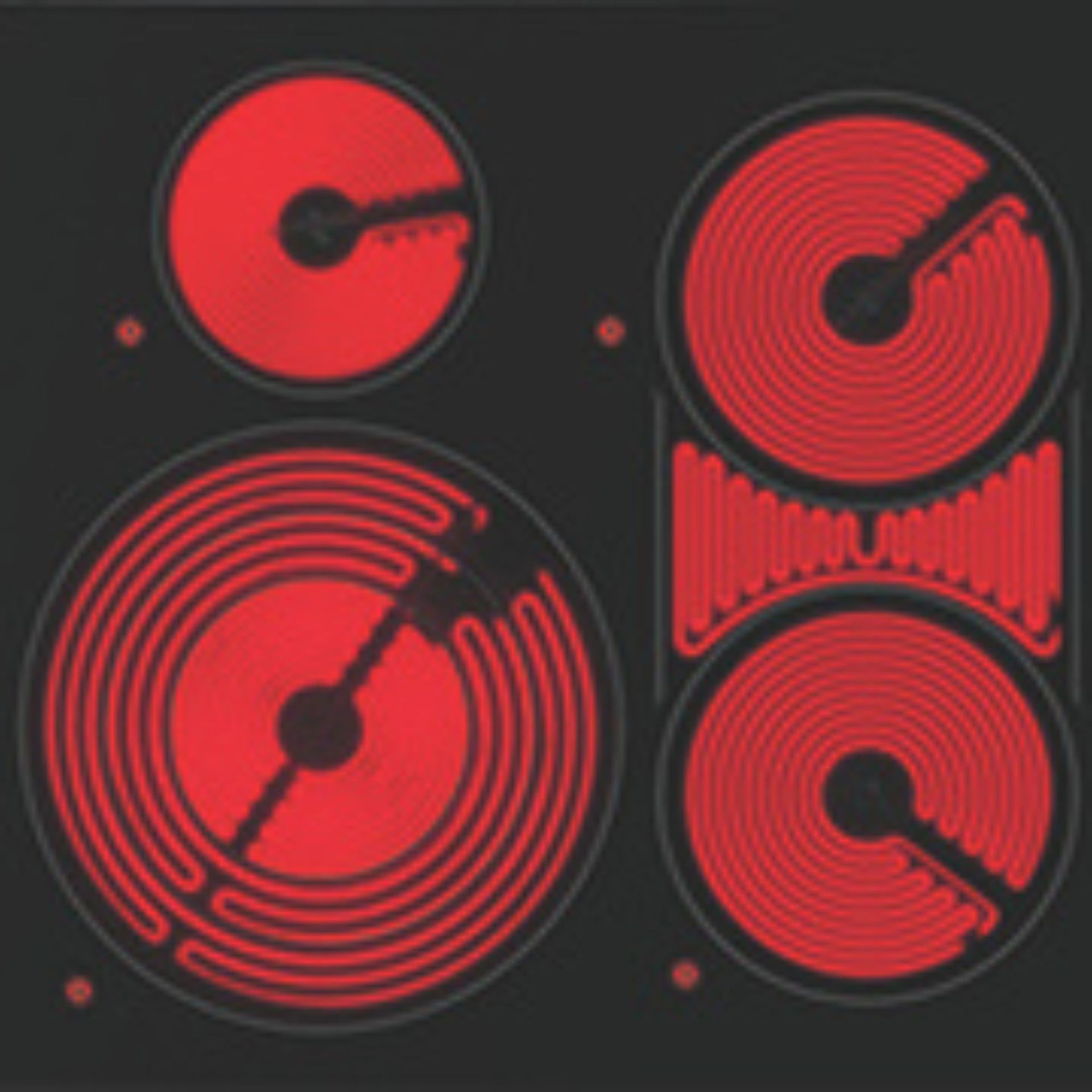

ELECTRIC 30” WIDE COOKTOP
- Left front (triple element) – 12” 3,200-watt element
- Left rear – 6 1/2”, 1,200-watt element
- Bridge – 800 watt
- Right front – 8 1/2”, 1,800-watt element
- Right rear – 8 1/2”, 1,800-watt element
EASY MAINTENANCE AND CLEANUP
- Durable, wear-resistant glass ceramic surface and laser-etched graphics withstand the rigors of regular cleaning
- Removable knobs for quick, simple cleaning
SAFE-EASY OPERATION
- NEW BlackChrome Knobs
- Child proof, push-to-turn metal knobs for safe use
- Element lights indicate hot surfaces and active elements
WARRANTY
- 2-year full – complete product
- 90-day full – cosmetic parts such as glass, painted items and decorative items
- 5-year limited – electric element components
Specifications | |
Brand | Viking |
Series | 5 |
Appearance | |
Color | Stainless Steel |
Color Family | Stainless Steel |
Dimensions | |
Exterior Width | 30" |
Width | 30 3/4" |
Depth | 21" |
Height | 6 1/8" |
Cutout Width | 28 7/8" |
Cutout Depth | 19 1/4" |
Fuel Type | |
Fuel Type | Electric |
Style | |
Style | Smoothtop |
Type | Cooktop |
Control Location | Right Side |
Cooking Surface | |
Burner/Element Type | Radiant Element |
Number of Burners/Elements | 4 |
Highest Element Output | 3200 Watts |
Burner/Element Output N1 | 3200 Watts |
Burner/Element Output N2 | 1200 Watts |
Burner/Element Output N3 | 1800 Watts |
Burner/Element Output N4 | 1800 Watts |
Hot Surface Indicator Light | Yes |
Technical Details | |
Voltage | 240 |
Amps | 36.6 |
Features | |
Control Type | Knobs |
Brand | Viking |
---|---|
Series | 5 |
Appearance |
|
Color | Stainless Steel |
Color Family | Stainless Steel |
Dimensions |
|
Exterior Width | 30" |
Width | 30 3/4" |
Depth | 21" |
Height | 6 1/8" |
Cutout Width | 28 7/8" |
Cutout Depth | 19 1/4" |
Fuel Type |
|
Fuel Type | Electric |
Style |
|
Style | Smoothtop |
Type | Cooktop |
Control Location | Right Side |
Cooking Surface |
|
Burner/Element Type | Radiant Element |
Number of Burners/Elements | 4 |
Highest Element Output | 3200 Watts |
Burner/Element Output N1 | 3200 Watts |
Burner/Element Output N2 | 1200 Watts |
Burner/Element Output N3 | 1800 Watts |
Burner/Element Output N4 | 1800 Watts |
Hot Surface Indicator Light | Yes |
Technical Details |
|
Voltage | 240 |
Amps | 36.6 |
Features |
|
Control Type | Knobs |
